🧾 Overview

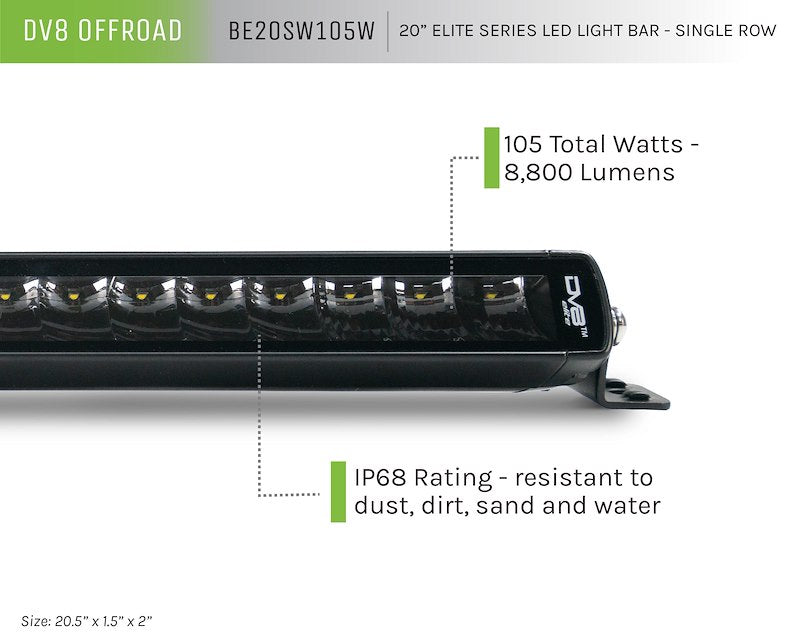

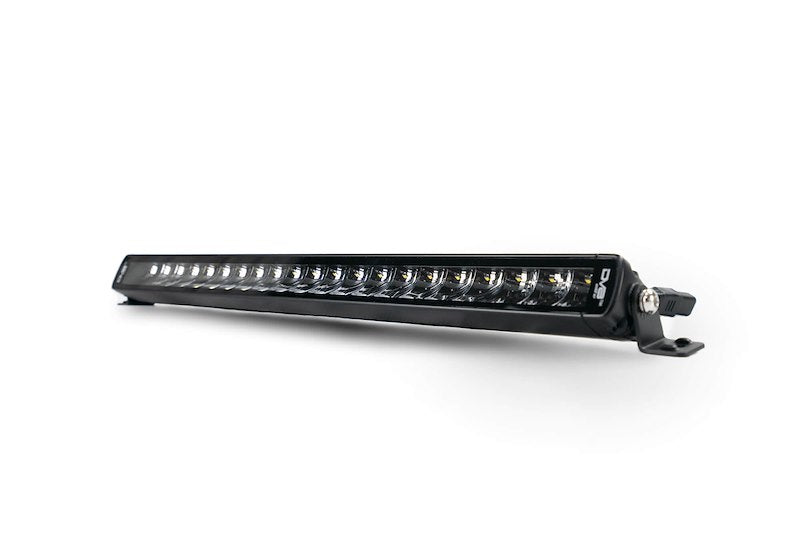

The DV8 Offroad Elite Series 20-Inch LED Light Bar is a high-output, low-profile lighting solution designed for bumper, hood, or auxiliary mounting applications. Ideal as supplemental lighting or paired as a primary trail lighting setup, this single-row light bar delivers powerful, focused illumination in a sleek, bezel-less housing.
Powered by high-performance OSRAM LEDs, this light bar produces up to 8,800 raw lumens with a precisely engineered indirect reflector that reduces glare and hotspots while maintaining excellent beam control. Integrated heat fins help manage thermal load for consistent output and long component life.
The shatterproof, UV-resistant lens is designed to shed water, ice, and debris, while an IP68 waterproof rating ensures reliable performance in dust, dirt, sand, rain, and water crossings. Built for off-road abuse, the Elite Series light bar provides dependable illumination in harsh environments.
✔ 20" single-row LED light bar
✔ OSRAM LEDs with high-output performance
✔ Bezel-less housing with integrated heat fins
✔ IP68 waterproof & dustproof rating
🛠 Installation
- Bolt-on installation

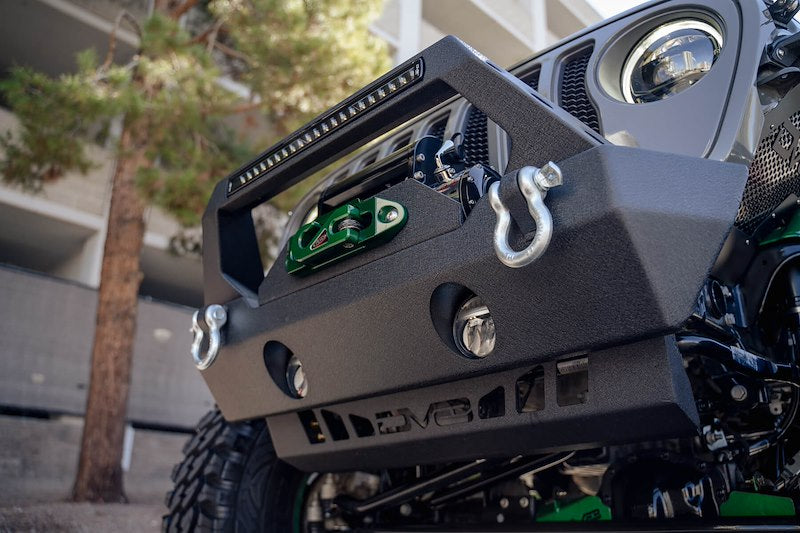

- Universal mounting applications (bumper, hood, auxiliary mounts)
📌 Specs
📌 Key Features & Benefits
- Designed for off-road and auxiliary lighting applications

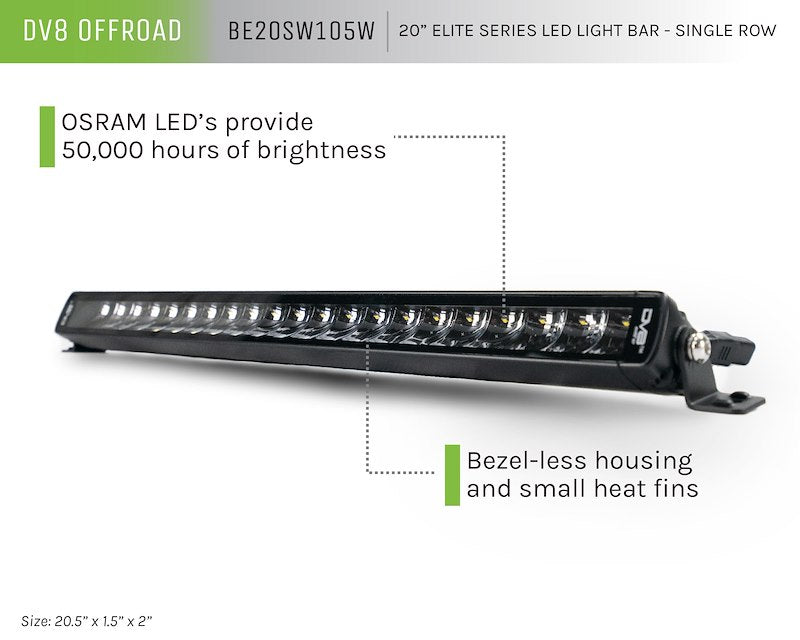

- High-performance OSRAM LEDs rated for 50,000 hours of use
- Produces up to 8,800 raw lumens
- 105 watts total power output
- Combo beam pattern for balanced distance and spread
- Indirect reflector reduces glare and hotspots
- Bezel-less housing for a clean, modern appearance
- Integrated heat fins for improved thermal management
- Shatterproof, UV-resistant lens
- IP68 rated for resistance to dust, dirt, sand, and water
📐 Specifications
- Light Bar Size: 20-Inch (Single Row)
- Overall Dimensions: 20.5" L × 1.5" H × 2.0" D
- LED Type: OSRAM CSHP 21
- Power Output: 105W
- Raw Lumens: 8,820
- Effective Lumens: 3,908
- Beam Pattern: Combo
- Lux @ 10m: 2,043
- Voltage: 12V / 24V
- Current Draw (12V / 24V): 3.98A / 2.03A
- Lens Material: Shatterproof UV-Resistant
- Housing: Bezel-less with heat fins
- Ingress Protection: IP68
- Sold As: Each

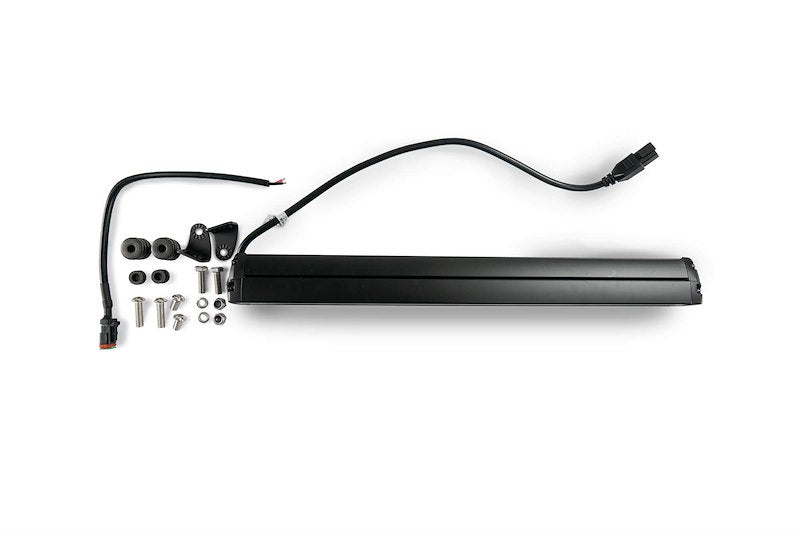

📦 What’s Included
- DV8 Offroad Elite Series 20-inch LED light bar
- Mounting hardware
🛡 Warranty
- 1-Year Manufacturer Warranty
- Warranty coverage provided by DV8 Offroad
⚠️ Fitment Notes
- Universal Fitment
- Compatible with most off-road vehicles equipped with appropriate mounting locations
⚠️ Fitment Notes
- Mounting brackets or vehicle-specific mounts may be required depending on application
- Wiring and switch sold separately unless otherwise noted
