🧾 Overview
The ICON Vehicle Dynamics Stage 1 Suspension System for the Toyota Land Cruiser 250 Series is engineered to dramatically improve ride quality, wheel travel, and vehicle control both on-road and off-road. Designed for drivers who demand performance without sacrificing comfort, this system enhances stability, damping consistency, and confidence across a wide range of terrain.
The Stage 1 system features ICON 2.5 Series front coilover shocks with internal reservoirs for improved cooling and consistent performance under sustained use. Adjustable ride height from 1.25–3 inches allows fitment of larger, more aggressive tires while maintaining proper suspension geometry. A front differential drop improves CV axle operating angles and helps maximize available suspension travel on 4WD models.
Out back, dual-rate rear coil springs provide a smooth, compliant unloaded ride while delivering increased bottom-out resistance when carrying gear or navigating uneven terrain. Matched ICON 2.0 Aluminum Series rear shocks balance the system front to rear, resulting in predictable handling and controlled performance tailored specifically to the Land Cruiser 250 platform.
✔ Improved ride quality and vehicle control
✔ Adjustable 1.25–3" front lift for larger tires
✔ Increased wheel travel and suspension performance
✔ Dual-rate rear springs for comfort and load support
🛠 Installation
- Bolt-on installation
- No welding required
- Front differential drop required on 4WD models
- Professional installation recommended
- ADAS recalibration required after installation
📌 Specs
- Vehicle-specific tuned front and rear shocks
- Adjustable front lift range from 1.25–3 inches
- Increased wheel travel and improved damping control
- Internal reservoir coilovers for superior cooling
- Dual-rate rear springs balance comfort and load capacity
- CAD-plated shock bodies resist corrosion
- 6061 aircraft-grade aluminum CNC-machined components
📌 Technical Highlights
- Front Lift Height: Adjustable 1.25–3 inches
- Rear Lift Height: 2 inches
- Shock Type (Front): ICON 2.5 Series internal reservoir coilovers
- Shock Type (Rear): ICON 2.0 Aluminum Series internal reservoir
- Rear Spring Type: Dual-rate coil springs
- Wheel Fitment: OEM wheels supported
- Tire Fitment: Up to 33" tires (larger tires may require trimming)

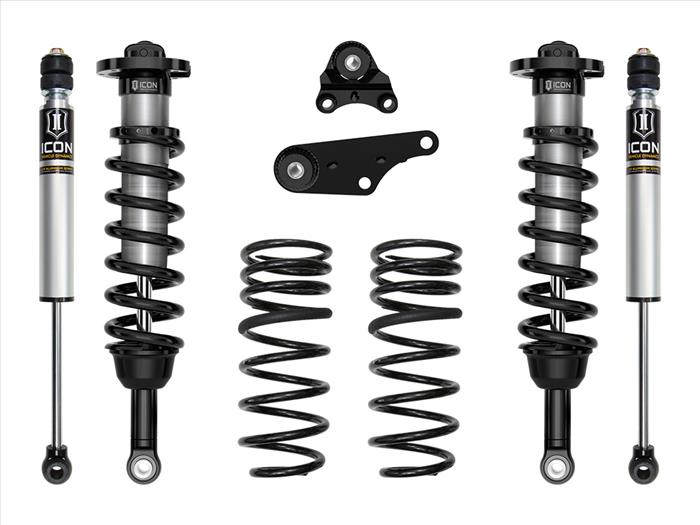

📌 What’s Included
- ICON 2.5 Series front coilover shocks with internal reservoirs
- Dual-rate rear coil spring kit (2" rear lift)
- ICON 2.0 Aluminum Series rear shocks with internal reservoirs
- Front differential drop kit
- Polyurethane differential mounting bushings
- All required mounting hardware
⚠️ Fitment Notes
- Toyota Land Cruiser 250 Series (2024-2025)
- Important Notes:
- Not compatible with Adaptive Variable Suspension (AVS)
- ADAS recalibration required after installation
- Lift height varies with added vehicle weight
- ICON Delta Joint Pro UCAs recommended for alignment above 2" lift
