🧾 Overview

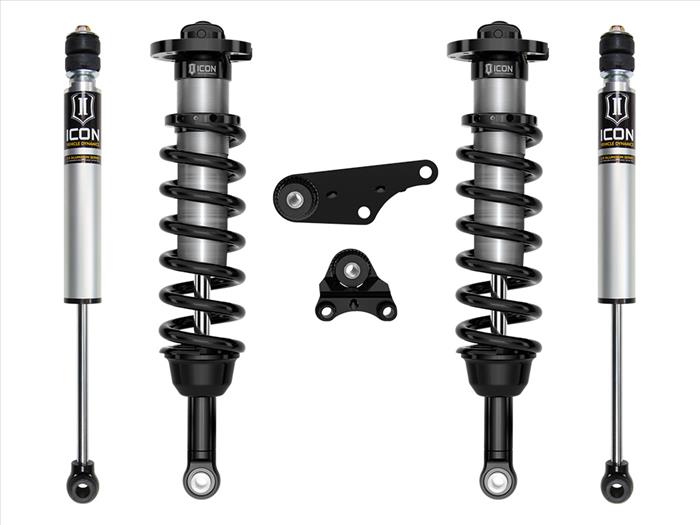

The ICON Stage 1 Suspension System for the 2024–2025 Toyota Tacoma is engineered to deliver increased wheel travel, improved damping control, and enhanced ride quality both on-road and off-road. Designed with performance-focused drivers in mind, this system optimizes suspension geometry while maintaining reliability for daily driving and aggressive trail use.
This Stage 1 system features vehicle-specific tuned ICON 2.5 Series coilover shocks with internal reservoirs and ICON-engineered coil springs, providing exceptional cooling performance and precise suspension control throughout the full range of travel. The front coilovers are height adjustable from 1.25" to 3" of lift over stock, allowing fitment of larger, more aggressive wheel and tire combinations.
To maximize front suspension travel and prevent CV bind, the system includes a front differential drop kit paired with ICON-specific coilover lengths. Polyurethane differential mounting bushings replace the soft factory bushings to reduce differential movement under load. Rear suspension performance is balanced with ICON 2.0 Aluminum Series internal reservoir shocks, valved specifically for the 2024–2025 Tacoma.
✔ Adjustable 1.25"–3" front lift
✔ ICON 2.5 Series front coilovers with internal reservoirs
✔ Differential drop kit to reduce CV angles
✔ Balanced front and rear performance tuning
🛠 Installation
- Bolt-on installation using factory mounting locations
- Front coilovers are height adjustable
- Professional installation recommended
- Wheel alignment required after installation
📌 Specs
- Key Features & Benefits
- Designed specifically for 2024–2025 Toyota Tacoma
- Adjustable front lift height from 1.25" to 3" over stock
- ICON 2.5 Series coilovers with internal reservoirs for improved cooling
- Vehicle-specific valving for superior ride quality and control
- Differential drop kit reduces CV angles and prevents bind
- Polyurethane differential bushings limit movement under load
- ICON 2.0 Aluminum Series rear shocks balance front suspension performance
- Improved handling, stability, and off-road capability
📐 Specifications
- Vehicle Application: Toyota Tacoma
- Model Years: 2024–2025
- Front Lift Height: Adjustable 1.25"–3"
- Rear Lift Range: 0"–1"
- Front Shocks: ICON 2.5 Series VS Internal Reservoir Coilovers
- Rear Shocks: ICON 2.0 Aluminum Series VS Internal Reservoir
- Differential Drop: Included
- Sold As: Complete System
📦 What’s Included
- (1) ICON 2.5 Series VS internal reservoir front coilover kit – vehicle-specific tuned
- (1) ICON front differential drop kit
- Polyurethane differential mounting bushings
- (2) ICON 2.0 Aluminum Series VS internal reservoir rear shocks (0–1" rear lift range)
- Required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty
- Warranty coverage provided by ICON Vehicle Dynamics
⚠️ Fitment Notes
- Toyota Tacoma (2024–2025)
⚠️ Fitment Notes
- OEM wheels and tires: Compatible
- Recommended aftermarket wheels:
- ICON Alloys 17x8.5 with 5.75" backspacing / +25mm offset
- ICON Alloys 18x9 with 6.00" backspacing / +25mm offset
- Recommended tire size:
- 33" x 11.50"
- Larger tires may fit but may require trimming and modifications
- Shocks are fully serviceable
- Advertised lift heights are based on a stock-equipped vehicle
- Additional vehicle weight from accessories will alter lift height
- Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- Advanced Driver Assistance Systems (ADAS) recalibration required after installation
- Will not fit Tacoma submodels equipped with rear leaf springs
- 4WD models require front differential drop kit (Part #55160)
- ICON Delta Joint Pro front upper control arms recommended for proper alignment above 2" of lift
- Included rear shocks are compatible with 0"–1" of rear lift
- Configured for 4WD models
- On 2WD models, the differential drop kit is not required
- Other system components may be used individually
- 2WD-specific kits coming soon
