🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System with Triple-Rate Rear Springs for the 2024–2025 Toyota Tacoma is engineered for serious drivers who demand maximum performance, control, and ride quality both on- and off-road. ICON’s focus on increased wheel travel and advanced damping translates into confident handling, improved comfort, and superior capability across mixed terrain.
This Stage 2 system features vehicle-specific tuned ICON 2.5 Series coilovers with internal reservoirs and ICON-engineered front coil springs, providing exceptional cooling and consistent performance. The adjustable front coilovers deliver 1.25–3 inches of lift over stock, allowing fitment of larger, more aggressive tires. A front differential drop kit and polyurethane diff bushings maximize available front suspension travel on 4WD models while reducing CV bind and limiting differential movement under load.
Up front, billet aluminum upper control arms with the Delta Joint PRO correct geometry, add on-vehicle caster/camber adjustment, and eliminate bind through full bump and droop. In the rear, triple-rate coil springs deliver a compliant ride and softer droop with a firmer overload rate for excellent bottoming resistance, adding ~0.5" of rear lift. The system is rounded out with ICON 2.0 Aluminum Series internal reservoir rear shocks, tuned to balance the truck from front to rear.
✔ Stage 2 performance suspension with triple-rate rear springs
✔ Adjustable 2.5 Series front coilovers (1.25–3" lift)
✔ Billet UCAs with Delta Joint PRO (90° articulation)
✔ Front diff drop maximizes travel and CV angles on 4WD
✔ Improved on-road comfort with enhanced off-road control
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. ADAS recalibration required after installation. Professional installation and alignment are strongly recommended for optimal performance and handling.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned shocks for superior damping and control
- 2.5 Series internal reservoir coilovers improve cooling and fade resistance
- Adjustable front lift range from 1.25–3" over stock
- Front differential drop improves CV joint operating angles on 4WD models
- Billet aluminum UCAs provide strength and on-vehicle caster/camber adjustment
- Delta Joint PRO is serviceable/rebuildable with 90° total articulation
- Triple-rate rear coils improve ride quality and bottoming resistance with ~0.5" lift
- 2.0 Aluminum Series internal reservoir rear shocks balance performance
- CNC-machined 6061 aircraft-grade aluminum components
- Corrosion-resistant CAD-plated shock bodies
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 1.25–3.0 inches (adjustable)
- Rear Lift: ~0.5 inch (triple-rate coils)
- Shock Type (Front): 2.5 Series coilovers w/ internal reservoirs
- Shock Type (Rear): 2.0 Aluminum Series internal reservoir
- Upper Control Arms: Billet aluminum with Delta Joint PRO
- Vehicle Platform: 2024–2025 Toyota Tacoma
- Drivetrain: 4WD (2WD compatible without diff drop)
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- Factory Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" with 5.75" backspacing / 25mm offset
- 18x9" with 6.00" backspacing / 25mm offset
- Recommended Tires:
- 33" x 11.50"
- (Larger tires may require trimming and additional modifications)

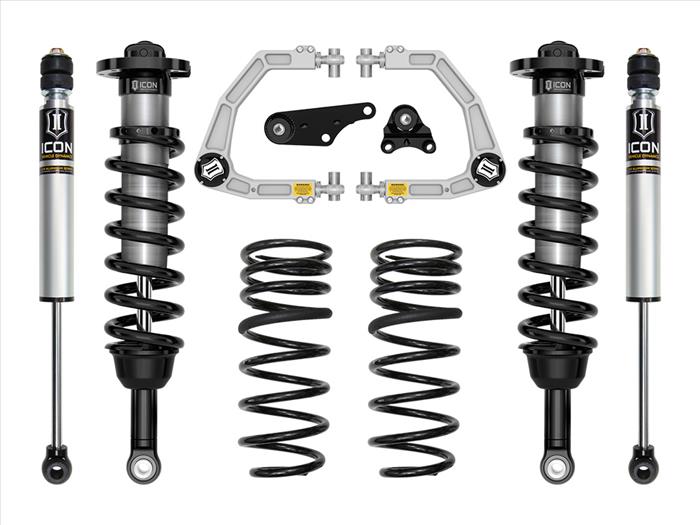

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 Series internal reservoir coilover kit (PN 58680)
- Billet aluminum upper control arm kit with Delta Joint PRO (PN 58552DJ)
- Front differential drop kit (PN 55160)
- Rear Components
- 2.0 Aluminum Series internal reservoir rear shocks – 0–1" lift (PN 56518) x2
- Triple-rate rear coil spring kit – ~0.5" lift (PN 51213)
- Additional
- Polyurethane differential mounting bushings
- All required mounting hardware
🛡 Warranty
- ICON Delta Joint PRO: Manufacturer-backed warranty
- ICON fabricated components & coil springs: Lifetime warranty against breakage or manufacturer defect
- Shocks: Fully serviceable and rebuildable
⚠️ Fitment Notes
- Toyota Tacoma (2024–2025)
⚠️ Fitment Notes
- Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles or Tacoma sub-models with rear leaf springs. ADAS recalibration is required after installation. Rear shocks are compatible with 0–1" rear lift. 4WD models require the included front differential drop; 2WD models do not require the diff drop.
