🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2024–2025 Toyota Tacoma is engineered for drivers who demand maximum on- and off-road performance from their truck. ICON’s primary focus is increasing wheel travel and damping control, resulting in superior ride quality, stability, and confidence across a wide range of terrain.
This Stage 2 system centers around vehicle-specific tuned ICON 2.5 Series coilover shocks with internal reservoirs and ICON-engineered coil springs, delivering consistent damping and excellent heat management. The adjustable front coilovers provide 1.25–3 inches of lift over stock, allowing for larger, more aggressive wheel and tire setups. To maximize available suspension travel and prevent CV bind on 4WD models, the system includes a front differential drop kit with upgraded polyurethane differential mounting bushings.
Also included are ICON billet aluminum upper control arms featuring the all-new Delta Joint PRO, which corrects front-end geometry, increases caster and camber adjustment, and allows full bump and droop travel without bind. Rear performance is balanced with ICON 2.0 Aluminum Series internal reservoir shocks, tuned specifically for the 2024–2025 Tacoma.
✔ Stage 2 performance suspension system for 4th-gen Tacoma
✔ Adjustable 2.5 Series front coilovers with internal reservoirs
✔ 1.25–3" front lift height over stock
✔ Billet aluminum UCAs with Delta Joint PRO
✔ Differential drop kit maximizes CV angle and wheel travel
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. ADAS recalibration is required after installation. Professional installation and alignment are strongly recommended for optimal performance and handling.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned shocks deliver superior damping and control
- 2.5 Series coilovers with internal reservoirs improve cooling and fade resistance
- Adjustable front lift range from 1.25–3 inches over stock
- Front differential drop improves CV joint operating angles on 4WD models
- Billet aluminum UCAs increase strength and provide on-vehicle caster/camber adjustment
- Delta Joint PRO offers 90° of total articulation with serviceable, rebuildable design
- 2.0 Aluminum Series rear shocks balance front and rear performance
- CNC-machined 6061 aircraft-grade aluminum components
- Corrosion-resistant CAD-plated shock bodies for long-term durability
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 1.25–3.0 inches (adjustable)
- Rear Lift Compatibility: 0–1 inch
- Shock Type (Front): 2.5 Series coilovers with internal reservoirs
- Shock Type (Rear): 2.0 Aluminum Series internal reservoir
- Upper Control Arms: Billet aluminum with Delta Joint PRO
- Vehicle Platform: 2024–2025 Toyota Tacoma
- Drivetrain: 4WD (2WD compatible without diff drop)
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- Factory Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" with 5.75" backspacing / 25mm offset
- 18x9" with 6.00" backspacing / 25mm offset
- Recommended Tire Size:
- 33" x 11.50"
- (Larger tires may require trimming and additional modifications)

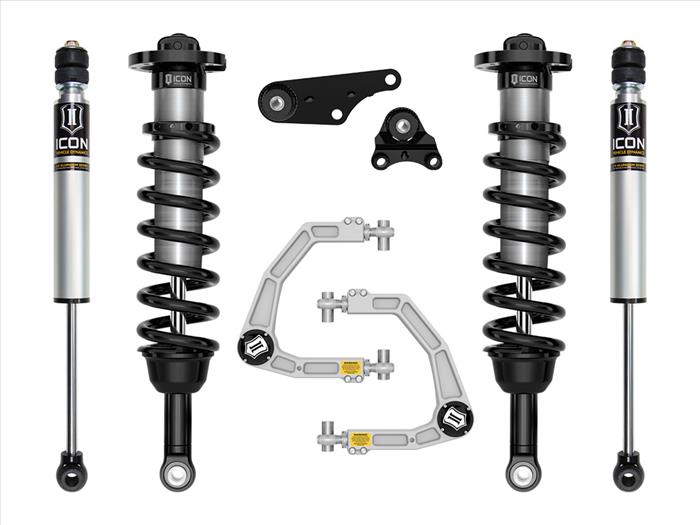

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 Series internal reservoir coilover kit (PN 58680)
- Billet aluminum upper control arm kit with Delta Joint PRO (PN 58552DJ)
- Front differential drop kit (PN 55160)
- Rear Components
- 2.0 Aluminum Series internal reservoir rear shocks – 0–1" lift (PN 56518) x2
- Additional
- Polyurethane differential mounting bushings
- All required mounting hardware
🛡 Warranty
- ICON Delta Joint PRO: Manufacturer-backed warranty
- ICON fabricated components and coil springs: Lifetime warranty against breakage or manufacturer defect
- Shocks: Fully serviceable and rebuildable
⚠️ Fitment Notes
- Toyota Tacoma (2024–2025)
⚠️ Fitment Notes
- Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles or Tacoma sub-models equipped with rear leaf springs. Advanced Driver Assistance Systems (ADAS) recalibration is required after installation. Rear shocks are compatible with 0–1 inch of rear lift. 4WD models require the included front differential drop kit; 2WD models do not require the diff drop.
