🧾 Overview

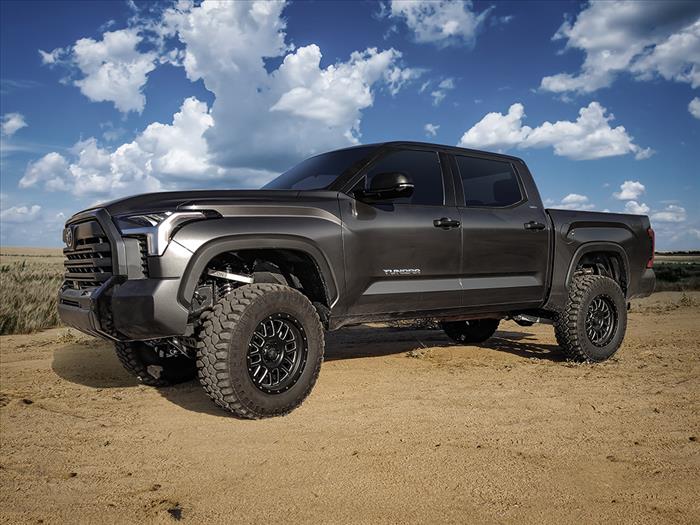

The ICON 6" Stage 2 Suspension System for the 2022–2024 Toyota Tundra is a high-performance lift solution engineered to dramatically increase wheel travel, improve suspension geometry, and support aggressive tire fitment—while maintaining factory track width and drivability. Built around ICON’s 2.5 Series front coilovers with internal reservoirs and matched rear shocks, this system delivers superior damping, control, and reliability on- and off-road.
Designed to optimize geometry and nearly eliminate factory bump steer, the system features high-clearance crossmembers, heavy-duty steering knuckles with an integrated 4" drop, tubular upper control arms with ICON’s Delta Joint Pro, and supporting rear components to reduce bind and maintain balance. The result is a capable, durable lift system optimized for 37" tires with full articulation.
✔ Up to 40% increase in front wheel travel
✔ Optimized for 37" tires with full articulation
✔ Maintains factory track width
✔ Near-elimination of factory bump steer
✔ Robust, serviceable components for long-term performance
🛠 Installation
- Bolt-on installation using supplied crossmembers and brackets. No cutting or welding required. ADAS recalibration and alignment are required after installation.
📌 Specs
- Key Features & Benefits
- 2.5 Series front coilovers with internal reservoirs for superior damping and control
- Adjustable front ride height from 5–6" over stock (up to 6" with only a 4" crossmember drop)
- Single-piece high-strength ductile iron steering knuckles with built-in 4" drop
- High-clearance front crossmembers and skid plate CNC laser-cut and brake-formed from 1/4" steel
- Tubular upper control arms with Delta Joint Pro for caster correction and durability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90° of total articulation
- High-angle outer tie rods with durable, greaseable metal-on-metal ends
- Included sway bar drop brackets reduce OE link bind
- Front and rear heavy-duty bump stop brackets
- 2.0 Aluminum Series rear shocks tuned to balance the front coilovers
- Rear coil spring spacer kit retains factory rear coils while providing lift
- Improved rear sway bar links, mounts, and rear track bar bracket to reduce bind
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Lift Height: 6.0 inches
- Front Shocks: 2.5 Series internal reservoir coilovers
- Rear Shocks: 2.0 Aluminum Series internal reservoir
- Upper Control Arms: Tubular with Delta Joint Pro
- Wheel Requirement: Minimum 20" diameter
- Recommended Tire Size: 37" x 12.50"
- Installation Type: Bolt-on (professional installation recommended)

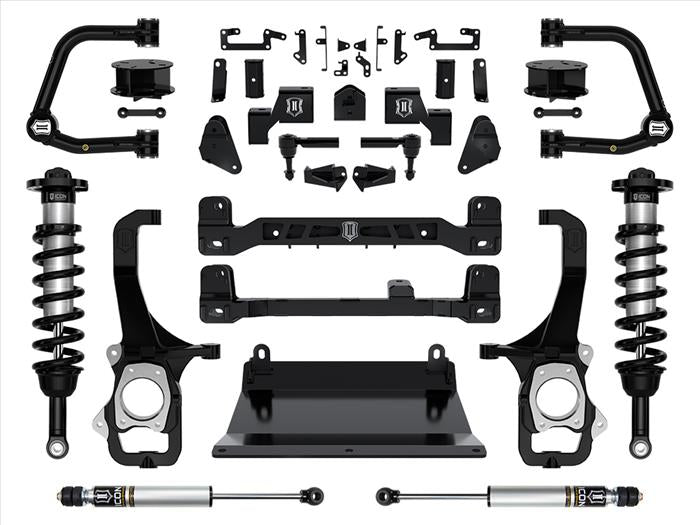

📦 What’s Included (What’s in the Box)
- Front Components
- Front box kit 1 & 2 (crossmembers and brackets)
- 2.5 Series internal reservoir front coilover kit
- Single-piece ductile iron steering knuckles (4" drop)
- High-clearance front skid plate
- Sway bar drop brackets
- High-angle outer tie rods
- Tubular upper control arms with Delta Joint Pro
- Rear Components
- Rear box kit
- Rear coil spring spacer kit
- 2.0 Aluminum Series internal reservoir rear shocks
- Rear sway bar links and mounts
- Rear track bar bracket
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed limited lifetime warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable.
⚠️ Fitment Notes
- Toyota Tundra (2022–2024)
⚠️ Fitment Notes
- Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). Minimum 20" wheel diameter required. ADAS recalibration is required after installation. Professional installation and alignment are recommended.
