🧾 Overview

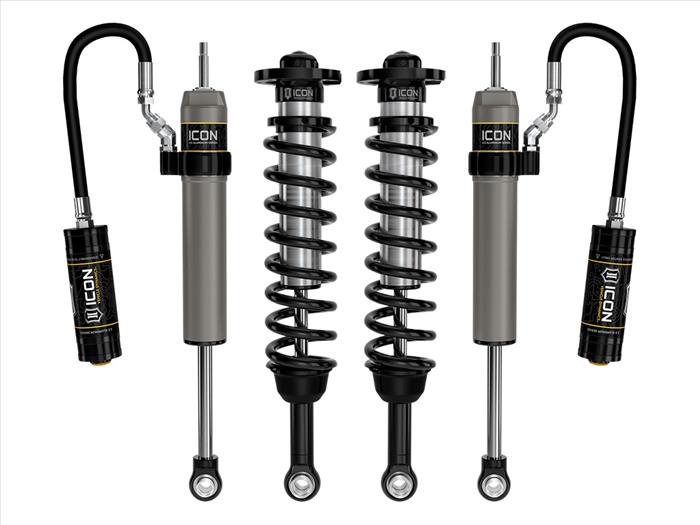

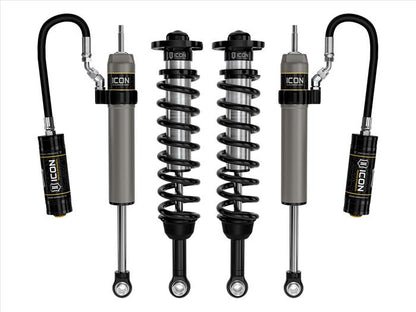

The ICON Stage 1 Suspension System for the 2022–2023 Toyota Land Cruiser 300 Series is designed to enhance off-road capability and vehicle control while preserving the refined ride quality expected from the LC300 platform. Featuring adjustable ICON 2.5 Series front coilovers and matched 2.5 Aluminum Series rear remote reservoir shocks, this system delivers increased wheel travel, improved damping, and balanced performance on- and off-road.
With up to 1–3 inches of front lift and vehicle-specific shock tuning, Stage 1 is an ideal upgrade for Land Cruiser owners looking to run larger tires, reduce body roll, and gain confidence in demanding terrain—without compromising daily drivability.
✔ Stage 1 suspension system for LC300
✔ Adjustable 2.5 Series front coilovers (1–3" lift)
✔ 2.5 Aluminum Series rear remote reservoir shocks
✔ Improved ride quality, control, and wheel travel
✔ Balanced street comfort with off-road performance
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Professional installation and post-install alignment are recommended for optimal performance and handling.
📌 Specs
- Key Features & Benefits
- Height-adjustable 2.5 Series front coilovers allow 1–3" of lift
- Vehicle-specific shock length and valving maximize usable travel
- Larger 2.5" shock bodies improve damping control and heat capacity
- Rear remote reservoirs maintain consistent performance under load
- Internal Bump Zone adds additional damping force during hard bottom-outs
- Bolt-on design with no cutting or welding required
- Fully rebuildable and revalvable shocks for long-term serviceability
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Front Lift Height: 1–3 inches (adjustable)
- Rear Lift Compatibility: 0–2 inches

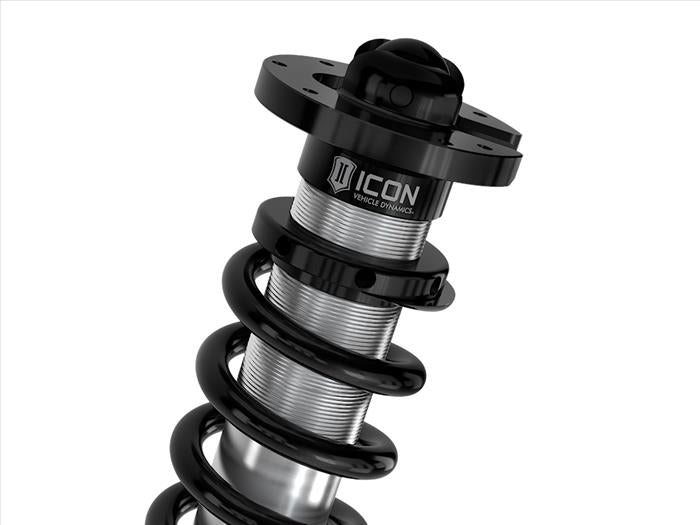

- Shock Type (Front): 2.5 Series coilovers with internal reservoirs

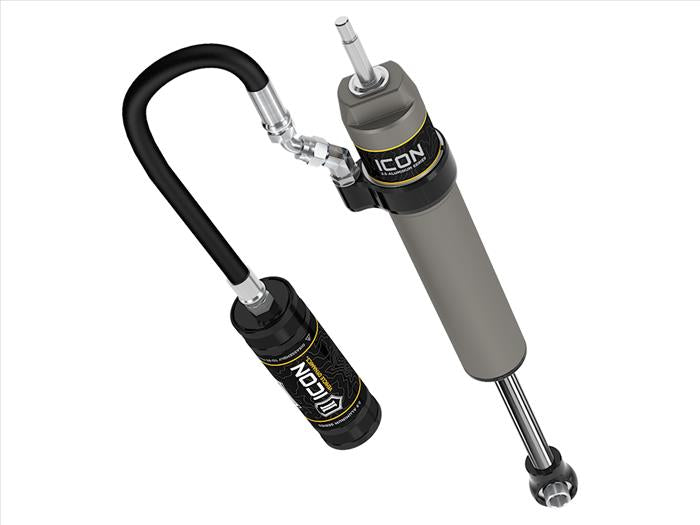

- Shock Type (Rear): 2.5 Aluminum Series remote reservoir shocks
- Vehicle Platform: Toyota Land Cruiser 300 Series
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- Factory Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" w/ 5.75" backspacing / 25mm offset
- 18x9" w/ 6.00" backspacing / 25mm offset
- Recommended Tires:
- 35" x 12.50"
- (Larger tires may require trimming and additional modifications)
📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 Series internal reservoir front coilover kit (PN 58661)
- Rear Components
- 2.5 Aluminum Series remote reservoir rear shocks – 0–2" lift (PN 57827P)
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
- Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Toyota Land Cruiser 300 Series (2022–2023)
⚠️ Fitment Notes
- Not compatible with vehicles equipped with load-leveling rear height control air suspension. Rear shocks are compatible with 0–2 inches of rear lift. Professional installation and alignment are recommended.
