🧾 Overview

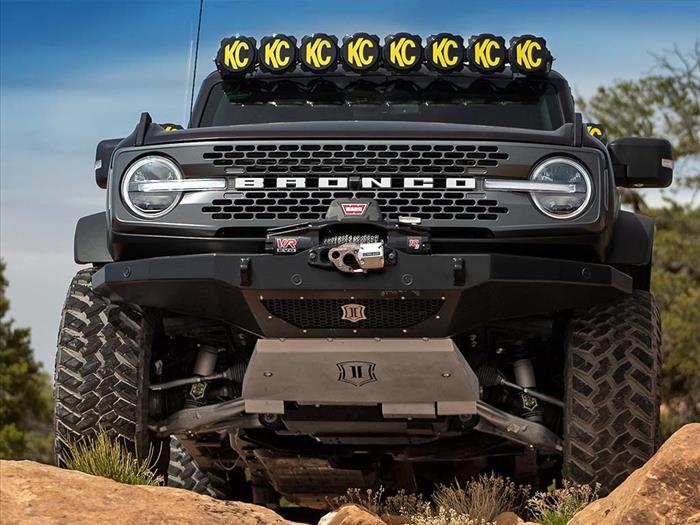

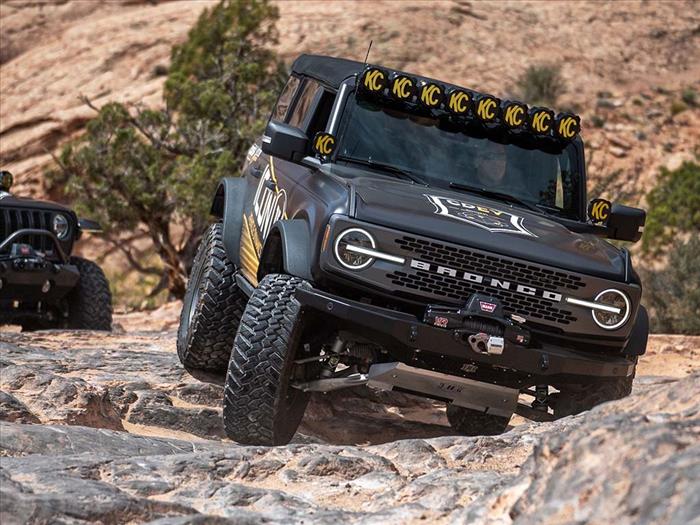

The ICON Stage 1 Suspension System for the 2021–2023 Ford Bronco equipped with the factory HOSS 2.0 suspension package delivers increased wheel travel, improved damping, and superior ride quality on- and off-road—while retaining factory coil springs and hardware. Built around ICON’s 2.5 EXP Series coilovers, this system provides adjustable lift without introducing ball joint bind or compromising suspension geometry.

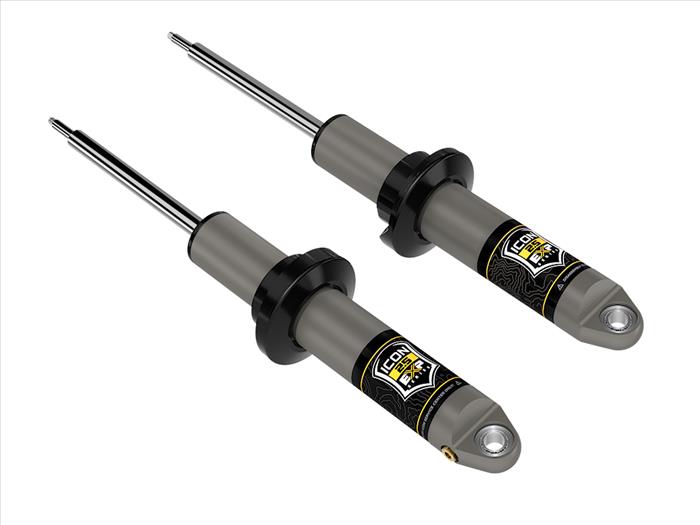

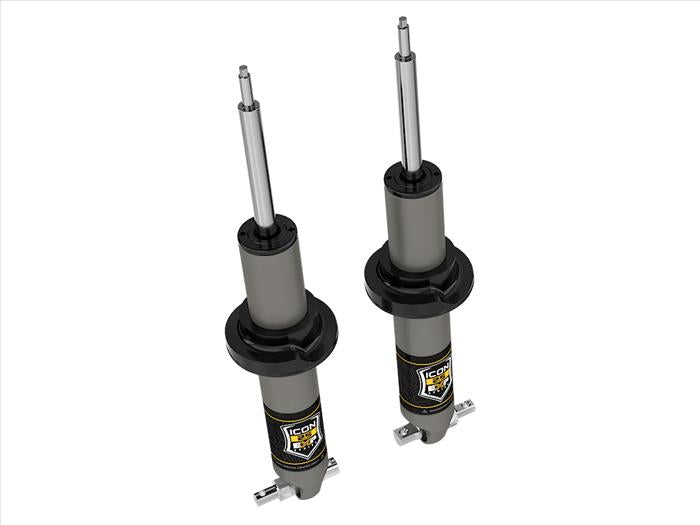

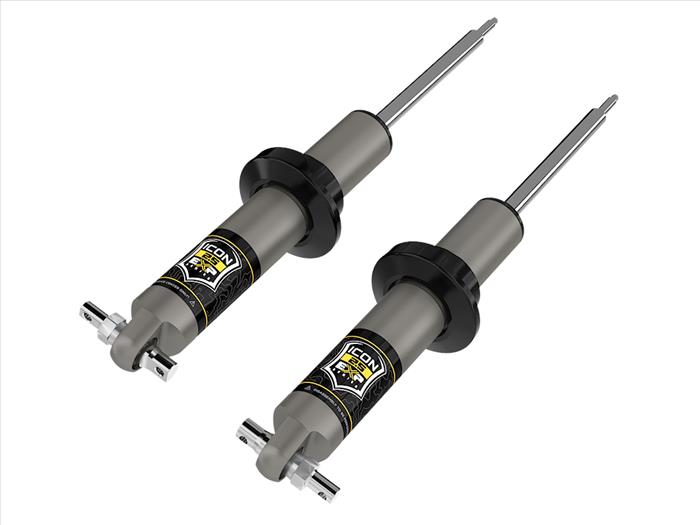

The EXP Series combines a fully rebuildable 2.5-inch aluminum shock body with snap-ring ride height adjustment, allowing easy tuning from 0–2" of front lift and 0–1.75" of rear lift over stock. Vehicle-specific valving and increased oil volume improve heat dissipation and consistency under demanding conditions, making this an ideal upgrade for Bronco owners seeking performance and reliability with a straightforward bolt-on install.
✔ Designed exclusively for Bronco HOSS 2.0 suspension
✔ Adjustable lift using snap-ring grooves
✔ Retains factory coils and mounts
✔ Fully rebuildable and re-tunable shocks
✔ 100% bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting locations and hardware. No cutting or welding required. Alignment is required after installation to ensure proper handling and tire wear.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned 2.5 EXP Series shocks for superior damping and control
- Adjustable ride heights via snap-ring grooves
- Front: 0–2.0" lift
- Rear: 0–1.75" lift
- Utilizes factory coil springs and coil hardware
- Inverted shaft-up design with 7/8" induction-hardened, chrome-plated shafts
- One-piece impact-extruded aluminum shock bodies with hard anodized finish
- Digressive piston design optimized for onand off-road ride quality
- Increased piston size and oil volume improve heat dissipation
- PTFE-lined spherical bearings for longevity and reduced deflection
- Fully rebuildable and re-valvable by qualified shock technicians
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Front Lift Height: 0–2.0 inches (adjustable)
- Rear Lift Height: 0–1.75 inches (adjustable)
- Shock Series: 2.5 Aluminum Series EXP
- Shock Orientation: Shaft-up (retains OE mounts)
- Installation Type: Bolt-on
📦 What’s Included (What’s in the Box)
- Front Components

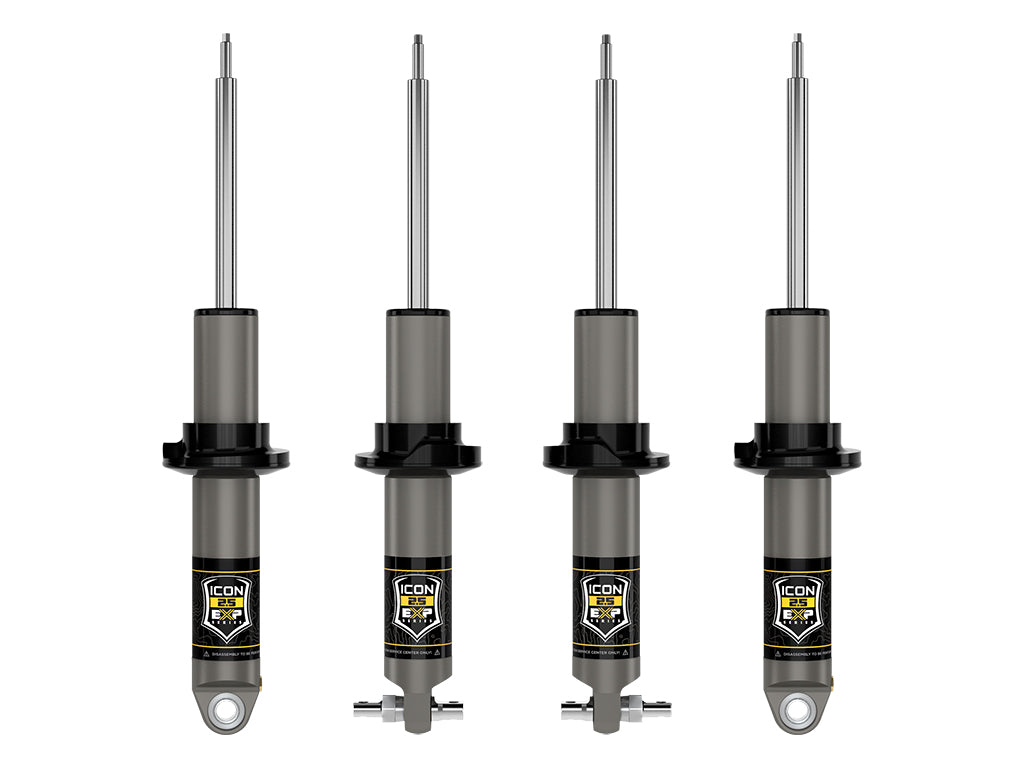

- (2) 2.5 EXP Series front coilovers – HOSS 2.0 specific
- Rear Components
- (2) 2.5 EXP Series rear coilovers – HOSS 2.0 specific
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed limited lifetime warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Models equipped with factory HOSS 2.0 Suspension Package
- (HOSS 2.0 is identified by yellow OE shock bodies)
⚠️ Fitment Notes
- Only compatible with Broncos equipped with HOSS 2.0 suspension. Lift heights above 1.5" may require aftermarket front upper control arms to maintain proper alignment. Not compatible with Bronco Raptor. Professional installation and alignment are recommended.
