🧾 Overview
The ICON Stage 2 Suspension System for the 2021–2023 Ford Bronco equipped with the factory HOSS 2.0 suspension package builds on ICON’s proven EXP Series coilovers by adding tubular upper control arms for improved alignment control and durability. This system delivers increased wheel travel, superior damping, and adjustable lift while retaining factory coil springs and mounts for a clean, bolt-on upgrade.
At the core are ICON’s 2.5 EXP Series coilovers front and rear, featuring snap-ring ride height adjustment and vehicle-specific tuning. Adjustable lift ranges from 1.375–3.0" in the front and 1.5–2.25" in the rear, depending on setup, with enhanced heat dissipation and long-lasting performance for demanding on- and off-road use.
✔ Designed exclusively for Bronco HOSS 2.0 suspension
✔ Adjustable lift with snap-ring tuning
✔ Retains factory coils and hardware
✔ Tubular UCAs for caster correction and drivability
✔ Fully rebuildable, bolt-on system
🛠 Installation
- Direct bolt-on installation using factory mounting locations and hardware. No cutting or welding required. Alignment is required after installation to ensure proper handling and tire wear.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned 2.5 EXP Series shocks for superior damping and control
- Adjustable ride heights via snap-ring grooves
- Front: 1.375–3.0" lift
- Rear: 1.5–2.25" lift
- Utilizes factory coil springs and coil hardware
- Inverted shaft-up design with 7/8" induction-hardened, chrome-plated shafts
- One-piece, impact-extruded, hard-anodized aluminum shock bodies
- Digressive piston design optimized for ride quality onand off-road
- Increased oil volume and piston size for improved heat dissipation

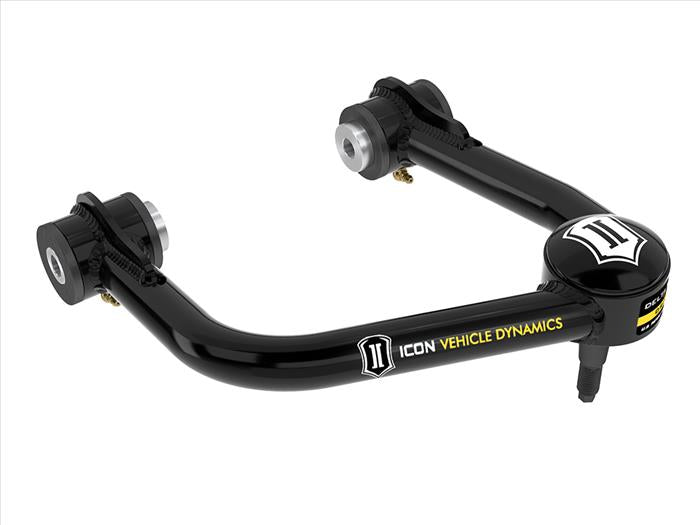

- Tubular upper control arms provide caster correction and increased durability
- UCAs feature patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90° articulation
- PTFE-lined spherical bearings for longevity and minimal deflection
- 100% bolt-on installation with no cutting or welding
- Fully rebuildable and re-valvable shocks
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 1.375–3.0 inches (adjustable)
- Rear Lift Height: 1.5–2.25 inches (adjustable)
- Shock Series: 2.5 Aluminum Series EXP
- Upper Control Arms: Tubular with Delta Joint Pro
- Shock Orientation: Shaft-up (retains OE mounts)
- Installation Type: Bolt-on

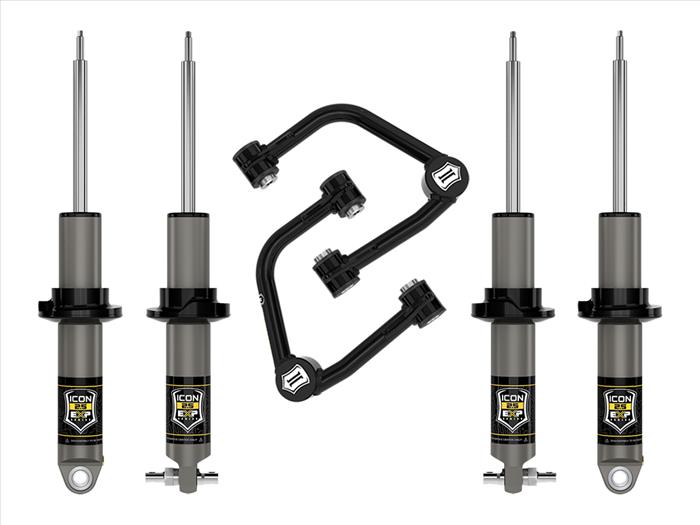

📦 What’s Included (What’s in the Box)
- Front Components

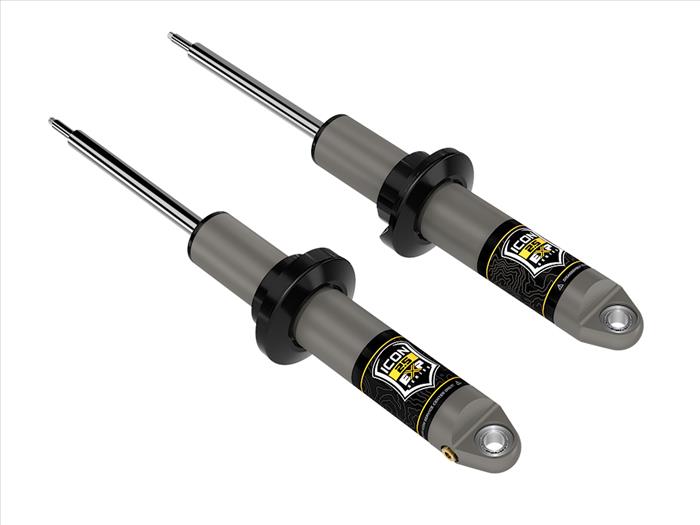

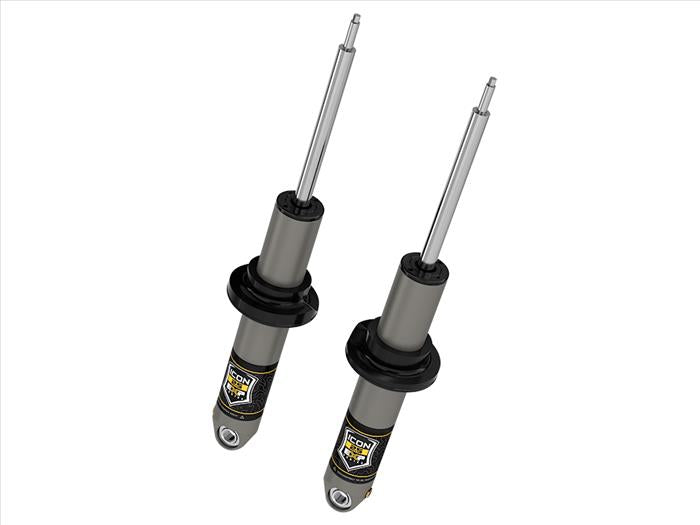

- (2) 2.5 EXP Series front coilovers – HOSS 2.0 specific
- Tubular upper control arms with Delta Joint Pro
- Rear Components

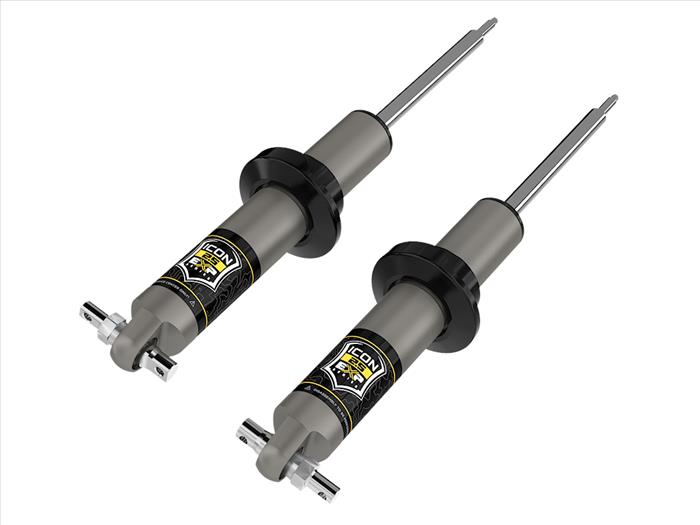

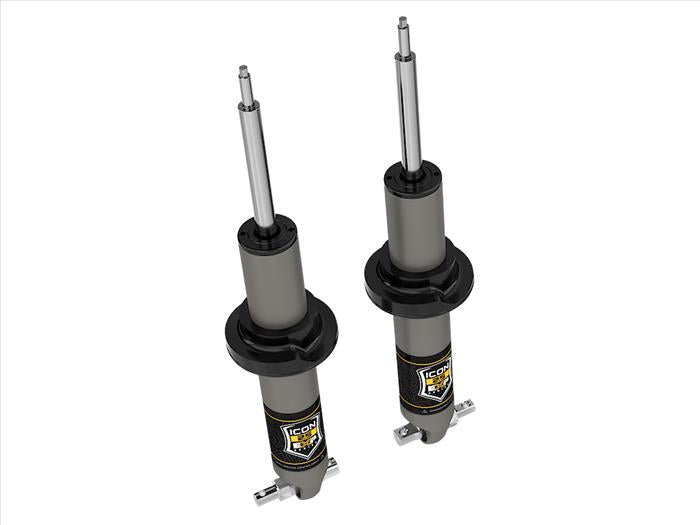

- (2) 2.5 EXP Series rear coilovers – HOSS 2.0 specific
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed limited lifetime warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Models equipped with factory HOSS 2.0 Suspension Package
- (HOSS 2.0 identified by yellow OE shock bodies)
⚠️ Fitment Notes
- Compatible only with HOSS 2.0 suspension. Not compatible with Bronco Raptor. Two-door models may sit taller than four-door models. Professional installation and alignment are recommended after installation.
