🧾 Overview
The ICON Stage 8 Suspension System is the most advanced suspension package available for 2021–2023 Ford Bronco models equipped with the Sasquatch Package, combining premium billet suspension components with ICON’s electronically controlled CDEV (Compression Damping Electronic Valve) technology. Designed for aggressive off-road use and heavily equipped Broncos, this system delivers active, real-time damping control with increased rear load capacity.
At the core of the system are ICON 2.5 VS remote reservoir coilovers with CDEV, paired with ICON Intelligent Control (IIC). Using onboard sensors, the system continuously monitors chassis movement and terrain inputs, making near-instant compression damping adjustments at each shock. Once configured through the IIC mobile app, the system operates autonomously without driver input.
This Heavy Rate configuration includes progressive dual-rate rear coil springs, billet adjustable rear links, and an adjustable rear track bar—making it ideal for Broncos running additional rear weight such as overland gear, tire carriers, or armor.
✔ ICON’s most advanced Bronco suspension system
✔ Active electronic damping with CDEV & IIC
✔ Heavy Rate rear springs for added load capacity
✔ Premium billet suspension links for maximum articulation
✔ Bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting points. No cutting or welding required. Alignment required after installation. iOS device required for setup and operation of ICON Intelligent Control.
📌 Specs
- Key Features & Benefits
- ICON 2.5 VS remote reservoir coilovers with CDEV provide active, real-time damping control
- ICON Intelligent Control (IIC) automatically adjusts compression based on terrain and driving conditions
- Adjustable ride height delivers 2–3" front lift and 1.25–2.25" rear lift (Sasquatch-specific)
- Heavy Rate progressive dual-rate rear coil springs support additional rear weight
- Billet aluminum upper control arms with Delta Joint PRO allow caster/camber adjustment
- Billet rear upper and lower links improve articulation, pinion angle, and fuel tank clearance
- Adjustable rear track bar allows precise axle centering at any lift height
- Designed for up to 11.5" front and 14" rear wheel travel
- 100% bolt-on system with no cutting or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 8 Active Suspension System
- Lift Height (Front): 2–3 inches
- Lift Height (Rear): 1.25–2.25 inches
- Vehicle Platform: Ford Bronco
- Model Years: 2021–2023
- Required Package: Sasquatch
- Shock Type: 2.5 VS Remote Reservoir w/ CDEV
- Rear Spring Type: Heavy Rate Progressive Dual-Rate
- Control System: ICON Intelligent Control (IIC)
- Installation Type: Bolt-on
📐 Wheel & Tire Fitment
- Recommended Aftermarket Wheels:
- 17x8.5" – 4.75" Backspace / 0mm Offset
- 18x9" – 5.00" Backspace / 0mm Offset
- 20x9" – 5.00" Backspace / 0mm Offset
- Recommended Tire Size:
- 35x12.50
- 37x12.50 (requires coilover bump stop spacers and minor trimming)

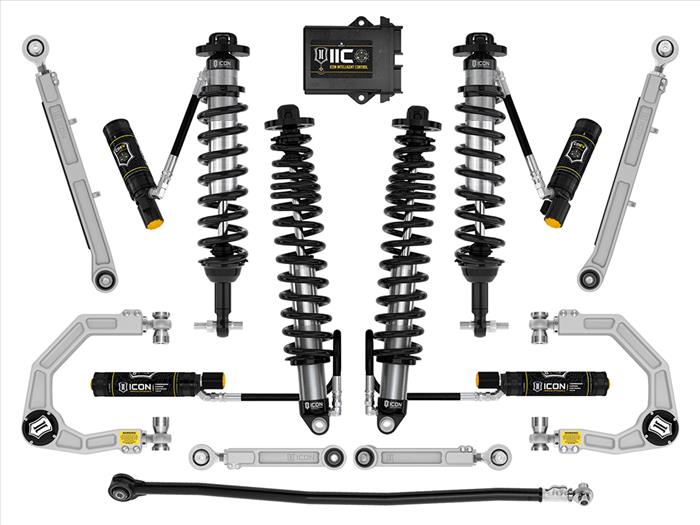

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Remote Reservoir CDEV Front Coilovers
- Billet Aluminum Upper Control Arms w/ Delta Joint PRO
- Rear Components
- 2.5 VS Remote Reservoir CDEV Rear Coilovers (Heavy Rate, shaft-up)
- Heavy Rate progressive dual-rate rear coil springs
- Billet adjustable rear upper links
- Billet adjustable rear lower links
- Adjustable rear track bar
- Electronics
- ICON Intelligent Control (IIC) installation kit
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable, rebuildable, and re-valvable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Sasquatch Package – 4-Door Models
⚠️ Fitment Notes
- Designed exclusively for Sasquatch-equipped Broncos. Requires an iOS device to operate the ICON Intelligent Control (IIC) app. Not compatible with Bronco Raptor. Professional installation and alignment are strongly recommended.
