🧾 Overview
The ICON Stage 8 Suspension System for the 2021–2023 Ford Bronco equipped with the Sasquatch Package is ICON’s most advanced electronically controlled suspension system, engineered for maximum performance, articulation, and control under demanding off-road and high-speed conditions. This system pairs ICON’s CDEV remote reservoir coilovers with a complete tubular link and track bar solution, delivering unmatched geometry correction and suspension freedom.

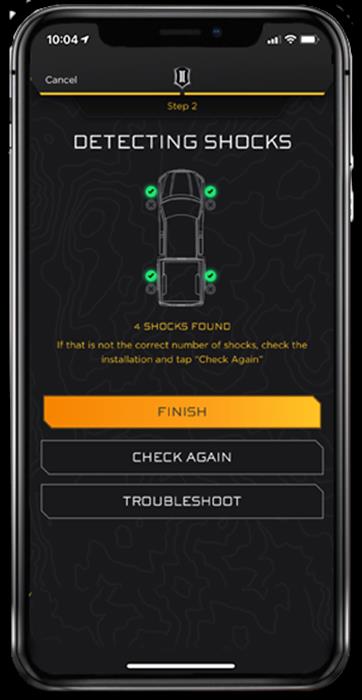

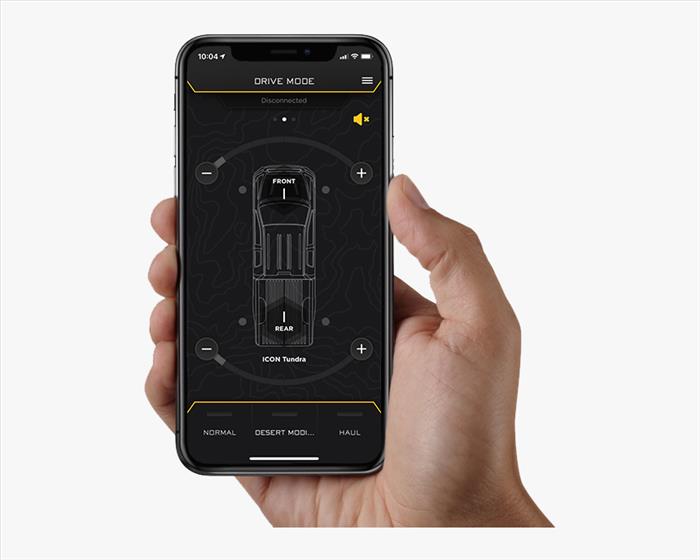

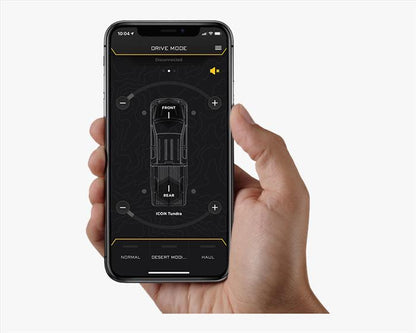

At the core of Stage 8 is ICON Intelligent Control (IIC), which actively monitors vehicle movement and terrain inputs to make near-instant compression damping adjustments through the Compression Damping Electronic Valve (CDEV) at each shock. Once configured through the IIC mobile app, the system operates automatically—allowing the suspension to adapt in real time without driver input.
This Heavy Rate configuration features progressive dual-rate rear coil springs designed for Broncos carrying added rear weight such as overland gear, bumpers, tire carriers, or recovery equipment. Combined with tubular upper control arms, full tubular rear links, and an adjustable rear track bar, this system eliminates bind, improves articulation, and maintains precise axle alignment on lifted Sasquatch Broncos.
✔ ICON CDEV electronically controlled coilovers with IIC
✔ Heavy rate rear springs for added load capacity
✔ Complete tubular rear link and track bar system
✔ Designed specifically for Sasquatch-equipped Broncos
🛠 Installation
- 100% bolt-on installation using factory mounting locations. No cutting, drilling, or welding required. Professional installation and alignment are strongly recommended for proper calibration and performance.
📌 Specs
- Key Features & Benefits
- ICON CDEV remote reservoir front and rear coilover shocks with active electronic damping
- ICON Intelligent Control (IIC) automatically adjusts compression damping in real time
- Adjustable front lift range: 2–3 inches
- Adjustable rear lift range: 1.25–2.25 inches
- Heavy rate rear coil springs support added rear vehicle weight
- Tubular upper control arms with corrected geometry and Delta Joint PRO
- Complete tubular rear upper and lower link system for improved articulation
- Adjustable rear track bar for precise rear axle centering
- Fully bolt-on system using factory mounting points
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 8 Suspension System
- Vehicle Platform: Ford Bronco (Sasquatch)
- Model Years: 2021–2023
- Front Lift Range: 2–3 inches
- Rear Lift Range: 1.25–2.25 inches
- Front Shocks: 2.5 VS Remote Reservoir CDEV Coilovers
- Rear Shocks: 2.5 VS Remote Reservoir CDEV Coilovers (Heavy Rate Spring)
- Control Arms: Tubular Upper Control Arms
- Rear Links: Tubular Upper & Lower Links
- Track Bar: Adjustable Rear Track Bar
- 🛞 Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" – 4.75" Backspace / 0mm Offset
- 18x9" – 5.00" Backspace / 0mm Offset
- 20x9" – 5.00" Backspace / 0mm Offset
- Recommended Tire Size:
- 35x12.50
- 37x12.50 (requires bump stop spacers and minor trimming)

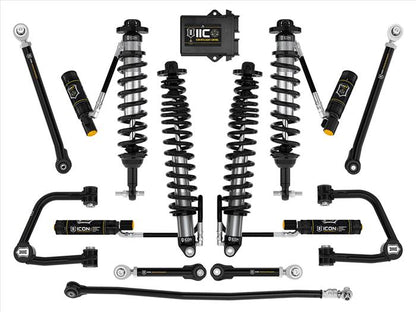

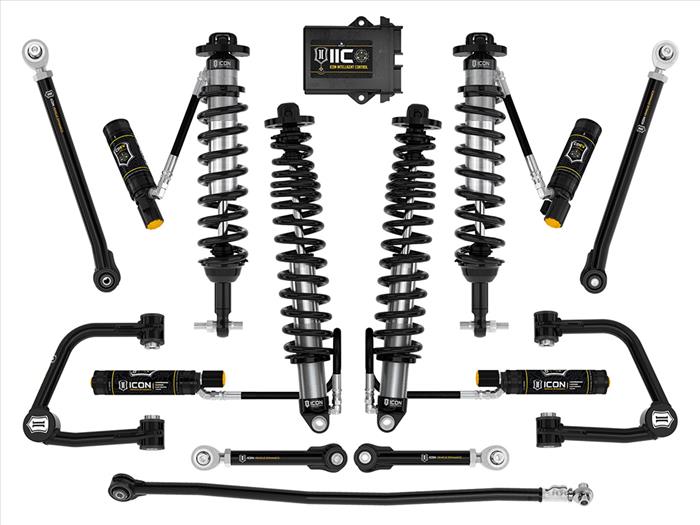

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Remote Reservoir CDEV Front Coilover Kit
- Tubular Upper Control Arms with Delta Joint PRO
- Rear Components
- 2.5 VS Remote Reservoir CDEV Rear Coilover Kit (Heavy Rate Springs)
- Tubular Rear Upper Link Kit
- Tubular Rear Lower Link Kit
- Adjustable Rear Track Bar
- Electronics & Hardware
- ICON Intelligent Control (IIC) Install Kit
- Rear Hose Routing Kit
- All required mounting hardware
🛡 Warranty
- ICON manufacturer-backed warranty. Shocks and electronic components are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (Sasquatch Package)
- Model Years: 2021–2023
⚠️ Fitment Notes
- Designed exclusively for Sasquatch-equipped Broncos
- Not compatible with Bronco Raptor
- iOS device required to operate ICON Intelligent Control (IIC)
- Professional installation and alignment recommended
