🧾 Overview
The ICON Stage 5 Suspension System for the 2021–2023 Ford Bronco (Non-Sasquatch) is a performance-focused lift designed to deliver increased wheel travel, improved ride quality, and enhanced off-road control while maintaining predictable on-road manners. This system combines ICON remote reservoir coilovers with geometry-correcting tubular components to support aggressive trail use and larger tire fitment.
With adjustable lift ranges of 3–4 inches in the front and 2–3 inches in the rear, Stage 5 adds strength and articulation through tubular upper control arms and rear lower links, allowing the Bronco to cycle more freely under suspension travel. Designed as a complete bolt-on solution, this kit is ideal for drivers looking to push beyond entry-level lift systems without moving into full long-travel territory.
✔ Adjustable 3–4" front / 2–3" rear lift
✔ Remote reservoir coilovers for consistent damping
✔ Tubular UCAs and rear links for improved geometry & articulation
✔ Tuned for aggressive off-road use with daily-driver stability
🛠 Installation
- 100% bolt-on installation using factory mounting locations. No cutting or welding required. Professional installation and alignment are recommended for optimal performance and tire wear.
📌 Specs
- Key Features & Benefits
- Remote reservoir front and rear coilovers increase damping control and heat dissipation
- Adjustable ride height allows proper tuning for tire size and vehicle setup
- Tubular upper control arms correct caster and improve suspension travel
- Patented Delta Joint Pro provides up to 90° of articulation with long-term durability
- Tubular rear lower links free up rear suspension bind and improve articulation
- Bolt-on system installs using factory mounting points
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 5 Suspension System
- Lift Height: 3–4" front / 2–3" rear
- Suspension Style: Coilover-based with tubular components
- Front Travel: Up to 11.5 inches
- Rear Travel: Up to 14 inches
- Vehicle Platform: Ford Bronco (Non-Sasquatch)
- Sold As: Complete suspension system
- Maximum Tire Size (with proper configuration):
- 35" x 12.50"
- 37" tires possible with trimming and optional up-travel limiters

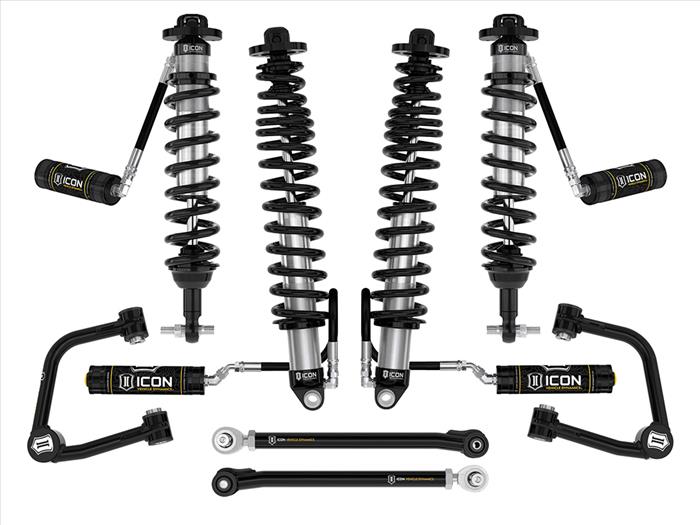

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS remote reservoir front coilover kit
- Tubular upper control arms with Delta Joint Pro
- Rear Components
- 2.5 VS remote reservoir rear coilover kit
- Tubular rear lower link kit
- Rear link hose routing kit
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- 4-Door models without Sasquatch Package
⚠️ Fitment Notes
- Designed for non-Sasquatch Broncos only. Factory crash bars must be removed to clear 35" or larger tires. Optional high-clearance crash bars are recommended. Professional installation and alignment are strongly recommended.
