🧾 Overview
The ICON Stage 5 Suspension System for the 2021–2023 Ford Bronco (Non-Sasquatch) is a premium bolt-on suspension upgrade designed to deliver maximum wheel travel, improved ride control, and increased off-road capability without electronic damping. Featuring ICON’s remote reservoir coilovers and billet aluminum suspension components, this system balances aggressive trail performance with refined on-road manners.
With adjustable lift capability and strengthened rear suspension links, Stage 5 is ideal for Bronco owners looking to step beyond basic lift kits and into a fully engineered performance system—without the complexity of electronic controls.
✔ 3–4" front / 2–3" rear adjustable lift
✔ Remote reservoir coilovers for consistent damping
✔ Billet control arms and rear links for strength and articulation
✔ Built for aggressive off-road use with daily-driver comfort
🛠 Installation
- 100% bolt-on installation using factory mounting locations. No cutting or welding required. Professional installation and alignment are recommended for optimal performance and tire wear.
📌 Specs
- Key Features & Benefits
- Remote reservoir coilovers improve damping consistency and heat control
- Adjustable ride height allows fine-tuning from 3–4" front and 2–3" rear

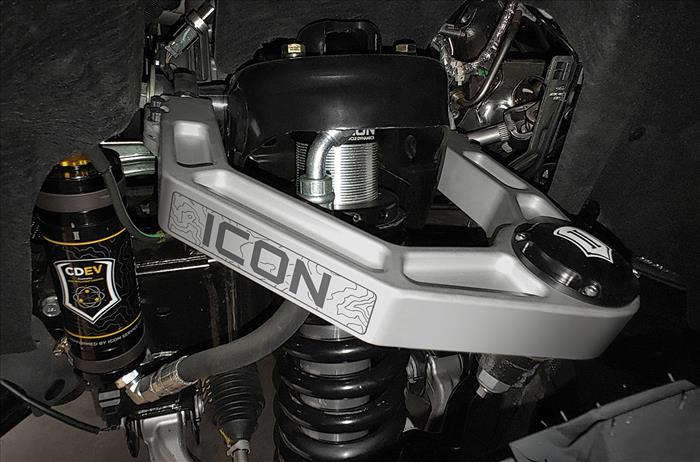

- Billet aluminum upper control arms provide caster and camber correction
- Delta Joint Pro UCAs allow up to 90° of articulation

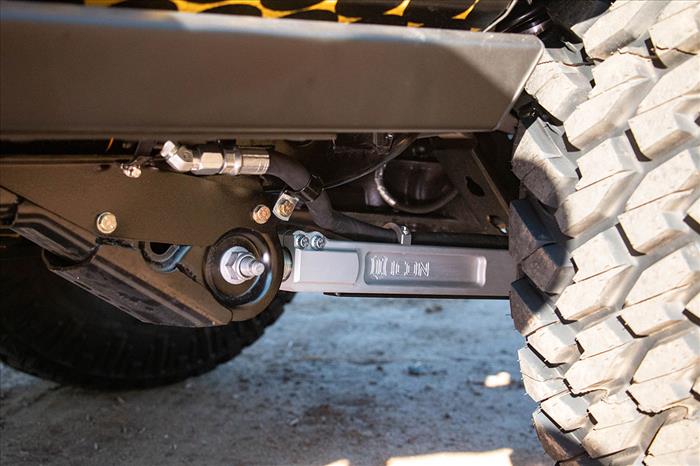

- Billet rear lower links increase strength, articulation, and ground clearance
- Triple-rate rear coil springs maximize rear travel and ride quality
- Bolt-on design installs using factory mounting points
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 5 Suspension System
- Lift Height: 3–4" front / 2–3" rear
- Suspension Style: Remote reservoir coilover system
- Front Travel: Up to 11.5 inches
- Rear Travel: Up to 14 inches
- Rear Spring Type: Triple-rate
- Vehicle Platform: Ford Bronco (Non-Sasquatch)
- Sold As: Complete suspension system
- Maximum Tire Size (with proper configuration):
- 35" x 12.50"
- 37" possible with trimming and optional up-travel limiters

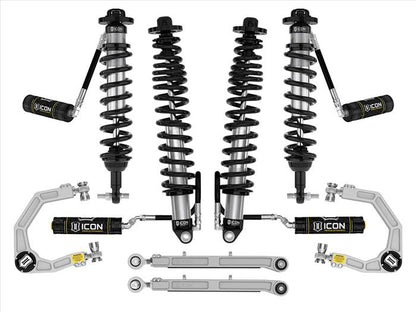

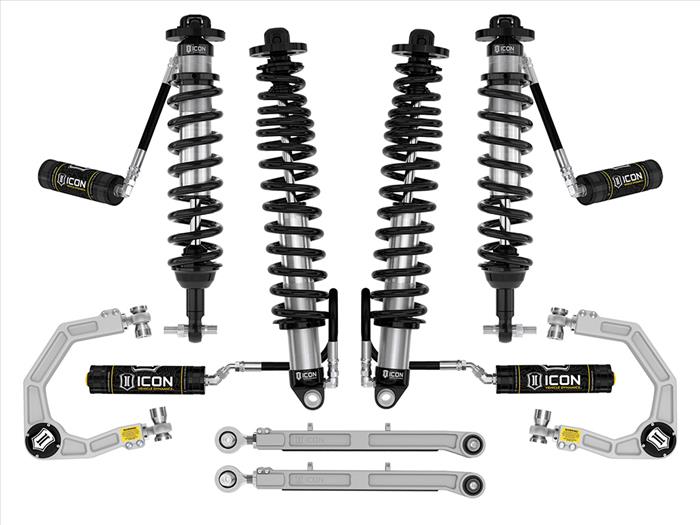

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS remote reservoir front coilover kit
- Billet aluminum upper control arms with Delta Joint Pro
- Rear Components
- 2.5 VS remote reservoir rear coilover kit
- Billet aluminum rear lower suspension link kit
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- 4-Door models without Sasquatch Package
⚠️ Fitment Notes
- Designed for non-Sasquatch Broncos only. Factory crash bars must be removed to clear 35" or larger tires. Optional high-clearance crash bars are recommended. Professional installation and alignment are strongly recommended.
