🧾 Overview
The ICON Stage 3 Suspension System for the 2021–2023 Ford Bronco (Non-Sasquatch) is a performance-focused lift designed to improve ride quality, wheel travel, and handling both on- and off-road. Featuring ICON internal reservoir coilovers paired with billet aluminum upper control arms, this system provides adjustable lift, proper alignment geometry, and increased articulation without unnecessary complexity.
Stage 3 is ideal for Bronco owners looking for a premium coilover upgrade with billet UCAs while maintaining a clean, bolt-on suspension package.
✔ 3–4" front / 2–3" rear adjustable lift
✔ Internal reservoir coilovers for consistent damping
✔ Billet aluminum UCAs for strength and alignment correction
✔ Balanced trail capability with daily-driver comfort
🛠 Installation
- 100% bolt-on installation using factory mounting locations. No cutting or welding required. Professional installation and alignment are recommended for optimal performance and tire wear.
📌 Specs
- Key Features & Benefits
- Internal reservoir coilovers improve ride control and durability
- Adjustable ride height allows tuning from 3–4" front and 2–3" rear
- Billet aluminum upper control arms provide caster/camber correction
- Delta Joint Pro UCAs allow up to 90° of articulation
- Triple-rate rear coil springs maximize rear travel and ride quality
- Bolt-on system installs using factory mounting points
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 3 Suspension System
- Lift Height: 3–4" front / 2–3" rear
- Suspension Style: Internal reservoir coilover system
- Front Travel: Up to 11.5 inches
- Rear Travel: Up to 14 inches
- Rear Spring Type: Triple-rate
- Upper Control Arms: Billet aluminum
- Vehicle Platform: Ford Bronco (Non-Sasquatch)
- Sold As: Complete suspension system
- Maximum Tire Size (with proper configuration):
- 35" x 12.50"
- 37" possible with trimming and optional up-travel limiters

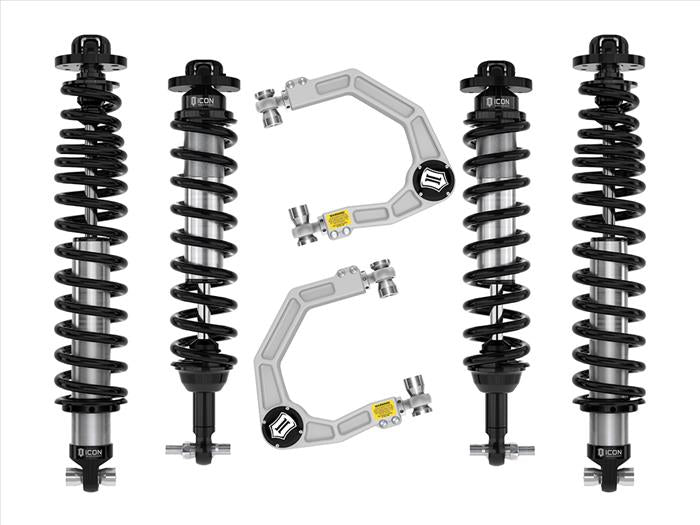

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS internal reservoir front coilover kit
- Billet aluminum upper control arms with Delta Joint Pro
- Rear Components
- 2.5 VS internal reservoir rear coilover kit
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- 4-Door models without Sasquatch Package
⚠️ Fitment Notes
- Designed for non-Sasquatch Broncos only. Factory crash bars must be removed to clear 35" or larger tires. Optional high-clearance crash bars are recommended. Professional installation and alignment are strongly recommended.
