🧾 Overview

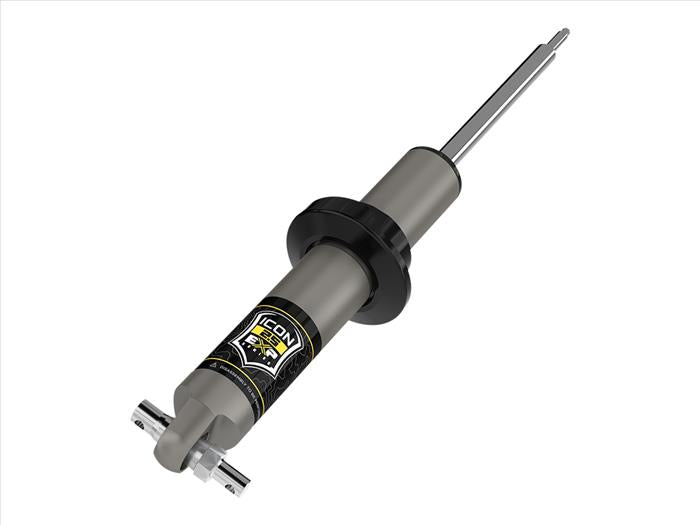

The ICON 2.5 EXP Series Front Coilover for 2021–2026 Ford Bronco (HOSS 2.0 Package) is engineered to deliver increased ride control, improved damping performance, and adjustable front lift while retaining factory coil springs and mounting hardware. Designed specifically for Broncos equipped with the HOSS 2.0 suspension package, this coilover bridges the gap between basic spacer lifts and full threaded coilover systems.
Built on ICON’s proven 2.5-inch Aluminum Series platform, the EXP Series offers increased oil volume, superior heat dissipation, and custom Bronco-specific tuning for excellent on-road comfort and confident off-road control. Ride height is adjustable from 0–2 inches via precision-machined snap ring grooves, allowing fine tuning for tire clearance and stance without compromising suspension geometry.
✔ Designed specifically for HOSS 2.0 Broncos
✔ Adjustable 0–2" front lift using snap-ring grooves
✔ Reuses factory coil springs and hardware
✔ Improved damping, control, and heat dissipation
🛠 Installation
- 100% bolt-on installation
- Reuses factory upper shock mount and coil spring
- No cutting or welding required
- Factory shaft-up orientation retained
- Estimated install time: 2–3 hours (professional installation recommended)
📌 Specs
- Vehicle-specific tuning for 2021–2023 Ford Bronco HOSS 2.0
- 2.5" Aluminum Series shock body with increased oil capacity
- Adjustable ride height from 0–2" of front lift
- Internal reservoir design for improved cooling
- Inverted shaft-up configuration with 7/8" hardened chrome shaft
- CNC-machined 6061 aluminum components
- Fully rebuildable and re-valvable
- PTFE-lined spherical bearing for reduced deflection
📐 Specifications
- Shock Series: ICON 2.5 EXP Series
- Lift Range: 0–2 Inches (Front)
- Shock Body Diameter: 2.5 Inch
- Shaft Diameter: 7/8 Inch
- Material: CNC-machined 6061 aluminum
- Mount Type: Factory shaft-up orientation
- Reservoir: Internal
- Sold As: Each (pair required)
📦 What’s Included
- ICON 2.5 EXP Series Front Coilover (sold individually)
- Note: Quantity of 2 required per vehicle.
🛡 Warranty
- Manufacturer-backed warranty
- Fully rebuildable and serviceable by ICON or qualified shock technicians
⚠️ Fitment Notes
- 2021–present Ford Bronco
- Equipped with HOSS 2.0 Suspension Package ONLY
- HOSS 2.0 is standard on:
- Badlands
- Wildtrak
- First Edition
- Everglades
- HOSS 2.0 with Sasquatch package on:
- Base
- Big Bend
- Outer Banks
- Black Diamond
⚠️ Fitment Notes (Locked Format)
- ❌ Not compatible with Bronco Raptor
- ❌ Not compatible with non-HOSS 2.0 Broncos
- Sold individually — 2 required per vehicle
- Lift heights above 1.5" may require aftermarket upper control arms
- ICON Delta Joint Pro UCAs (48400DJ / 48500DJ) recommended
- 37" tires require front bump stop spacers (#611082)
- Crash bar modifications may be required depending on tire size
