🧾 Overview
The Stage 4 Suspension System from ICON Vehicle Dynamics is engineered for Bronco owners who demand sustained performance under hard use. Featuring 2.5 Series remote reservoir coilovers front and rear, tubular upper control arms with Delta Joint PRO, and heavy-rate rear springs, this system delivers consistent damping, excellent heat management, and confident control at speed.
With adjustable ride height providing 3–4" of front lift and 2–3" of rear lift on non-Sasquatch Broncos, Stage 4 is ideal for larger tires, added rear weight, and aggressive off-road driving—without sacrificing daily drivability.
✔ Stage 4 performance suspension for Non-Sasquatch Broncos
✔ 2.5 Series remote reservoir coilovers front & rear
✔ Tubular UCAs with Delta Joint PRO
✔ Heavy-rate rear springs for added load capacity
✔ Built for sustained, high-speed off-road use
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Tire-related modifications may be required depending on size. Professional installation and post-install alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- Remote reservoir coilovers increase oil volume and resist fade
- Up to 11.5" front and 14" rear suspension travel with 35" tires
- Tubular UCAs provide alignment correction and added durability
- Delta Joint PRO allows up to 90° of articulation without bind
- Heavy-rate rear springs support added gear and accessories
- Corrosion-resistant CAD-plated shock bodies with 7/8" shafts
- 100% bolt-on system—no drilling, cutting, or welding
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 4 Suspension System
- Front Lift Height: 3–4 inches (adjustable)
- Rear Lift Height: 2–3 inches (adjustable)
- Shock Type: 2.5 Series remote reservoir coilovers (front & rear)
- Upper Control Arms: Tubular with Delta Joint PRO
- Vehicle Platform: Ford Bronco (Non-Sasquatch)
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" w/ 5.75" backspacing / 25mm offset
- 18x9" w/ 6.00" backspacing / 25mm offset
- Recommended Tires:
- 35" x 12.50" (high-clearance crash bars recommended)
- 37" tires require up-travel limiters and additional modifications

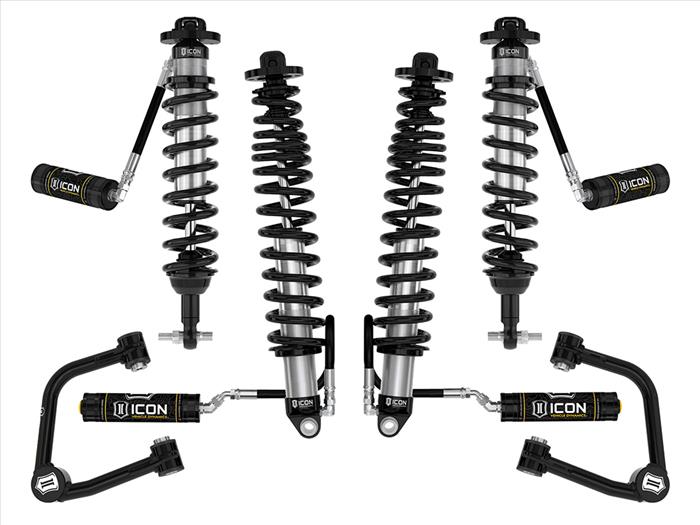

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 Series remote reservoir front coilover kit (PN 48700)
- Tubular upper control arm kit w/ Delta Joint PRO (PN 48400DJ)
- Rear Components
- 2.5 Series remote reservoir rear coilover kit w/ heavy-rate springs (PN 48711)
- Additional
- Rear hose route kit for OEM rear links (PN 611072)
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
- Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Non-Sasquatch models
- 4-Door (2-door models will sit taller)
⚠️ Fitment Notes
- Not compatible with Bronco Raptor. Factory crash bars must be removed to clear 35" tires; ICON high-clearance crash bars are recommended. 37" tires require up-travel limiters and additional trimming/modifications. Rear reservoir brackets may interfere with some aftermarket steps or rock sliders. Professional installation and alignment are recommended.
