ICON Vehicle Dynamics

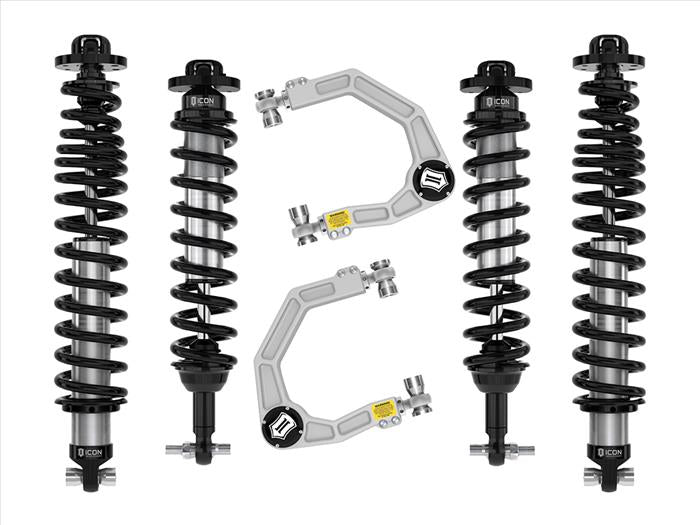

ICON 2021-2023 Ford Bronco, Non-Sasquatch, 3-4" Lift, Stage 3 Suspension System, Billet, Heavy Rate Rear Spring
$4,887.85
In Stock
Pre-Order
Sold out
CODE: K40003X
SECURE CHECKOUT
30-DAY EASY RETURNS
- Description
- Shipping and Refund
- Reviews
The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4? of front lift and 2-3? of rear lift over stock 4-door Broncos without the Sasquatch Package.
To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics.
This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
Features & Benefits
- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14? rear wheel travel with 35? tire fitment
- Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control
- Adjustable coilovers yield up to 3-4" of front lift height and 2-3? of rear lift height over stock 4-door non-Sasquatch Broncos
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8? diameter shafts
- ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Tech Info:
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75? Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" with 5" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- APPLICATION NOTE #66: 2 Door Models Will Sit Taller Than 4 Door Models.
- APPLICATION NOTE #132: When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
- APPLICATION NOTE #133: When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
- APPLICATION NOTE #135: Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
- APPLICATION NOTE #138: Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- APPLICATION NOTE #139: When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: Fitment testing done with ICON & OE steering components. Due to tight clearances to front coilovers, certain aftermarket steering components may not be compatible.
- TECH NOTE: ICON Heavy Rate Rear Coil Springs are optimized for increased rear ride height on Broncos with additional weight added to the rear. ICON Heavy Rate Rear Coil Springs will result in a slight positive rake when the Bronco is unloaded. For near stock weight Broncos, consider part number K40003.
- TECH NOTE: Not compatible with Bronco Raptor
System Components:
- 48600 (QTY: 1) | 21-23 BRONCO FRONT 2.5 VS IR COILOVER KIT
- 48500DJ (QTY: 1) | 21-23 BRONCO BILLET UCA DJ PRO KIT
- 48613 (QTY: 1) | 21-23 BRONCO REAR 2.5 VS IR COILOVER KIT HEAVY RATE SPRING
