🧾 Overview

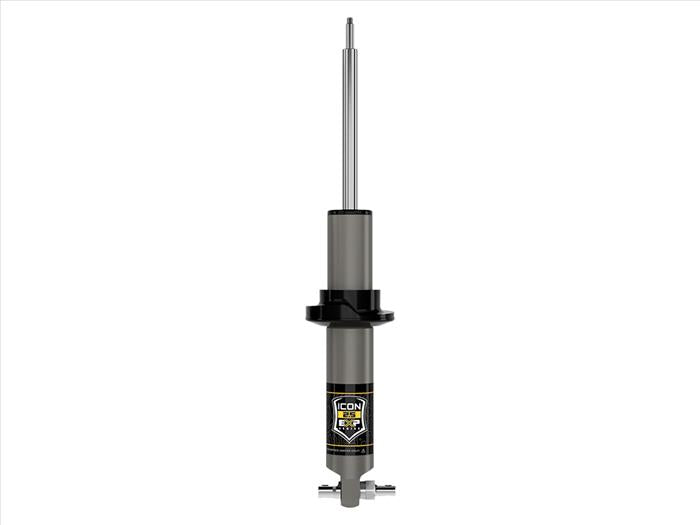

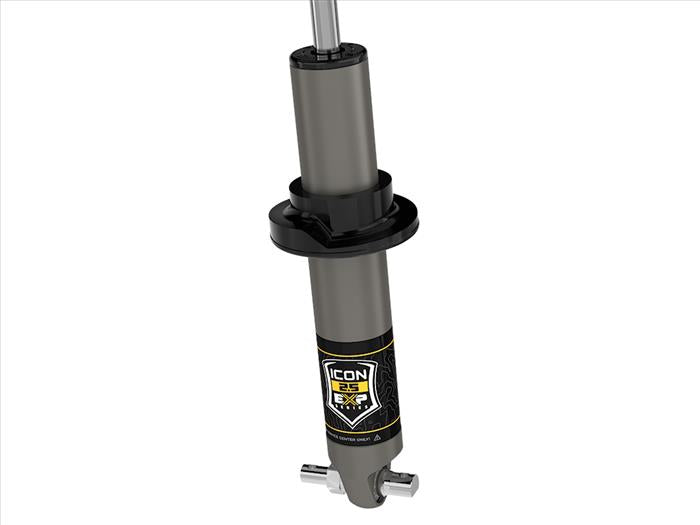

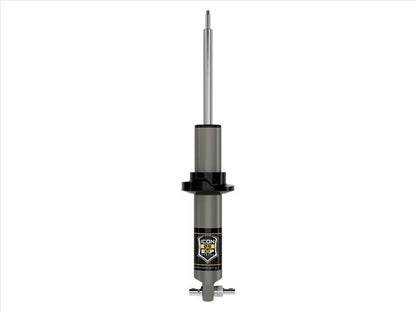

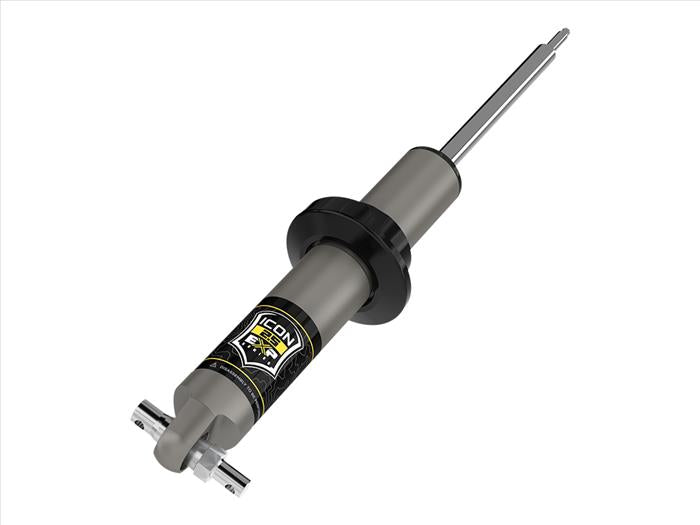

The ICON 2.5 EXP Series Front Coilover is a performance suspension upgrade designed specifically for 2021–2023 Ford Bronco models equipped with the HOSS 1.0 suspension package. EXP bridges the gap between spacer lifts and full threaded-body coilovers by reusing the factory coil spring while delivering increased ride quality, improved damping control, and adjustable lift.
Featuring a 2.5” hard-anodized aluminum shock body and snap-ring height adjustment, this system provides 1.375–3” of front lift over stock. EXP maintains factory-style shaft-up orientation and is fully rebuildable and re-tunable for long-term performance.
✔ Designed for Bronco HOSS 1.0 suspension package
✔ Adjustable 1.375–3” front lift via snap-ring grooves
✔ Reuses factory coil spring and upper mount
✔ 2.5” Aluminum Series internal reservoir shock
✔ Fully rebuildable and re-valveable
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Factory coil spring and upper mount must be transferred to the EXP shock.
- Ride height must be set prior to final torque.
- Alignment required after installation.
📌 Specs
- Key Features & Benefits
- Vehicle-Specific Tuning – Optimized for Bronco HOSS 1.0
- 2.5” Aluminum Shock Body – Increased oil volume and heat dissipation
- Snap-Ring Ride Height Adjustment – 1.375–3” lift range
- Reuses Factory Coil & Top Mount – Cost-effective upgrade path
- Inverted Shaft-Up Design – OE-style configuration
- 7/8” Induction Hardened Chrome Shaft – Strength and durability
- Hard Anodized Aluminum Body – Corrosion resistance
- CNC Machined 6061 Aluminum Components
- PTFE Lined Spherical Bearing – Reduced deflection
- Fully Rebuildable & Re-Tunable – Long-term serviceability
- 100% Bolt-On Installation – No cutting or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: 2.5 EXP Series
- Shock Type: Internal Reservoir Coilover
- Position: Front
- Lift Height: 1.375–3” Adjustable
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Spring Compatibility: Reuses Factory Coil Spring
- Orientation: Shaft-Up (Factory Style)
- Serviceable: Yes – Rebuildable & Re-Valveable
- Installation Type: Bolt-On
- Sold As: Single (Qty 2 Required)
📦 What’s Included (What’s in the Box)
- Front Component
- (1) ICON 2.5 EXP Series Front Shock Absorber
- Mounting Components
- CNC machined lower bar pin
- Application-specific mounting hardware
- ⚠️ Factory coil spring and upper mount are reused (not included).
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- HOSS 1.0 Suspension Package Only
- (Base, Big Bend, Outer Banks, Black Diamond without Sasquatch)
⚠️ Fitment Notes
- Only compatible with Bronco models equipped with HOSS 1.0 suspension (OE black shock bodies).
- Not compatible with Sasquatch package, HOSS 2.0/3.0/4.0, or Bronco Raptor.
- Sold individually — quantity of 2 required per vehicle.
- Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment.
- 35” Tires:
- High clearance crash bars (PN 42000) required
- 37” Tires:
- Bump stop spacer kit (PN 611082) required
- Trimming required
- Crash bar removal may be required but is not recommended
