🧾 Overview

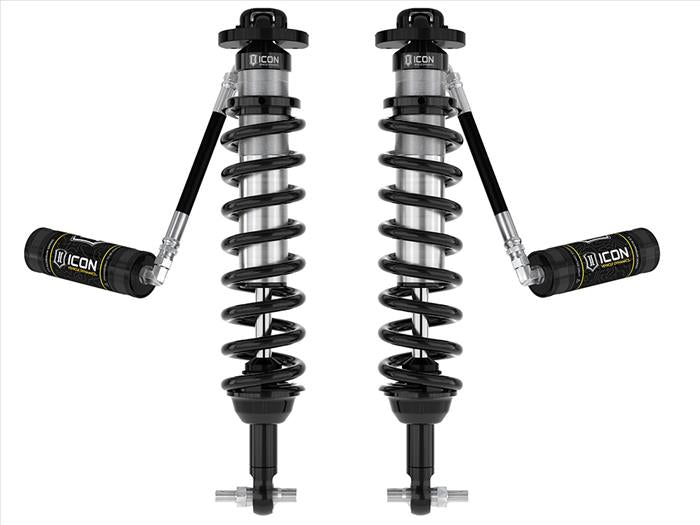

The ICON V.S. 2.5 Remote Reservoir Front Coilover Kit is a premium suspension upgrade for 2021–2023 Ford Bronco models. Designed with vehicle-specific shock length and valving, it delivers improved ride quality, increased wheel travel, and enhanced off-road capability.
With adjustable lift from 1.5–4” on non-Sasquatch models and 2–3” over stock on Sasquatch-equipped Broncos, this system supports larger wheel and tire combinations while maintaining precise damping control. Remote reservoirs increase oil capacity and cooling performance for consistent operation under demanding conditions.
✔ Adjustable 1.5–4” front lift
✔ Remote reservoir design for improved cooling
✔ Vehicle-specific tuned valving
✔ Increased wheel travel (up to 11.5”)
✔ Fully rebuildable and re-tunable
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Suspension should be cycled to verify clearance at full droop and compression.
📌 Specs
- Key Features & Benefits
- 2.5” Shock Body – Increased oil capacity and damping precision
- Remote Reservoir – Improved cooling during extended off-road use
- Vehicle-Specific Valving – Tuned for Bronco platform
- Height Adjustable – 1.5–4” lift capability
- ICON Engineered Coil Springs – Platform-matched spring rates
- 6061 CNC Machined Aluminum Components
- CAD Plated Shock Bodies
- 7/8” Induction Hardened Chrome Shafts
- FK Rod End Bearings – Reduced deflection
- High Strength Alloy Lower Bar Pin
- 100% Bolt-On Installation
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5
- Shock Type: Remote Reservoir Coilover
- Position: Front
- Lift Height (Non-Sasquatch): 1.5–4”
- Lift Height (Sasquatch): 2–3” Over Stock
- Lift Height (Everglades): 1.5–2.5”
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Maximum Wheel Travel: Up to 11.5”
- Serviceable: Yes – Rebuildable & Re-Tunable
- Installation Type: Bolt-On
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON V.S. 2.5 Remote Reservoir Front Coilovers
- Pre-installed ICON engineered coil springs
- Mounting Components
- Remote reservoir mounting brackets
- Application-specific mounting hardware
- If you provide the exact ICON part number, I can verify reservoir clamps and hardware contents for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- All trims except Bronco Raptor
⚠️ Fitment Notes
- Not compatible with Bronco Raptor.
- Non-Sasquatch Models:
- 1.5–4” lift range
- Sasquatch Models:
- 2–3” lift over stock
- Bronco Everglades:
- 1.5–2.5” lift over stock
- Factory upper control arms will not align properly past 2.5” of lift. Aftermarket UCAs recommended above 2.5”.
- 35” Tires (Non-Sasquatch):
- High clearance crash bars (PN 42000) recommended
- 37” Tires:
- Up-travel limiters (PN 611075) required
- Coilover bump stop spacers required
- Trimming required
- Crash bar removal may be required but is not recommended
- Due to tight suspension clearances, certain aftermarket steering components may not be compatible.
