🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021–2023 Ford Bronco equipped with the HOSS 1.0 suspension package is designed to increase wheel travel, improve damping control, and enhance ride quality on- and off-road. This system delivers performance gains while retaining factory coil springs and OE mounting hardware for an efficient, bolt-on upgrade.

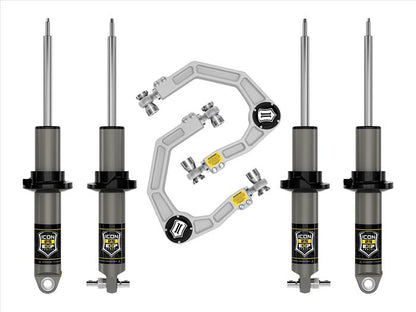

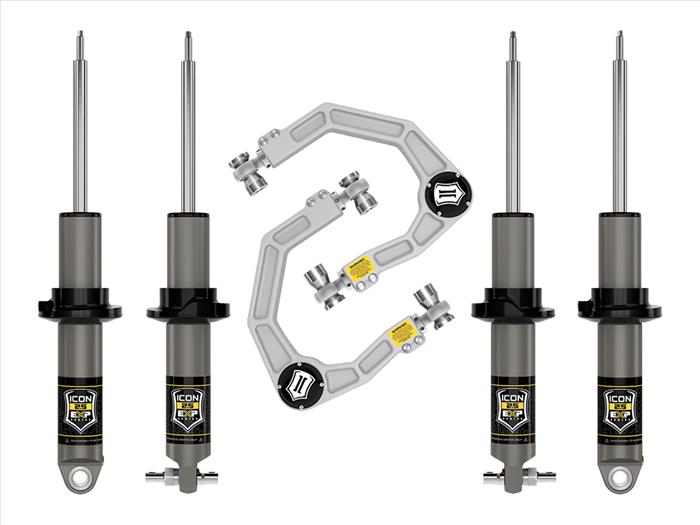

Stage 2 includes ICON 2.5 EXP Series front and rear coilovers and billet aluminum upper control arms with Delta Joint PRO. Adjustable ride height, improved heat dissipation, and corrected suspension geometry combine to provide controlled performance and long-term reliability.
✔ Designed specifically for Broncos with HOSS 1.0 suspension
✔ Adjustable ride height using factory coils
✔ Improved damping and heat management over OE shocks
✔ Billet UCAs restore alignment and increase articulation
✔ Fully rebuildable and re-tunable shocks
🛠 Installation
- Direct bolt-on installation using factory mounting locations and OE coil springs. No cutting or welding required. Designed exclusively for Broncos equipped with the HOSS 1.0 suspension package. Professional installation and alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned 2.5 EXP Series shocks for improved damping and control
- Adjustable ride height from 1.375–3" front and 1.5–2.25" rear using snap rings
- Utilizes factory coil springs and OE mounting hardware
- 2.5-inch aluminum shock bodies improve oil volume and heat dissipation
- 7/8-inch induction-hardened, chrome-plated shafts in shaft-up orientation
- Billet aluminum UCAs provide strength and on-vehicle caster/camber adjustment
- Delta Joint PRO delivers up to 90 degrees of articulation
- Fully rebuildable and re-valvable shock design
- 100% bolt-on system with no cutting or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 1.375–3 inches adjustable
- Rear Lift Height: 1.5–2.25 inches adjustable
- Front Shocks: 2.5 EXP Series Coilovers (Internal Reservoir)
- Rear Shocks: 2.5 EXP Series Coilovers (Internal Reservoir)
- Upper Control Arms: Billet Aluminum with Delta Joint PRO
- Shock Orientation: Shaft-up
- Installation Type: Bolt-on
- Tire & Wheel Fitment (Reference Only):
- OEM Wheels & Tires: Not compatible
- Recommended Aftermarket Wheels:
- 17x8.5" – 4.75" Backspace / 0mm Offset
- 18x9" – 5" Backspace / 0mm Offset
- 20x9" – 5" Backspace / 0mm Offset
- Recommended Tire Size:
- 35" x 12.50" (high-clearance crash bars recommended, PN 42000)
- 37" tires require front bump stop spacers and trimming/modifications
📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 EXP Series Front Coilover Shocks (HOSS 1.0)
- – Part Number: 48601
- – Quantity: 2
- Billet Upper Control Arm Kit with Delta Joint PRO
- – Part Number: 48500DJ
- – Quantity: 1 kit
- Rear Components
- 2.5 EXP Series Rear Coilover Shocks (HOSS 1.0)
- – Part Number: 48611
- – Quantity: 2
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics. Shocks are fully rebuildable and serviceable.
⚠️ Fitment Notes
- Ford Bronco (HOSS 1.0 Suspension Package)
- 2021–2023 Ford Bronco
- HOSS 1.0 is standard on Base, Big Bend, Outer Banks, and Black Diamond trims without the Sasquatch package. OE HOSS 1.0 shocks are identified by black shock bodies.
⚠️ Fitment Notes
- Fits HOSS 1.0–equipped Broncos only. Not compatible with Bronco Raptor. Two-door models will sit taller than four-door models. Lift heights are based on stock-equipped vehicles. Larger tire fitment may require high-clearance crash bars and additional bump stop spacing. Professional installation and alignment are recommended.
