🧾 Overview

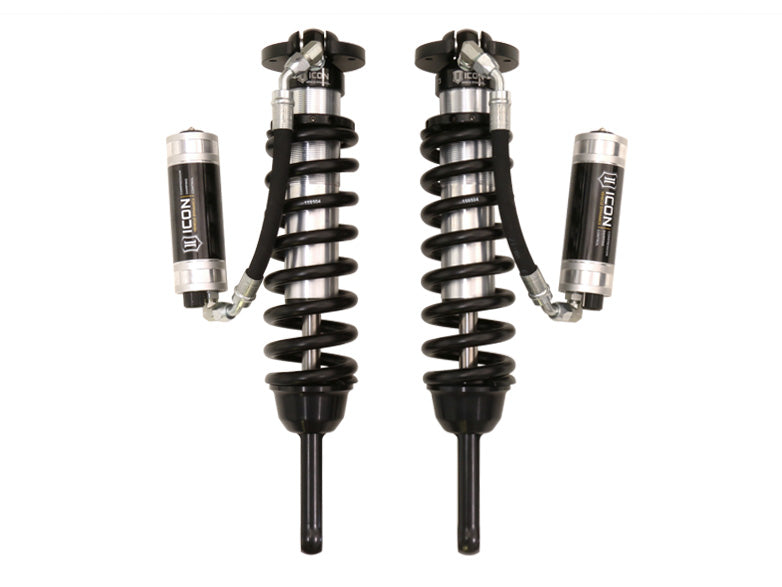

The ICON Vehicle Dynamics V.S. 2.5 Remote Reservoir Front Coilover Kit with CDCV is a premium front suspension upgrade for 2005–2023 Toyota Tacoma models. Built around ICON’s vehicle-specific valving and shock lengths, this system maximizes front suspension travel while delivering improved ride quality and control both on-road and off-road.
Featuring a 2.5″ shock body, remote reservoirs, and Compression Damping Control Valves (CDCV), these coilovers allow precise tuning across a wide range of terrain—from daily driving to rock crawling and high-speed desert use. Lift height is adjustable based on model year, enabling larger tire fitment while maintaining proper suspension geometry.
✔ Adjustable front lift with vehicle-specific tuning
✔ Remote reservoirs for improved cooling and fade resistance
✔ CDCV for on-the-fly compression tuning
✔ Fully rebuildable performance coilovers
🛠 Installation
- Direct bolt-on replacement for factory front struts
- Includes sway bar relocation brackets
- Includes reservoir mounting brackets for tire clearance
- No welding required
- Professional installation and alignment recommended
📌 Specs
- Position: Front
- Series: ICON V.S. 2.5
- Shock Type: Height-adjustable coilover with remote reservoir
- Shock Body Diameter: 2.5″
- Lift Adjustment Range:
- 2005–2015 Tacoma: 0–3.5″
- 2016–2023 Tacoma: 0–2.75″
- Upper Mount: Billet aluminum
- Bearings: 5/8″ PTFE-lined spherical bearings
- Threaded Body: CAD-plated
- Springs: ICON engineered coil springs
- Reservoirs: External, hose-mounted
- Damping Adjustment:
- CDCV with 10 settings of external compression adjustment
- Serviceability: Fully rebuildable
📐 Wheel & Tire Notes
- OEM wheels & tires: Compatible
- Recommended aftermarket wheels:
- 17×8.5 (4.75″ backspace / 0mm offset)
- 18×9 (5.00″ backspace / 0mm offset)
- 20×9 (5.00″ backspace / 0mm offset)
- Recommended tire size: 33×11.50
- Trimming required for recommended tire size
⚠️ Fitment Notes
- 2005–2023 Toyota Tacoma
- Does not fit 2005–2015 2WD 5-lug Tacoma models
- 2017–2023 TRD Pro models limited to 0–1.25″ front lift
- Lift ranges listed are for stock-equipped vehicles
- Heavily equipped vehicles may require optional 700 lb/in expedition coils
