🧾 Overview

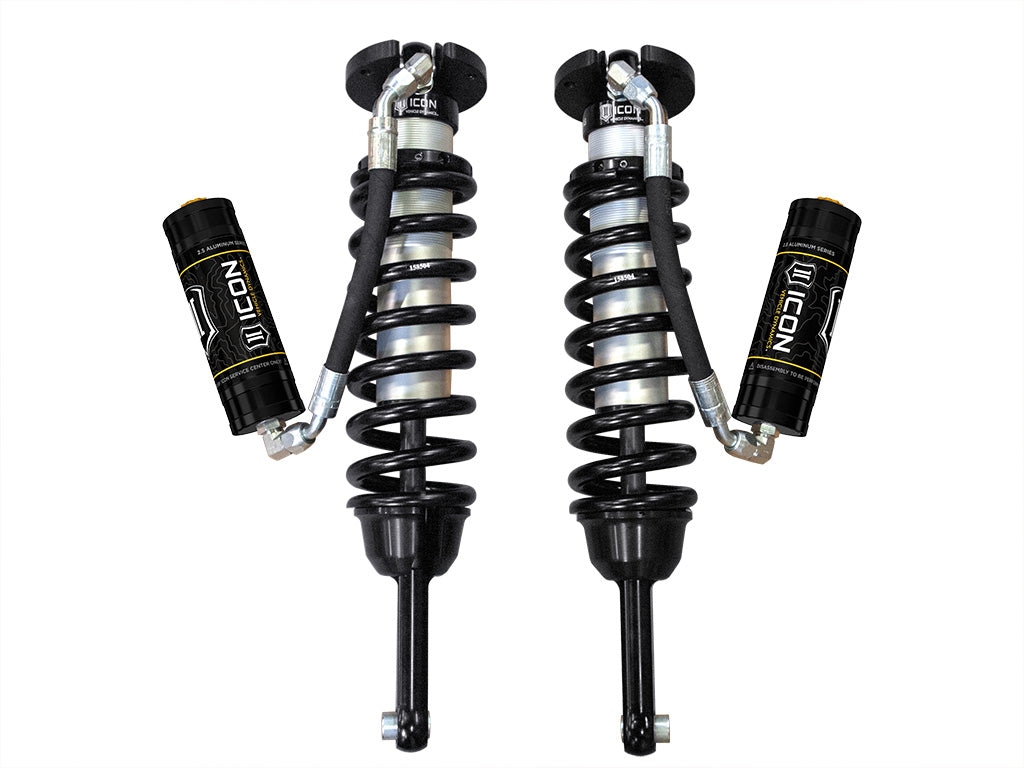

The ICON V.S. 2.5 Extended Travel Remote Reservoir Coilover Kit is a high-performance front suspension upgrade for 2005–2023 Toyota Tacoma models. Designed with vehicle-specific shock length and valving, this system delivers improved ride control on-road and increased confidence off-road while supporting larger wheel and tire combinations.
Featuring extended travel length and remote reservoirs, these coilovers increase wheel travel, oil capacity, and cooling performance for aggressive use. Due to the extended travel design, aftermarket front upper control arms are required for proper operation.
✔ Adjustable front lift height
✔ Extended travel design for increased articulation
✔ Remote reservoirs for improved cooling
✔ Vehicle-specific tuned valving
✔ Fully rebuildable and serviceable
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Aftermarket front upper control arms are required.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Suspension should be cycled to verify clearance at full droop and compression.
📌 Specs
- Key Features & Benefits
- Extended Travel Length – Increased front wheel articulation
- Remote Reservoir Design – Increased oil volume and cooling surface area
- Height Adjustable – 0–3.5” or 0–2.75” depending on model year
- Vehicle-Specific Valving – Tuned for Tacoma platform
- CAD-Plated Threaded Body – Corrosion resistance and durability
- Billet Aluminum Upper Mount – Strength and precision fit
- 5/8” PTFE-Lined Spherical Bearing – Reduced deflection
- Reservoir Mounting Brackets Included – Optimized tire clearance
- Sway Bar Relocation Brackets Included
- ICON Engineered Coil Springs
- Fully Rebuildable – Long-term serviceability
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5 Extended Travel
- Shock Type: Remote Reservoir Coilover
- Position: Front
- Lift Height (2005–2015): 0–3.5”
- Lift Height (2016–2023): 0–2.75”
- Lift Height (TRD Pro 2017–2023): 0–1.25”
- Shock Body Diameter: 2.5”
- Reservoir Type: Remote
- Serviceable: Yes – Rebuildable & Revalveable
- Installation Type: Bolt-On (Aftermarket UCAs Required)
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON V.S. 2.5 Extended Travel Remote Reservoir Front Coilovers
- Pre-installed ICON engineered coil springs
- Mounting Components
- Reservoir mounting brackets
- Sway bar relocation brackets
- Application-specific mounting hardware
- If you provide the exact ICON part number, I will verify hose clamps, spanner wrench, and hardware contents to ensure 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Toyota Tacoma (2005–2023)
- Not compatible with 2005–2015 2WD 5-Lug models.
⚠️ Fitment Notes
- Aftermarket front upper control arms are required (Application Note #18).
- 2005–2015 Tacoma:
- Lift range 0–3.5” over stock
- 2016–2023 Tacoma:
- Lift range 0–2.75” over stock
- 2017–2023 TRD Pro Models:
- Lift range 0–1.25” over stock
- 33” x 11.50” tires recommended. Fender trimming required. Larger tires may require additional modifications.
- Bump Stop Spacer Kit (PN 51045) can increase preload 0.25” beyond maximum setting.
- 700 lb/in Expedition coil option available for heavier equipped vehicles.
