🧾 Overview

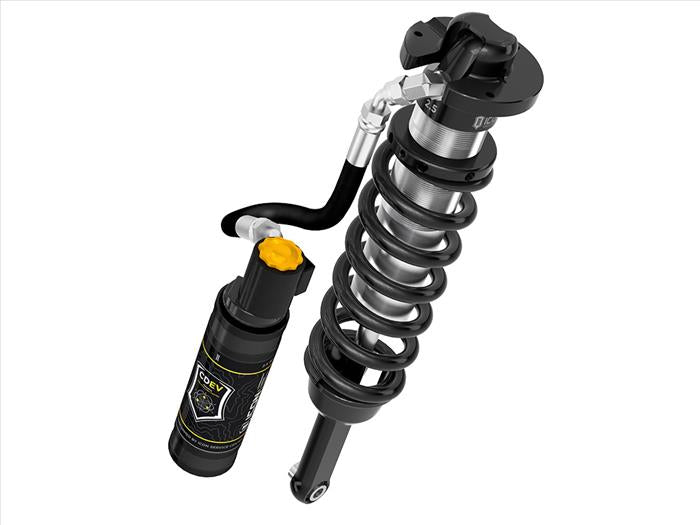

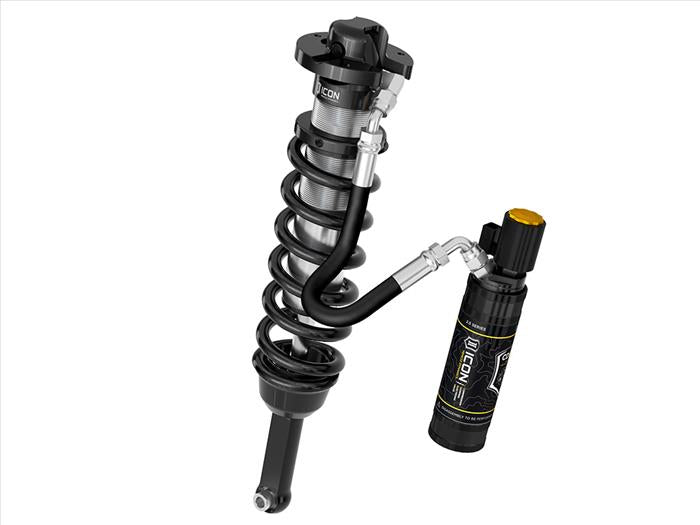

The ICON 2.5 VS Extended Travel Remote Reservoir Coilover Kit with CDEV is a premium electronically controlled suspension upgrade for 2005–2023 Toyota Tacoma models. Designed with vehicle-specific valving and extended travel geometry, it delivers increased wheel travel, improved damping control, and greater off-road capability.
With adjustable lift from 0–3.5” on 2005–2015 models and 0–2.75” on 2016–2023 models, this system supports larger wheel and tire combinations while maintaining precise suspension performance. The remote reservoirs improve cooling, while CDEV allows in-cabin electronic compression adjustment through the ICON Intelligent Control system.
✔ Extended travel design for increased articulation
✔ Electronic CDEV compression adjustment
✔ Adjustable lift height by model year
✔ Remote reservoirs for improved cooling
✔ Fully rebuildable and revalveable
🛠 Installation

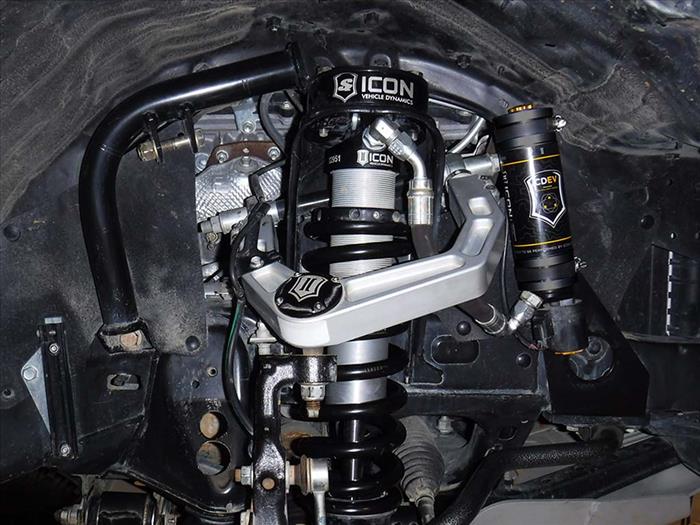

- Direct bolt-on installation using factory mounting locations.
- Aftermarket front upper control arms required.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Electrical routing required for CDEV system.
📌 Specs
- Key Features & Benefits
- Extended Travel Length – Increased front wheel articulation
- CDEV Technology – Electronic compression damping control
- ICON Intelligent Control Compatible – Active terrain-based tuning
- Remote Reservoir Design – Increased oil volume and cooling surface area
- Vehicle-Specific Valving – Tuned for Tacoma platform
- Height Adjustable – 0–3.5” or 0–2.75” depending on model year
- ICON Engineered Eibach Springs
- 6061 CNC Machined Aluminum Components
- CAD Plated Shock Bodies
- 7/8” Induction Hardened Chrome Shafts
- FK Rod End Bearings – Reduced deflection
- 100% Bolt-On Installation
- 100% Rebuildable & Revalveable
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5 Extended Travel
- Shock Type: Remote Reservoir Coilover with CDEV
- Position: Front
- Lift Height (2005–2015): 0–3.5”
- Lift Height (2016–2023): 0–2.75”
- Lift Height (TRD Pro 2017–2023): 0–1.25”
- Shock Body Diameter: 2.5”
- Reservoir Type: Remote
- Electronic Control: Compression Damping Electronic Valve (CDEV)
- Serviceable: Yes – Rebuildable & Revalveable
- Installation Type: Bolt-On (Aftermarket UCAs Required)
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components

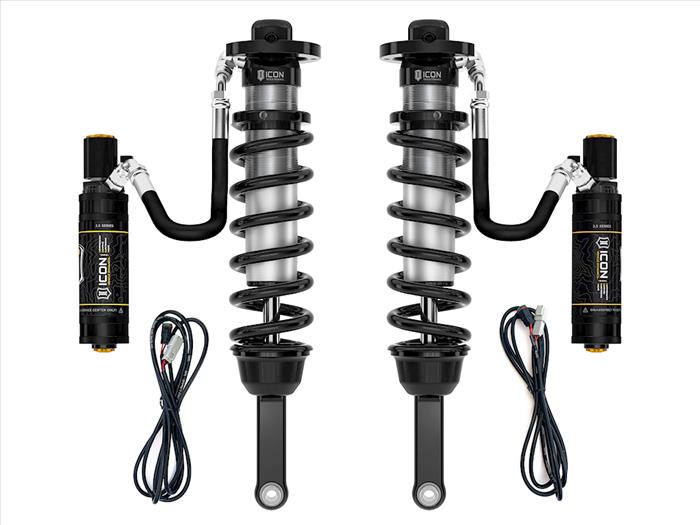

- (2) ICON 2.5 VS Extended Travel Remote Reservoir Front Coilovers with CDEV
- Pre-installed ICON engineered coil springs
- Mounting Components
- Reservoir mounting brackets
- Application-specific mounting hardware
- ⚠️ IIC module and rear CDEV shocks are NOT included.
- If you provide the exact ICON part number, I will verify clamps, electrical leads, and hardware components for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Toyota Tacoma (2005–2023)
⚠️ Fitment Notes
- Aftermarket front upper control arms are required (Application Note #18).
- Also requires:
- ICON Intelligent Control (IIC) Kit – PN 53502 or 53507
- ICON CDEV Rear Shocks – PN 57826EP
- Not compatible with 2005–2015 2WD 5-Lug Tacoma models.
- 2005–2015 Tacoma:
- Lift range 0–3.5”
- 2016–2023 Tacoma:
- Lift range 0–2.75”
- 2017–2023 TRD Pro Models:
- Lift range 0–1.25”
- 33” x 11.50” tires recommended. Fender trimming required.
- Bump Stop Spacer Kit (PN 51045) can increase preload 0.25” beyond maximum setting.
- 700 lb/in Expedition coil option available for heavier equipped vehicles.
