🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2019–2021 Ford Ranger is engineered to dramatically improve ride quality, suspension control, and off-road capability while maintaining excellent on-road manners. Designed around increased wheel travel and superior damping performance, this system is ideal for Ranger owners looking to push their truck further on the trail without sacrificing daily drivability.
At the core of the Stage 2 system are ICON’s vehicle-specific tuned 2.5 Series extended-travel coilover shocks with internal reservoirs. These height-adjustable coilovers allow for 0–3.5" of front lift while delivering exceptional cooling and fade resistance. Paired with ICON billet aluminum upper control arms featuring the patented Delta Joint, this system corrects front-end geometry, increases camber and caster adjustment, and eliminates bind at full droop and compression.
The system is completed with ICON 2.0 Aluminum Series rear shocks, tuned specifically for the Ranger to balance front and rear performance. This makes the Stage 2 system a well-rounded upgrade for both aggressive off-road use and confident on-road handling.
✔ Stage 2 complete suspension system with billet UCAs
✔ 0–3.5" adjustable front lift
✔ Extended-travel 2.5 Series coilovers with internal reservoirs
✔ Billet aluminum UCAs with patented Delta Joint
✔ Improved wheel travel, ride quality, and suspension geometry
🛠 Installation
- Direct bolt-in installation using factory mounting locations. No cutting or welding required. Minor trimming may be required for recommended tire sizes. Professional installation and alignment are strongly recommended for optimal performance and tire wear.
📌 Specs
- Key Features & Benefits
- Height-adjustable 2.5 Series coilovers provide 0–3.5" of front lift
- 35% increase in front wheel travel over stock
- Internal reservoir coilovers improve cooling and damping consistency
- Billet aluminum upper control arms correct suspension geometry
- ICON Delta Joint allows full droop and bump travel without bind
- Delta Joint combines durability of a ball joint with uniball performance
- Greaseable, sealed Delta Joint resists corrosion and road contaminants
- Rear 2.0 Aluminum Series shocks feature Ranger-specific valving
- Fully rebuildable and revalvable shocks for long-term serviceability
- Direct bolt-in system for straightforward installation
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 0–3.5 inches (adjustable)
- Shock Type (Front): 2.5 Series monotube coilovers w/ internal reservoir
- Shock Type (Rear): 2.0 Aluminum Series monotube
- Upper Control Arms: CNC-machined 6061 billet aluminum
- Ball Joint Type: ICON Delta Joint (greaseable, sealed)
- Vehicle Platform: Ford Ranger
- Knuckle Requirement: Aluminum knuckles only
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- Factory Wheels & Tires: Compatible
- Recommended Wheels:
- 17x8.5" w/ 5.75" backspace (25mm offset)
- 18x9" w/ 6.00" backspace (25mm offset)
- Recommended Tires:
- 33x11.25"
- (Larger tires may fit with trimming and modifications)

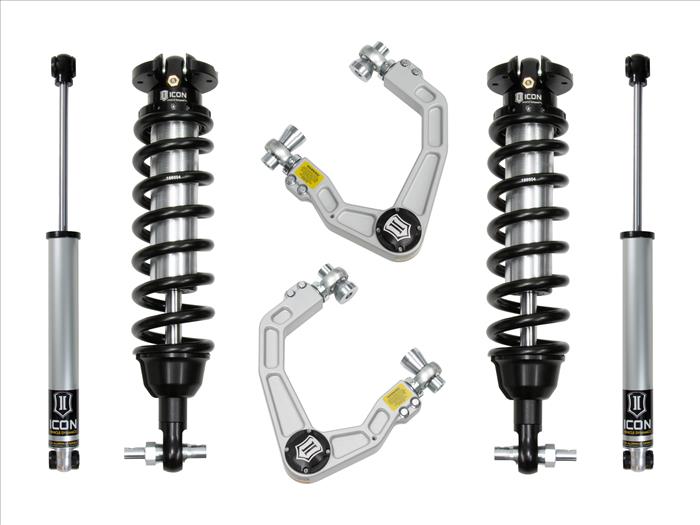

📦 What’s Included (What’s in the Box)
- Front Components
- Extended-travel 2.5 Series coilover kit w/ internal reservoirs (PN 91255)
- Billet aluminum upper control arm kit w/ Delta Joints – aluminum knuckle only (PN 98520DJ)
- Rear Components
- 2.0 Aluminum Series rear shocks, 0–1.5" lift range (PN 96519) x2
- Additional
- All required mounting hardware
🛡 Warranty
- ICON Delta Joint: 5-year limited warranty
- ICON fabricated components & coil springs: Lifetime warranty against breakage or manufacturer defect
- Shocks: Fully serviceable and rebuildable
⚠️ Fitment Notes
- Ford Ranger (2019–2021)
- 2WD & 4WD
- Aluminum knuckle models only
⚠️ Fitment Notes
- Not compatible with Ranger Raptor. Ranger XLT or Lariat models equipped with the Tremor Package have a reduced front lift range of 0–2.5". Minor trimming required for recommended tire sizes. Larger tires may require additional trimming or modifications. Professional installation and alignment are recommended.
