🧾 Overview

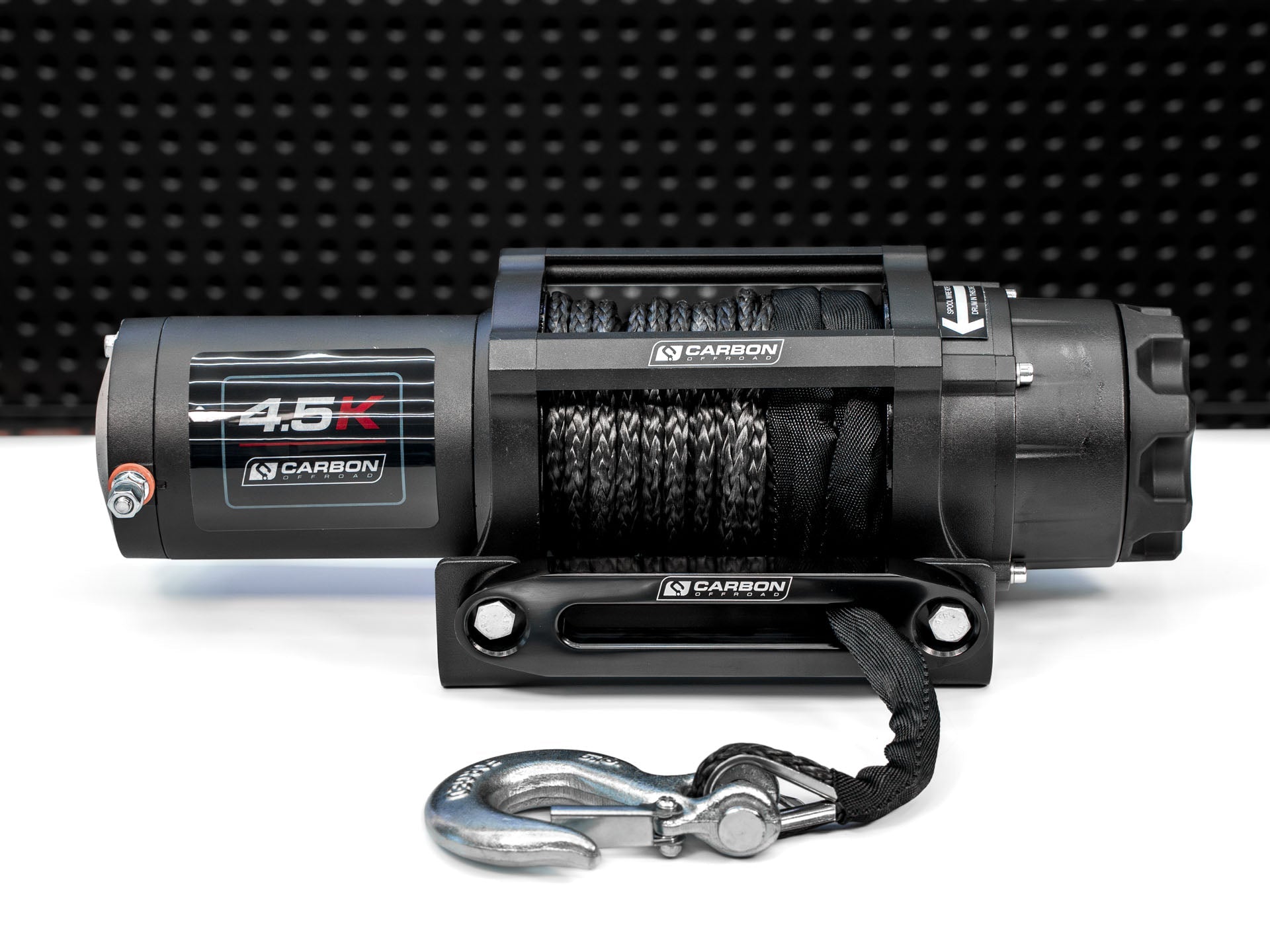

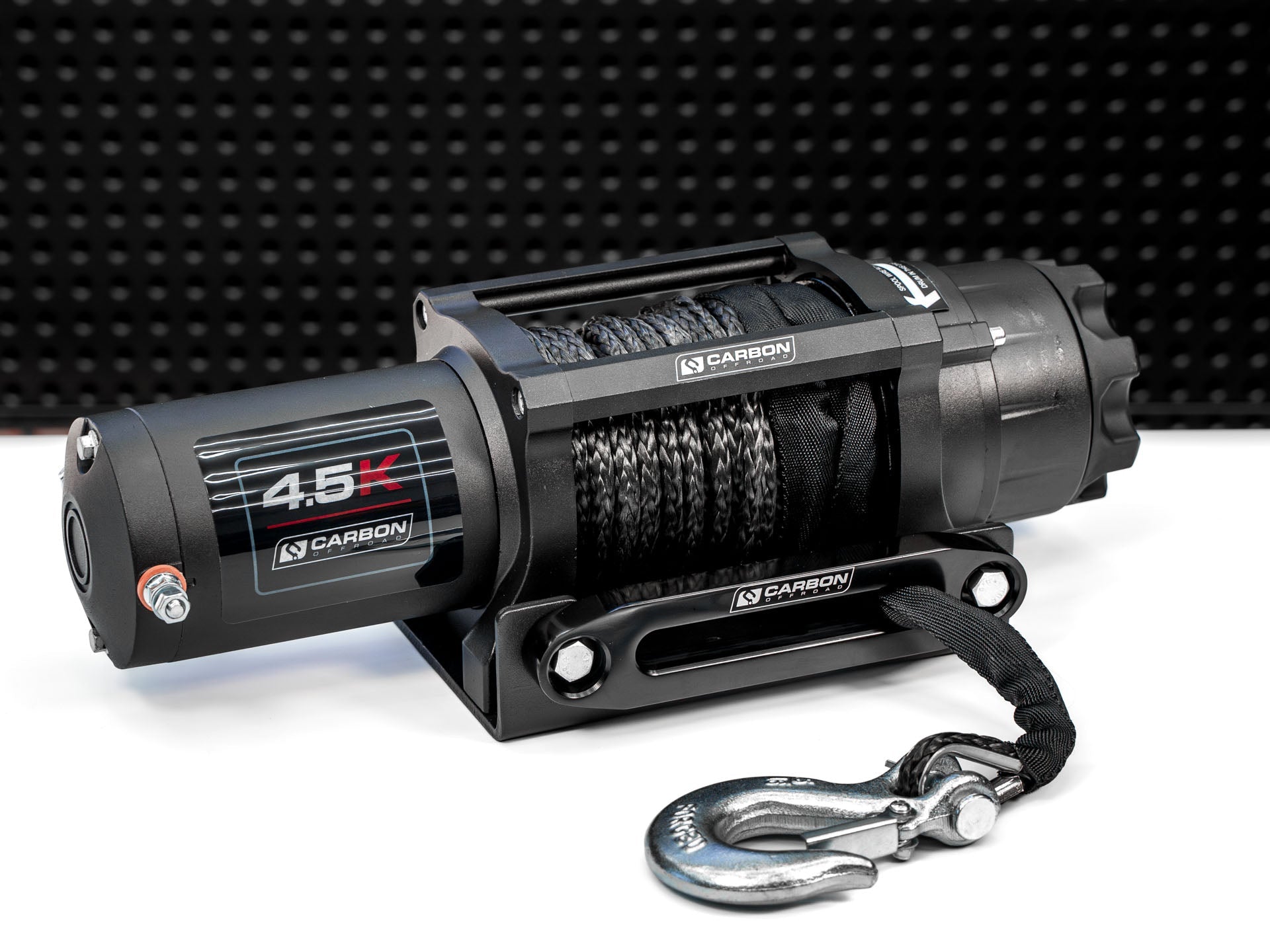

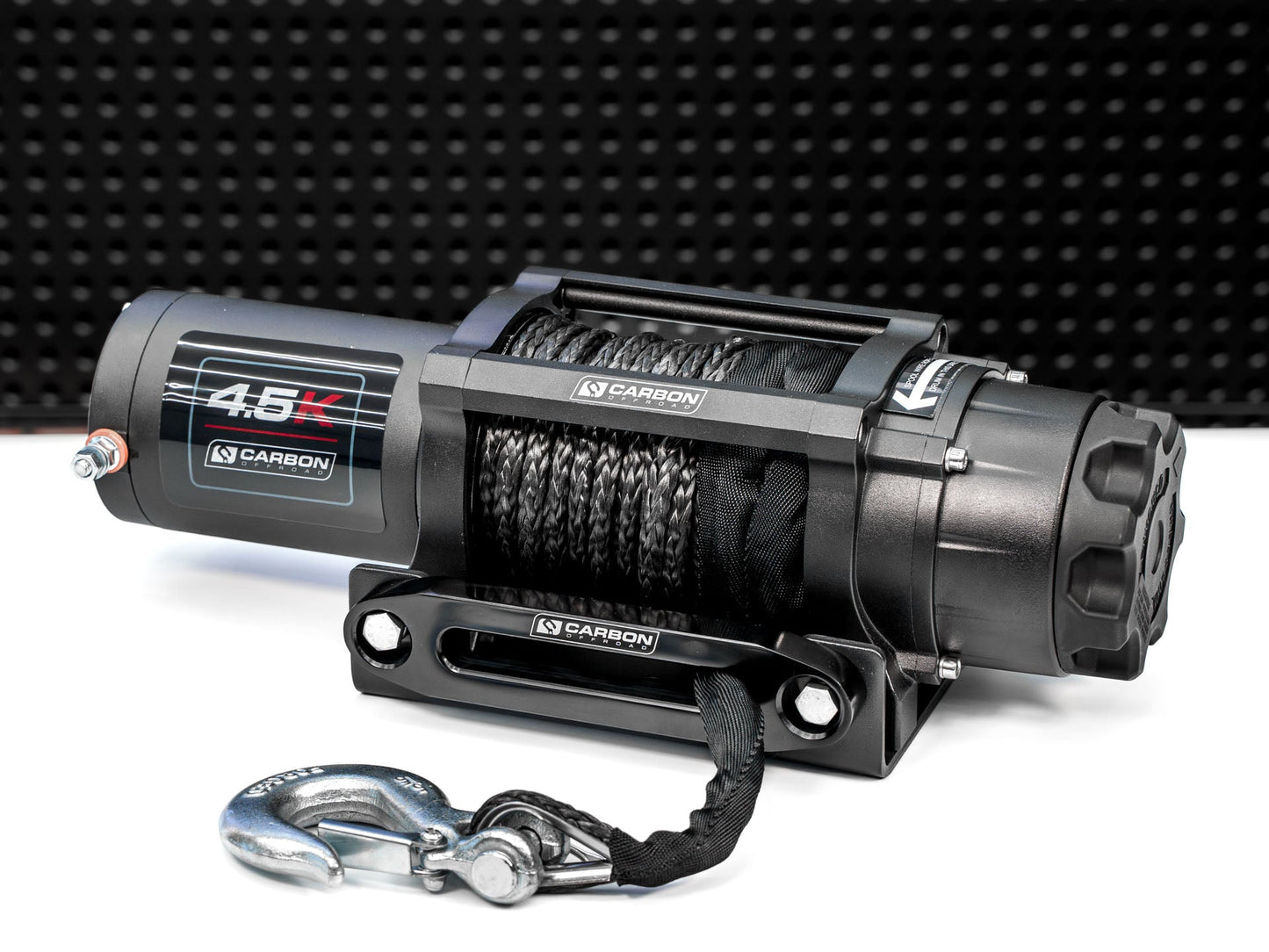

The Carbon 4,500 lb ATV/Trailer Winch is a compact, high-performance recovery and utility solution designed for ATVs, UTVs, trailers, and light-duty pulling applications where versatility and convenience are key.
Built with a durable motor and compact housing, this winch delivers 4,500 lb of pulling capacity—making it ideal for loading equipment, recovering small vehicles, or handling utility tasks. It features a synthetic rope setup for safer handling and reduced weight, along with both wireless and wired control options for flexible operation.
With an IP66-rated sealed design and efficient gear system, this winch is built to handle mud, water, and tough outdoor conditions while maintaining consistent performance.
✔ 4,500 lb rated line pull for ATV, UTV, and trailer use
✔ Synthetic rope for lightweight and safer operation
✔ Wireless remote for convenient control
✔ Compact design for versatile mounting applications
✔ IP66-rated sealing for water and dust resistance
🛠 Installation
- Requires ATV/UTV mounting plate or trailer mounting surface.
- Electrical wiring required to battery or power source.
- Estimated install time: ~1–2 hours
📌 Specs
📌 Key Features & Benefits
- Compact Utility Design – Small footprint allows installation on trailers, racks, and tight mounting areas.
- Synthetic Rope Advantage – Lightweight and safer than steel cable during operation.
- Wireless Control System – Enables operation from a distance for safer and easier use.
- Sealed Construction – IP66 rating protects against dust and water exposure.
- Versatile Applications – Ideal for loading equipment, pulling ATVs, and general utility tasks.
📘 Specifications
- Brand: Carbon Offroad
- Product Type: ATV/UTV / Trailer Winch
- Rated Line Pull: 4,500 lb
- Rope Type: Synthetic Rope
- Motor: Approx. 1.9 HP
- Gear Train: Planetary (~176:1 ratio)
- Rope Length: Approx. 43 ft
- Waterproof Rating: IP66
- Control Type: Wireless Remote + Wired Backup
- Installation Type: Bolt-On
- Sold As: Single
📦 What’s Included (What’s in the Box)
- Winch Components
- (1) 4,500 lb Winch
- Synthetic Rope
- Hook
- Control Components
- Wireless Remote
- Wired Remote
- Control System
- Mounting Components
- Fairlead
- Mounting Hardware
🛡 Warranty
- Carbon Offroad Limited Warranty
⚠️ Fitment Notes
- Universal (ATV / UTV / Trailer / Utility Applications)
⚠️ Fitment Notes
- ❗ Designed for ATV, UTV, trailer, and light-duty applications (NOT for full-size vehicles)
- ❗ Requires compatible mounting plate or winch mount
- ❗ Synthetic rope requires routine inspection and care
- ❗ Ideal for loading, utility work, and light recovery—not heavy vehicle recovery
