🧾 Overview

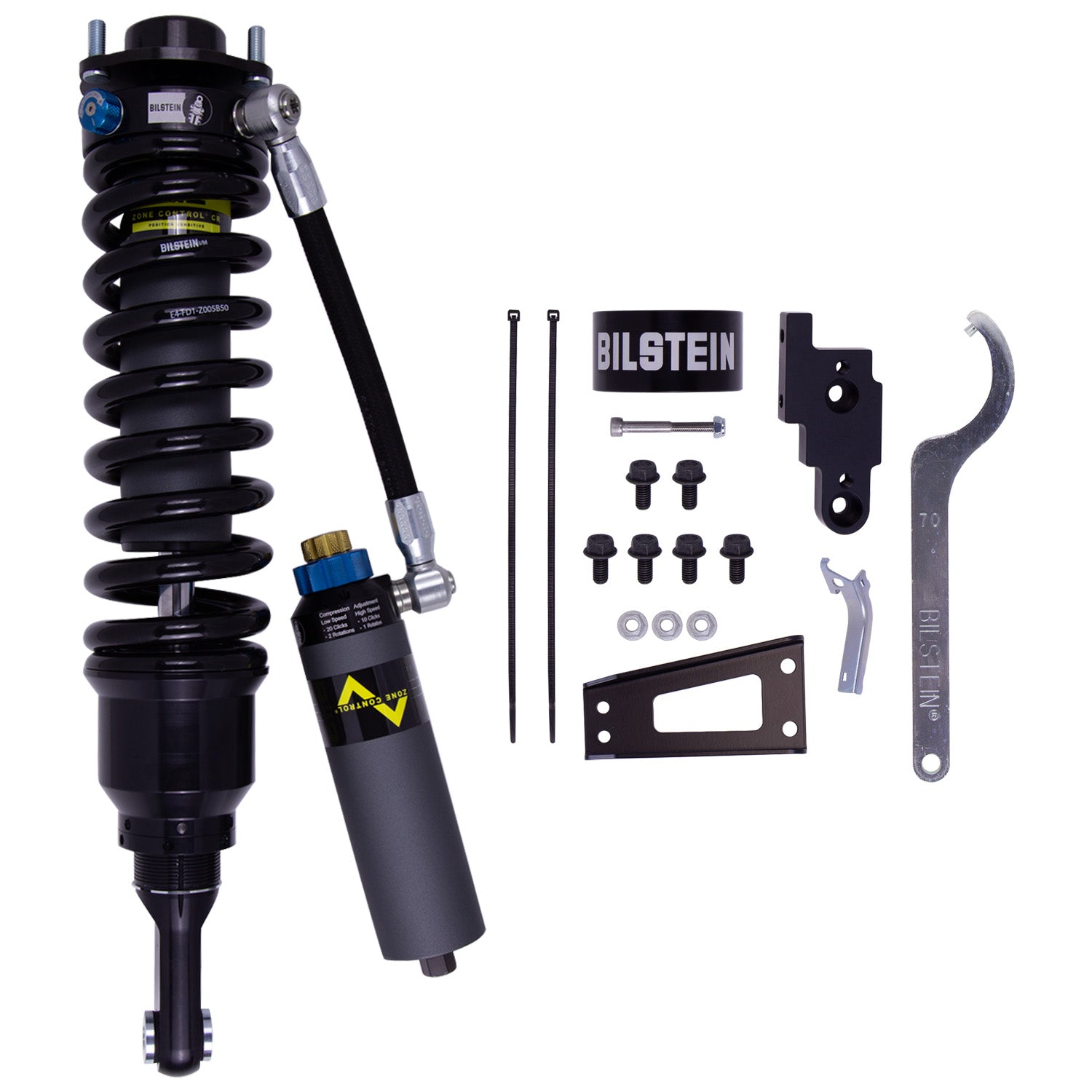

The Bilstein B8 8112 ZoneControl CR-DSA+ Front Right Coilover is a direct-fit, position-sensitive, dual-speed adjustable coilover shock engineered for 2005–2023 Toyota Tacoma models. Designed for drivers who demand precise control on and off road, this advanced coilover combines daily-driving comfort with the ability to handle aggressive suspension inputs in demanding terrain.
Featuring ZoneControl CR technology with Dual Speed Adjustability (DSA+), the B8 8112 uses a triple-piston design to deliver three stages of compression valving and two stages of rebound valving. Tool-free click adjusters allow fine tuning of low-speed and high-speed compression, while the adjustable internal hydraulic bump stop (JCO) adds control during hard bottom-out events. Ride height is adjustable via a threaded spring seat, providing additional front lift depending on configuration.
✔ Position-sensitive damping with dual-speed adjustability
✔ Ride height adjustable coilover design
✔ Remote reservoir for improved cooling and consistency
✔ Tuned specifically for Tacoma front suspension performance
🛠 Installation
- Direct bolt-on replacement for factory front right suspension
- Uses OEM mounting locations

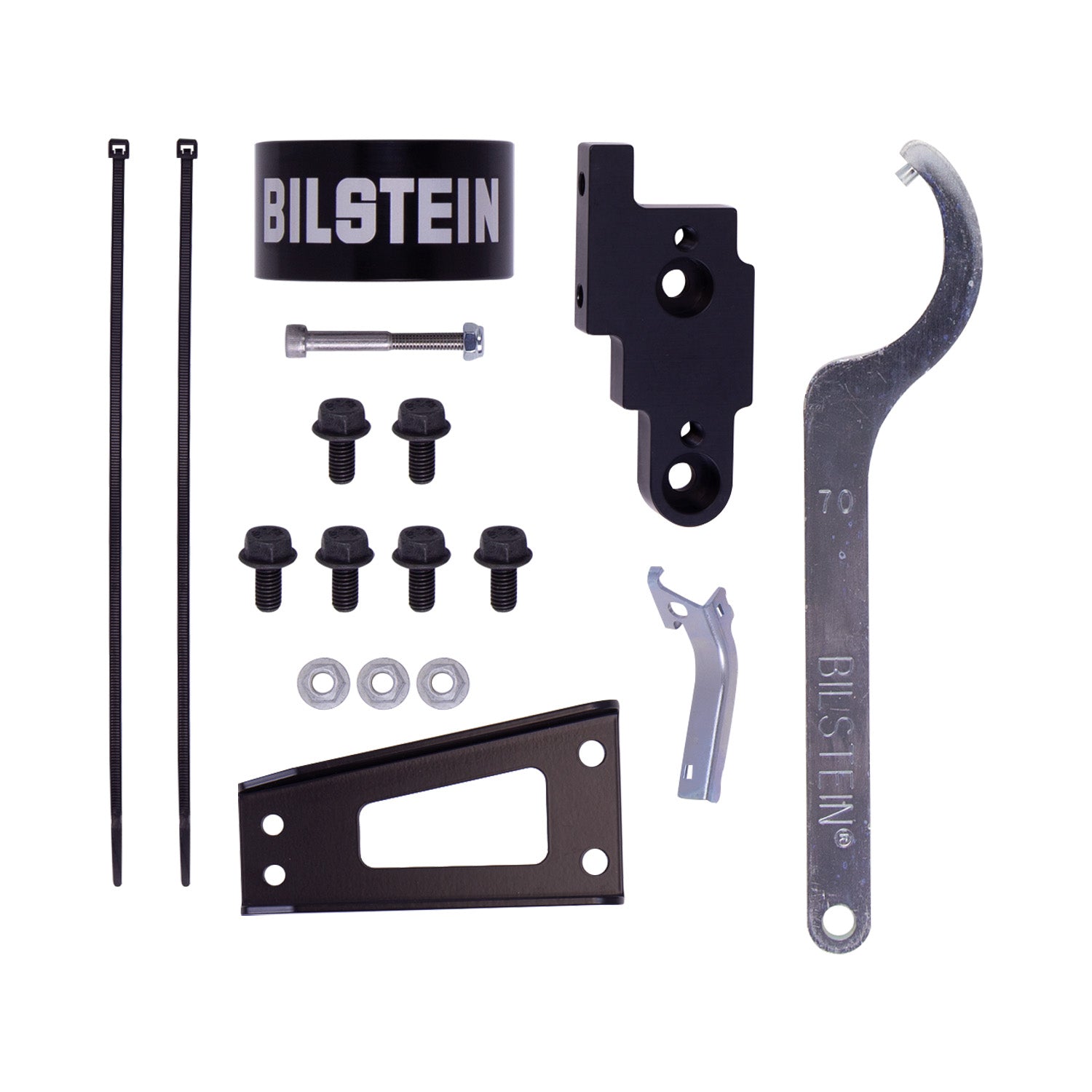

- Includes bolt-on anodized reservoir chassis mount
- Ride height adjustable via threaded spring seat
- Aftermarket upper control arms required
- Professional installation and alignment recommended
📌 Specs
- Position: Front Right
- Series: Bilstein B8 8112
- Technology: ZoneControl CR-DSA+
- Shock Type: Coilover with remote reservoir
- Body Diameter: 60mm
- Adjustability:
- Dual Speed Compression (low & high speed)
- Position-sensitive damping
- Adjustable internal hydraulic bump stop (JCO)
- Valving Design:
- 3 stages of compression valving
- 2 stages of rebound valving
- Ride Height Adjustment: 0.9–2.6″ front lift
- Reservoir: Remote, with bolt-on anodized chassis mount
⚠️ Fitment Notes
- 2005–2023 Toyota Tacoma
- Front right corner module only
- Provides 0.9–2.6″ front lift
- Aftermarket upper control arms required
- Bilstein B8 Control Arm Kit #51-304683 recommended
- Corner-specific — must match left/right orientation
