🧾 Overview
The Bilstein B8 6112 Suspension Kit for the 2003–2009 Toyota 4Runner and 2005–2023 Toyota Tacoma is designed to increase front ride height, improve damping control, and support larger tire fitment. This direct-fit front suspension system combines Bilstein’s proven 60mm monotube shock design with matched coil springs for improved on- and off-road performance.
Multiple snap-ring grooves allow adjustable front lift from 1.3–3.6 inches (application dependent), providing flexibility for leveling or added clearance. The large 60mm digressive piston enhances damping response and stability across varied terrain while maintaining daily drivability.
✔ Adjustable 1.3–3.6" front lift (application dependent)
✔ 60mm digressive piston for improved damping control
✔ Direct-fit spring and shock kit
✔ Increased wheel travel and ground clearance
✔ Designed for trucks without X-REAS suspension
🛠 Installation
- Direct-fit front suspension kit using factory mounting locations. Snap-ring grooves allow ride height adjustment prior to assembly. Professional installation and post-install alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- 60mm monotube shock body increases oil capacity and damping consistency
- Digressive piston design improves ride stability and off-road control
- Multiple snap-ring grooves allow adjustable ride height
- Custom-matched cold wound coil springs ensure balanced suspension performance
- Billet aluminum spring seats enhance strength and durability
- Direct bolt-on installation
📘 Specifications
- Brand: Bilstein
- Series: B8 6112
- System Type: Front Suspension Kit
- Lift Height: 1.3–3.6 inches adjustable (application dependent)
- Shock Diameter: 60mm
- Shock Type: Monotube with digressive piston
- Installation Type: Direct fit / bolt-on

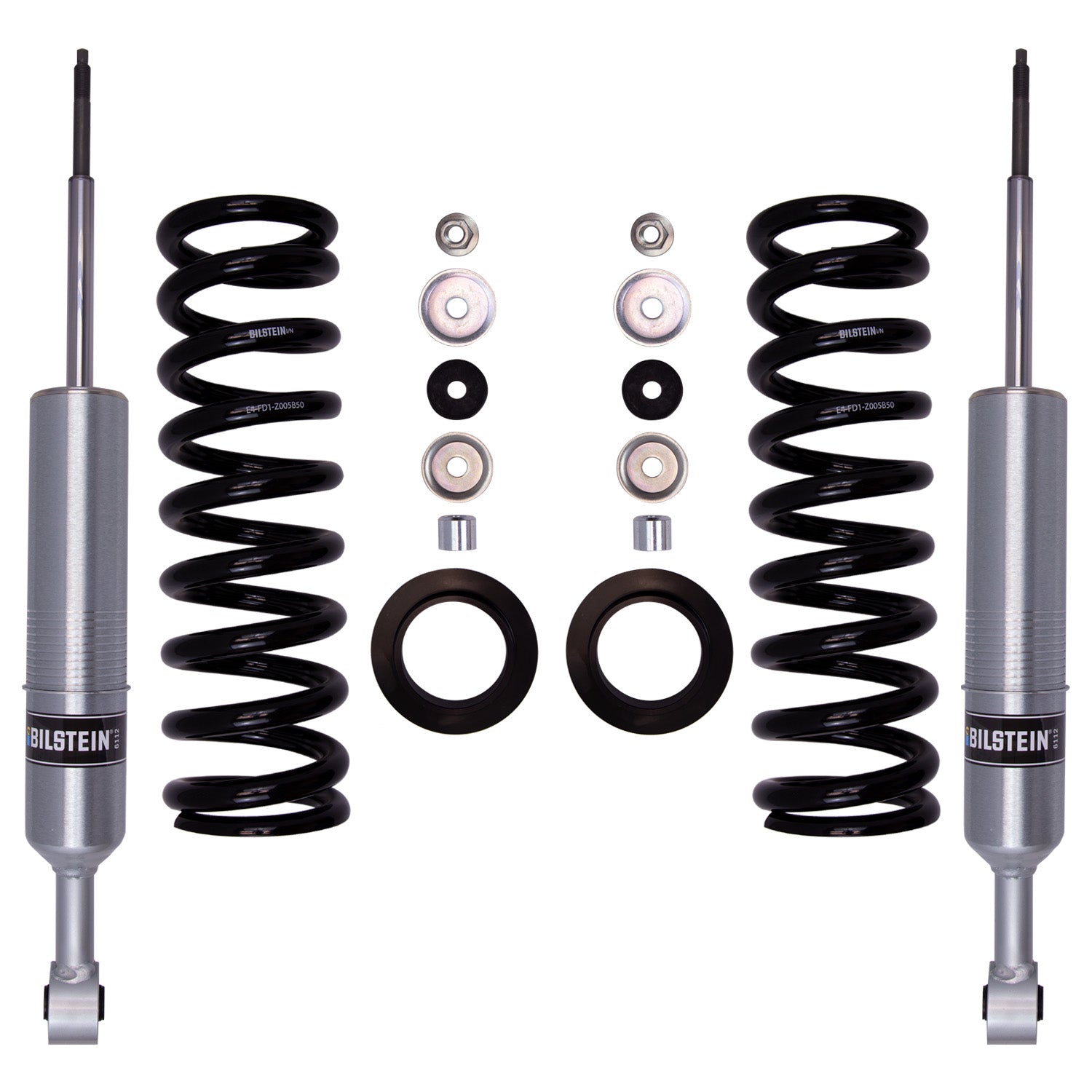

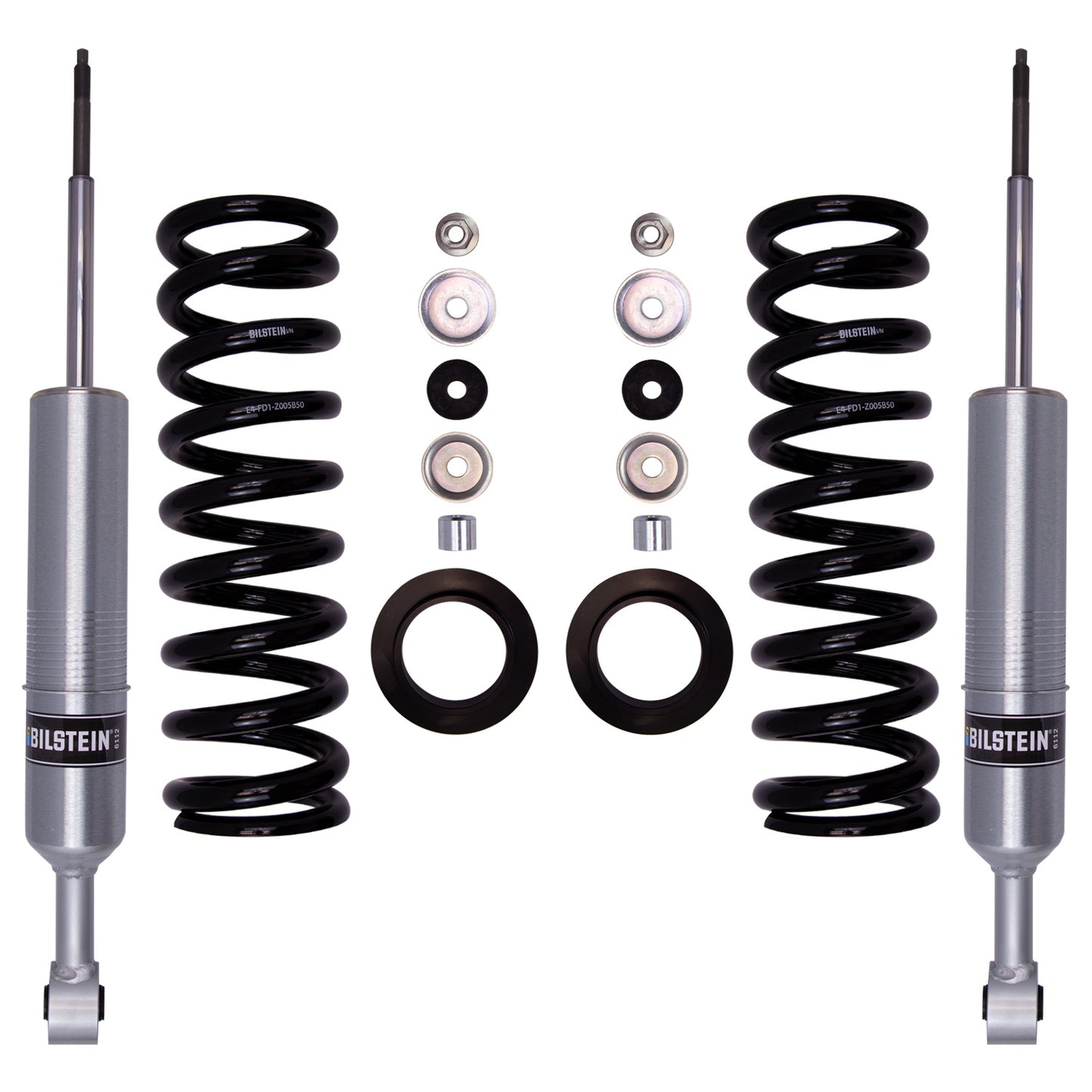

📦 What’s Included (What’s in the Box)
- (2) 60mm Front Shock Absorbers
- (2) Custom-Matched Cold Wound Coil Springs

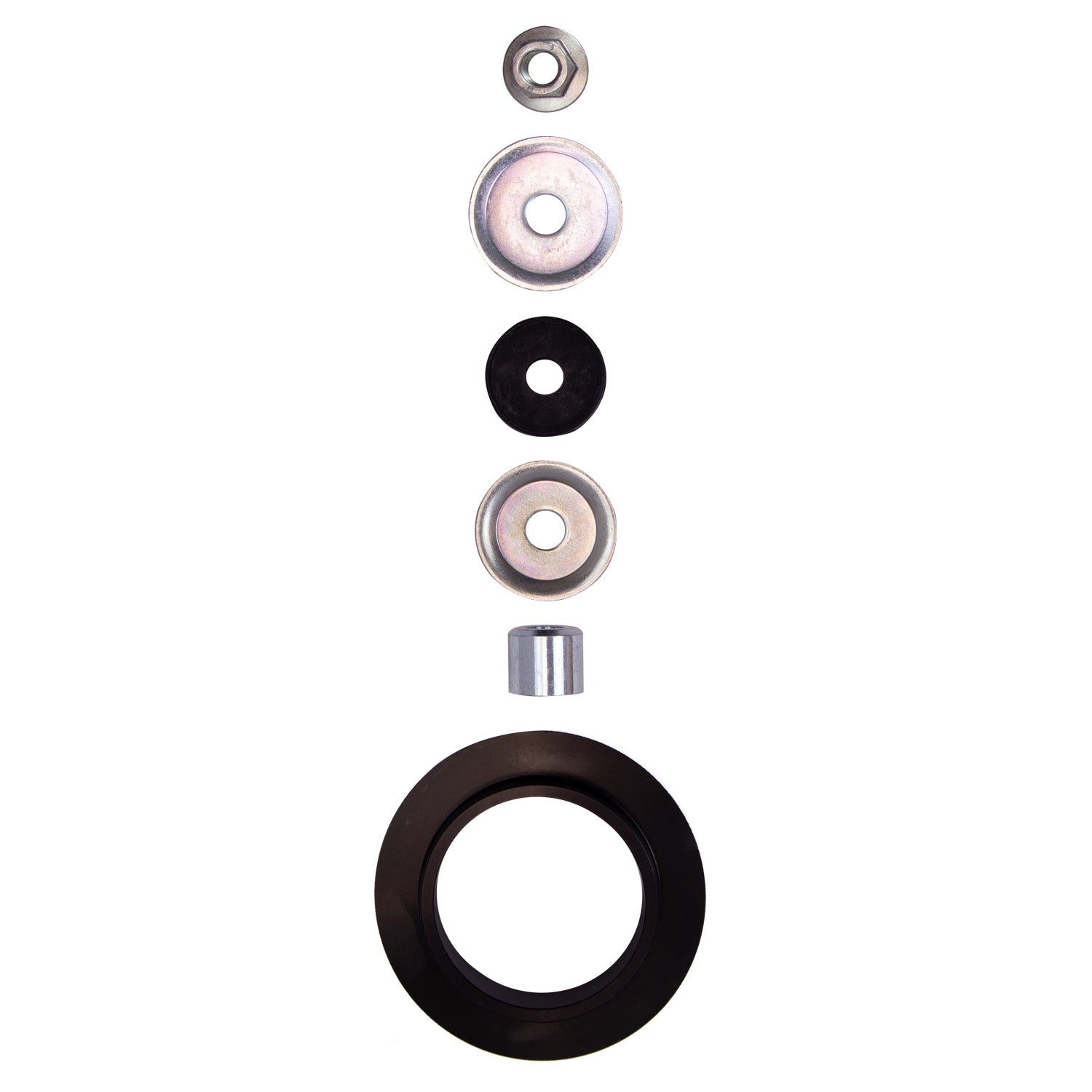

- (2) Billet Aluminum Spring Seats
🛡 Warranty
- Manufacturer-backed warranty provided by Bilstein.
⚠️ Fitment Notes
- Toyota 4Runner
- 2003–2009 Toyota 4Runner (Without X-REAS Suspension)
- Toyota Tacoma
- 2005–2023 Toyota Tacoma
⚠️ Fitment Notes
- Front suspension kit only. Not compatible with vehicles equipped with X-REAS suspension. Lift height varies depending on vehicle configuration and spring seat position. Professional installation and alignment are recommended after installation.
