🧾 Overview
The Bilstein B8 6112 Front Suspension Kit for the 2021–2024 Ford Bronco is designed to increase ground clearance, improve wheel travel, and enhance overall damping control. Built around Bilstein’s proven 60mm monotube shock design with matched coil springs, this kit delivers improved stability both on-road and off-road.
Multiple snap-ring grooves allow adjustable front lift from 0.6–2.1 inches, depending on application and spring seat position. The large 60mm digressive piston improves damping response while maintaining daily drivability and suspension balance.
✔ Adjustable 0.6–2.1" front lift
✔ 60mm digressive piston for improved damping control
✔ Direct-fit spring and shock kit
✔ Increased ground clearance and wheel travel
✔ Designed for factory mounting locations
🛠 Installation
- Direct-fit front suspension kit designed to use factory mounting locations. Snap-ring grooves allow ride height adjustment prior to final assembly. Professional installation and post-install alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- 60mm monotube shock body increases oil capacity and improves heat dissipation
- Digressive piston design enhances ride stability and control
- Multiple snap-ring grooves allow precise ride height adjustment
- Custom-matched cold wound coil springs for balanced suspension performance
- Billet aluminum spring seats provide strength and durability
- Direct bolt-on installation
📘 Specifications
- Brand: Bilstein
- Series: B8 6112
- System Type: Front Suspension Kit
- Lift Height: 0.6–2.1 inches adjustable
- Shock Diameter: 60mm
- Shock Type: Monotube with digressive piston
- Installation Type: Direct fit / bolt-on

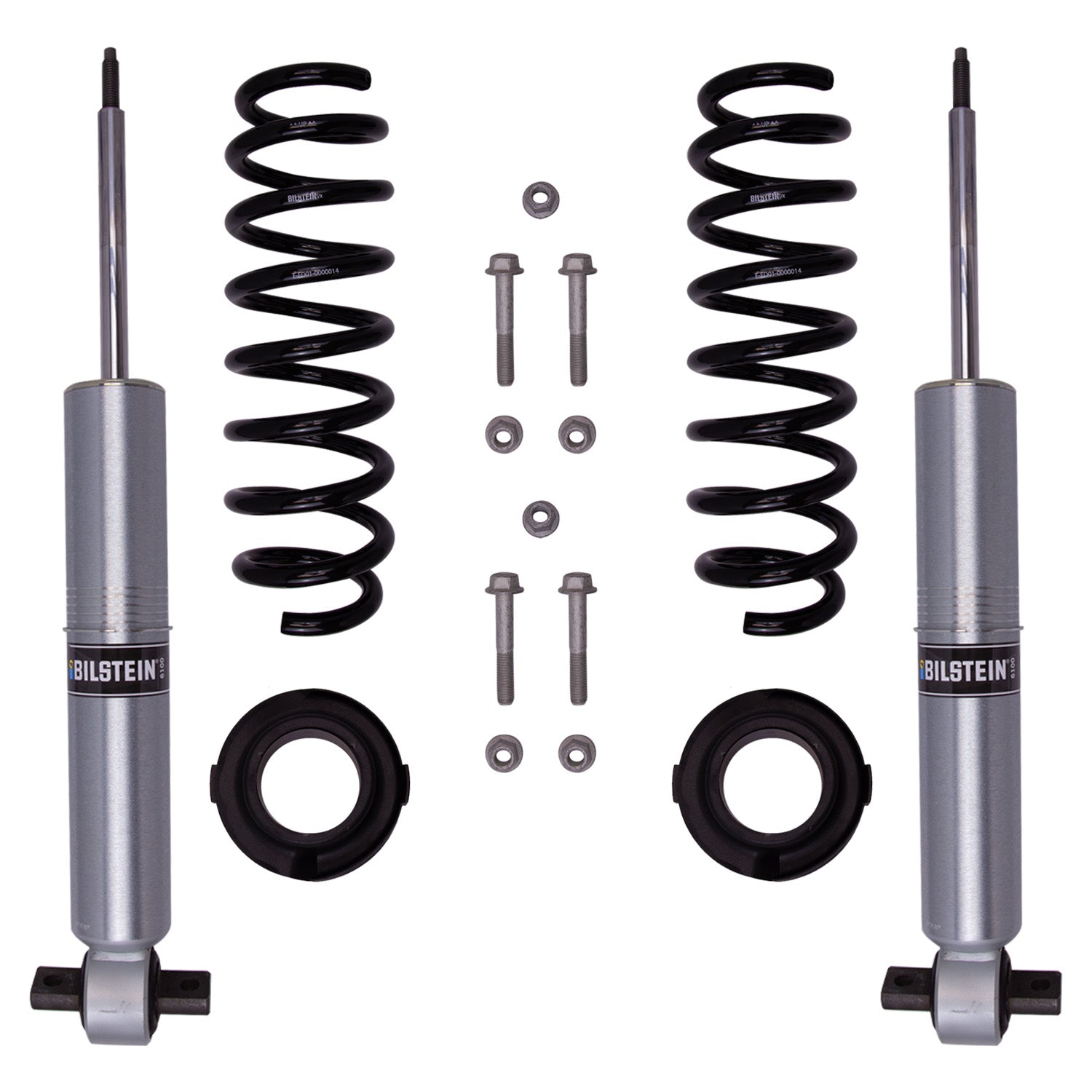

📦 What’s Included (What’s in the Box)
- (2) 60mm Front Shock Absorbers
- (2) Custom-Matched Cold Wound Coil Springs

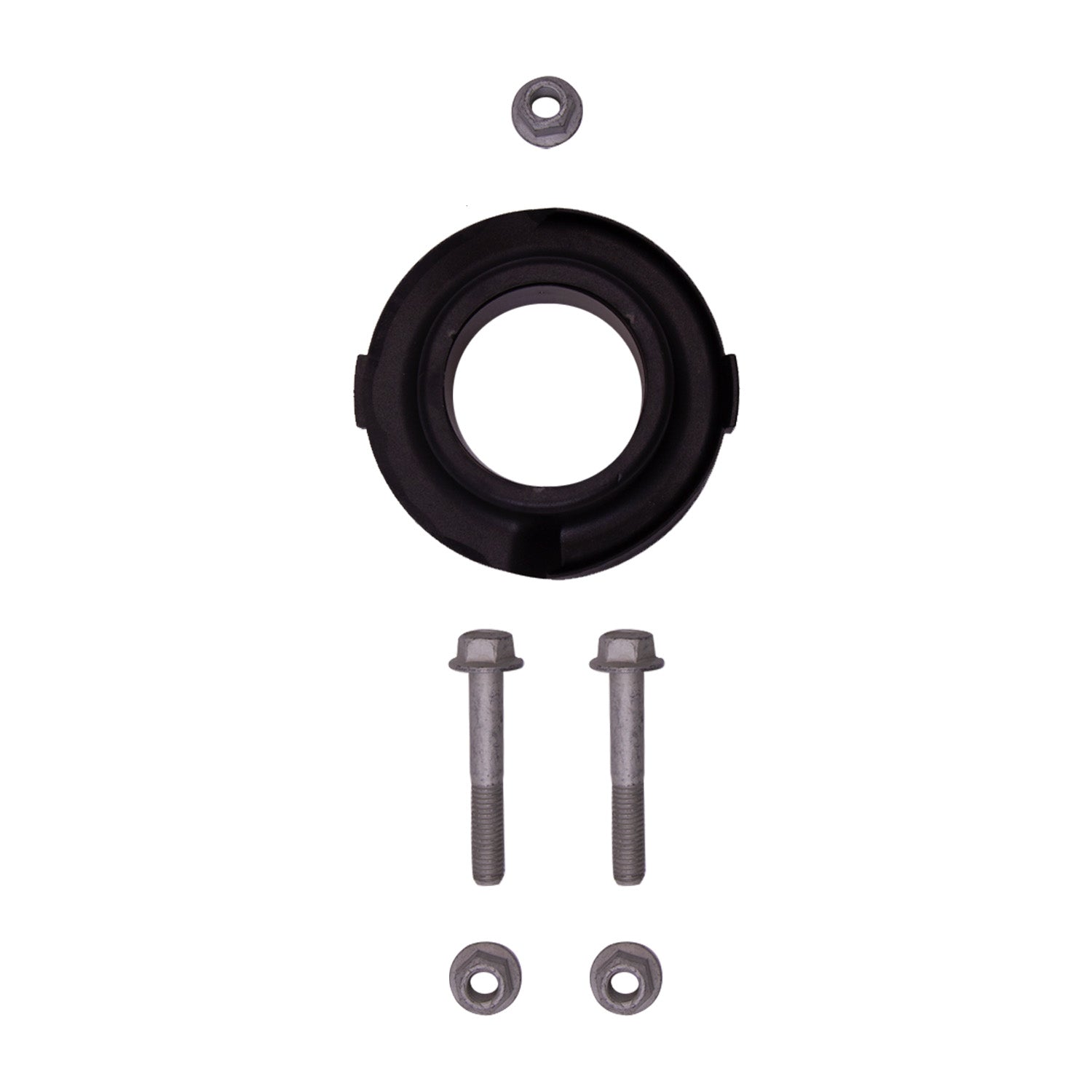

- (2) Billet Aluminum Spring Seats
🛡 Warranty
- Manufacturer-backed warranty provided by Bilstein.
⚠️ Fitment Notes
- Ford Bronco
- 2021–2024 Ford Bronco
⚠️ Fitment Notes
- Front suspension kit only. Lift height varies depending on vehicle configuration and snap-ring position. Professional installation and alignment are recommended after installation.
