🧾 Overview
The Bilstein B8 6112 Front Suspension Kit is a high-performance leveling and lift solution for 2007–2021 Toyota Tundra, designed to dramatically improve ride quality, control, and off-road capability over factory suspension.
This system features large 60mm monotube shocks paired with matched coil springs, delivering increased damping control and better response over rough terrain. The adjustable spring seat design allows for front lift from approximately 0–2.5", letting you level your truck and run larger tires without sacrificing ride quality.
Compared to spacer kits, the 6112 is a true suspension upgrade—providing better handling, reduced body roll, and improved performance both on-road and off-road.
✔ Adjustable front lift (approx. 0–2.5")
✔ 60mm monotube shocks for increased damping control
✔ Includes matched coil springs (true upgrade over spacers)
✔ Improves ride quality and off-road capability
✔ Direct bolt-on design
🛠 Installation
- Direct bolt-on replacement for factory front suspension.
- Some kits require coil assembly (spring compressor needed).
- Estimated install time: ~2–4 hours
📌 Specs
📌 Key Features & Benefits
- 60mm Monotube Shock Design – Larger shock body improves heat dissipation and damping control.
- Adjustable Ride Height – Multiple snap-ring positions allow lift tuning without spacers.
- Matched Coil Springs – Designed specifically for the shock for balanced performance.
- Improved Ride Quality – Smoother on-road ride with better off-road control.
- Bolt-On Upgrade – Direct replacement for factory front suspension components.
📘 Specifications
- Brand: Bilstein
- Product Type: Front Suspension Kit
- Vehicle: Toyota Tundra
- Years: 2007–2021
- Lift Height: ~0–2.5" (Front Adjustable)
- Shock Type: Monotube Gas
- Shock Body Diameter: 60mm
- Spring Type: Coil Spring Included
- Adjustment Type: Snap-Ring / Circlip
- Installation Type: Bolt-On
- Sold As: Pair (Front)

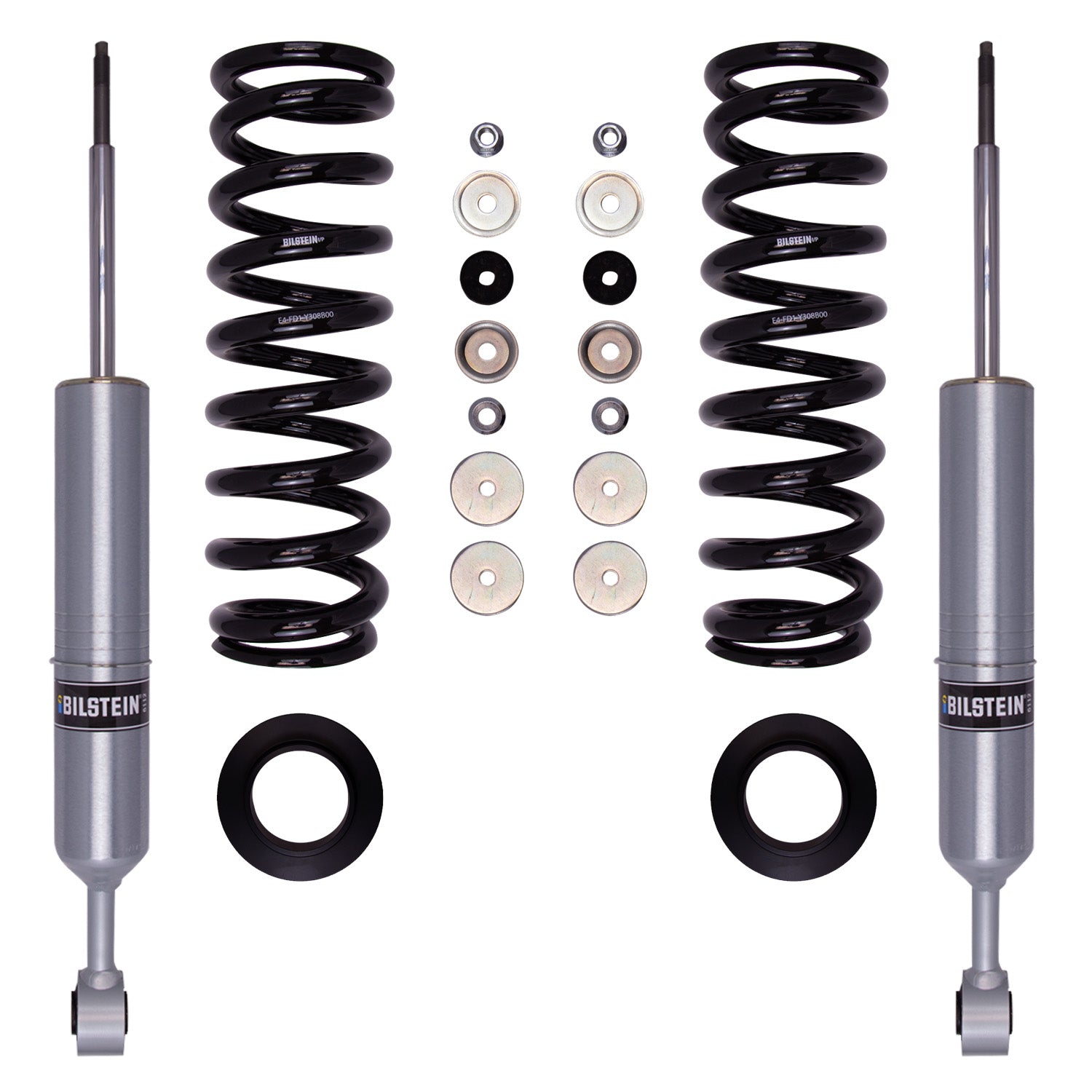

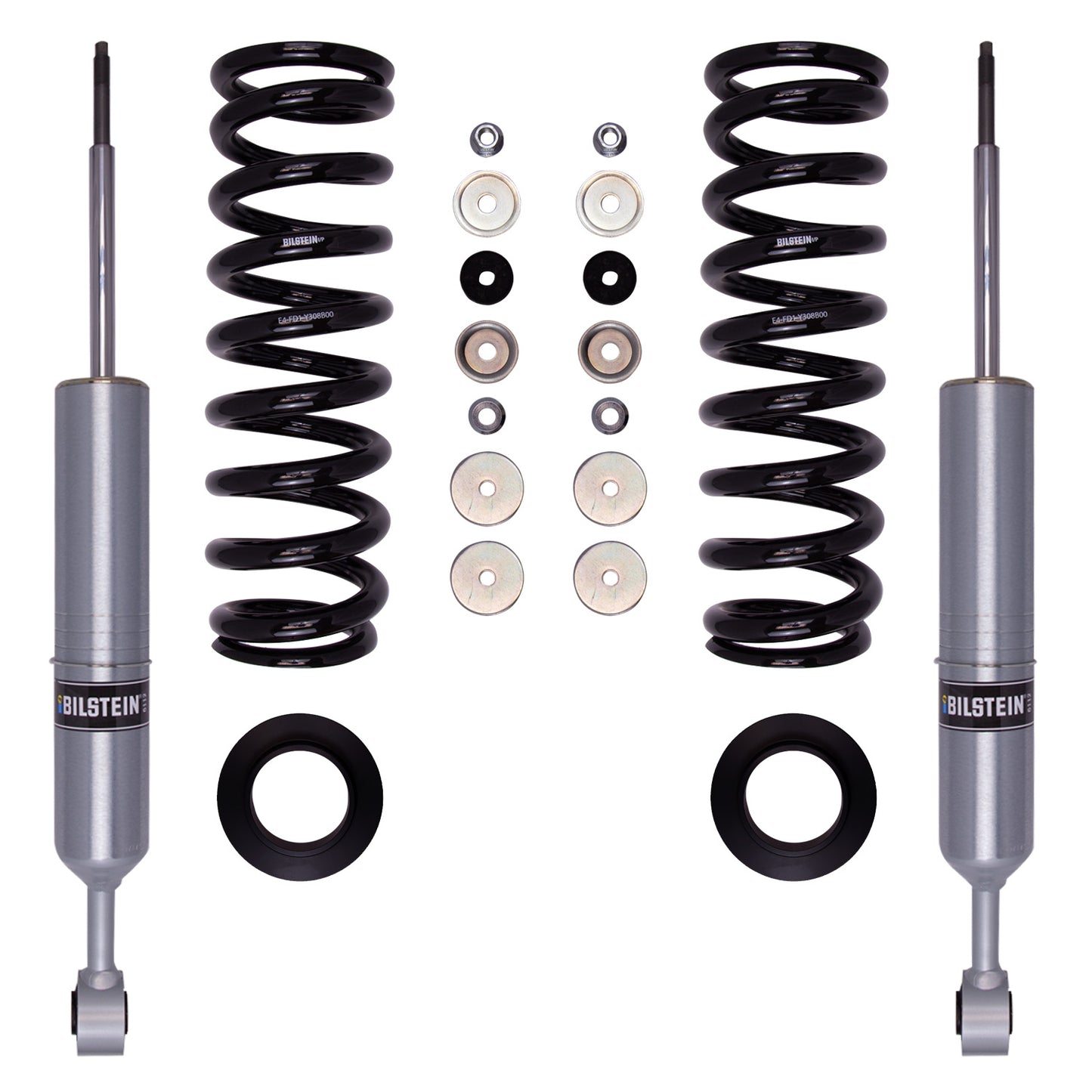

📦 What’s Included (What’s in the Box)
- Suspension Components
- (2) Bilstein 6112 Front Shocks
- (2) Matched Coil Springs

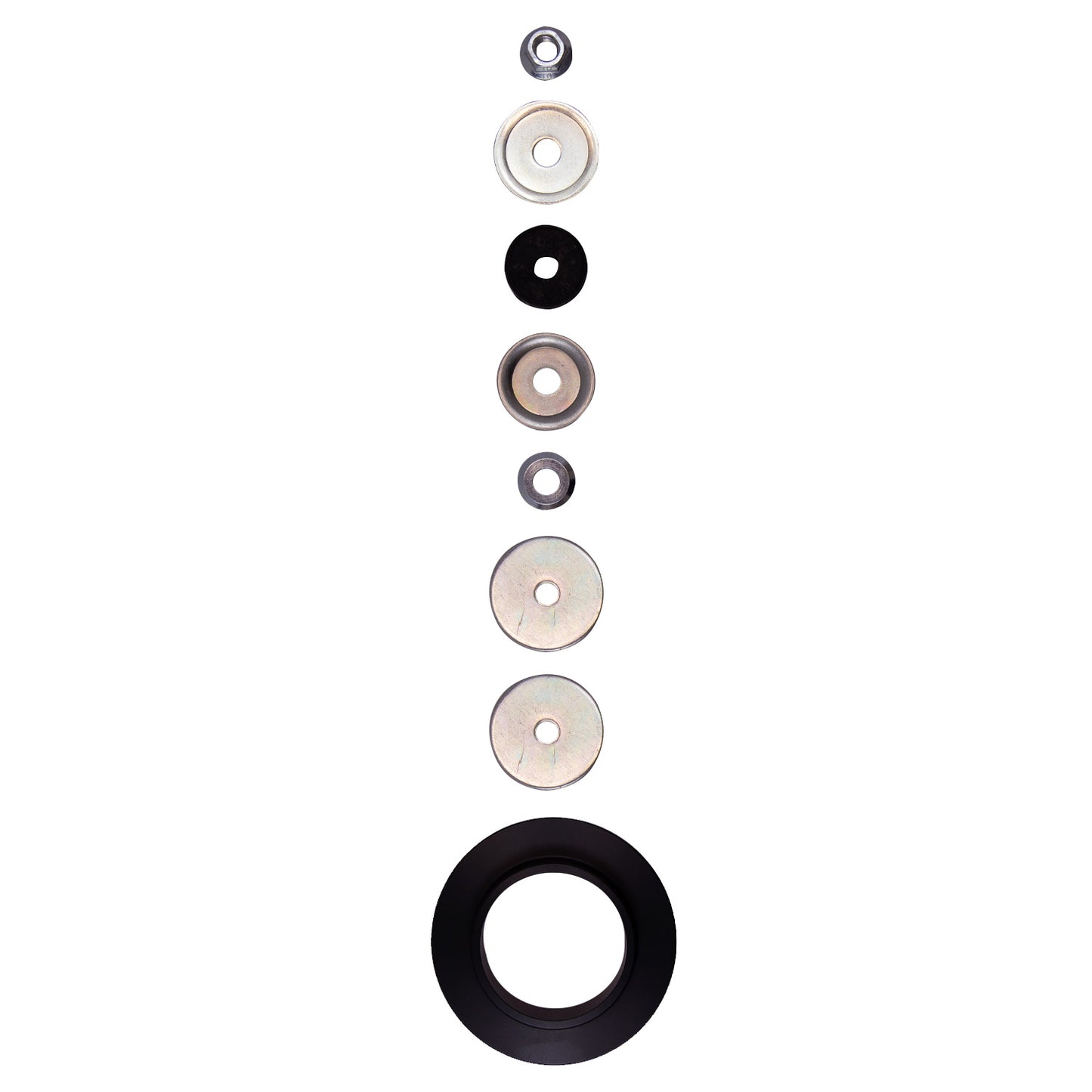

- (2) Spring Seats / Hardware
🛡 Warranty
- Bilstein Limited Lifetime Warranty
⚠️ Fitment Notes
- Toyota Tundra (2007–2021)
⚠️ Fitment Notes
- ❗ Fits 2WD and 4WD models
- ❗ Lift height adjustable via snap-ring grooves (~0–2.5")
- ❗ Larger tires typically up to ~33–35" depending on setup
- ❗ Alignment required after installation
- ❗ Some kits require coil spring assembly (compressor needed) unless pre-assembled
