🧾 Overview

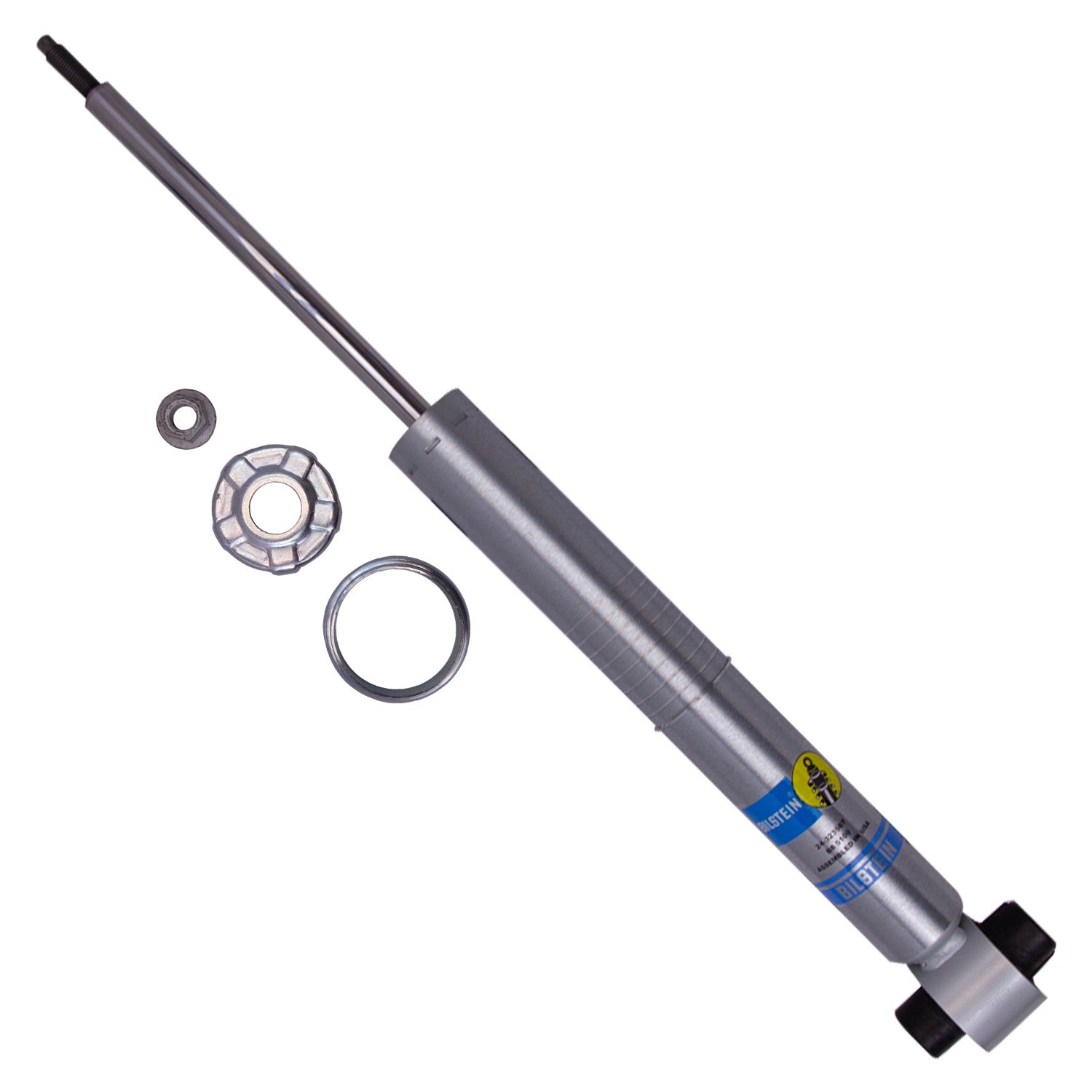

The Bilstein B8 5100 Ride Height Adjustable Rear Shock Absorber is designed to improve rear suspension compliance and allow rear ride height tuning on 2021–2024 Ford Bronco models. Featuring a high-pressure gas-charged monotube design and adjustable lower spring seat, this shock lets you tune rear ride height from 0 to ~1.4 inches of lift while delivering consistent damping performance for both street driving and rugged trail use.
✔ Provides 0–1.4″ rear lift
✔ Gas-charged monotube design for consistent damping
✔ Ideal for lifted Bronco rear suspension tuning
✔ Sold individually — most applications require (2) shocks
🛠 Installation
- Direct replacement rear shock with adjustable lower spring seat
- Adjustable spring seat allows 0–~1.4″ rear lift range
- Uses factory mounting points — no cutting or fabrication required
- DIY-friendly install with basic hand tools
- No post-installation adjustments required once set
📌 Specs
- Position: Rear
- Series: Bilstein B8 5100 Ride Height Adjustable
- Internal Design: Gas-charged monotube
- Body Design: Snap-ring grooved body (coilover style)
- Body Diameter: 2.0 inches
- Piston Diameter: 46mm
- Shaft Diameter: 18mm
- Upper Mount Type: Stem

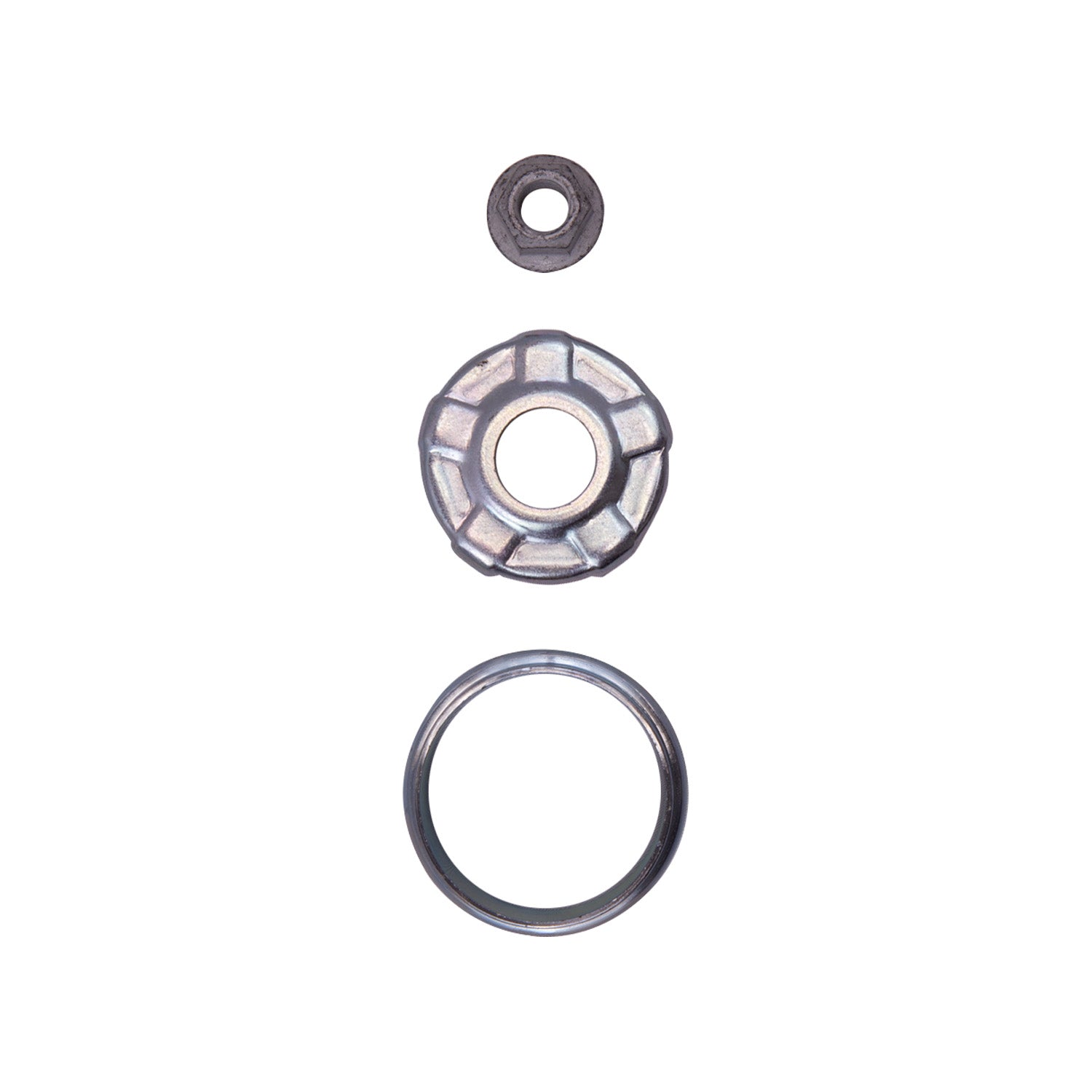

- Spring Seat Included: Yes
- Boot Included: No
- Adjustable Damping: Non-adjustable
- Lift Capability: 0–~1.4″ rear ride height adjustment
- Quantity: Price shown is for (1) shock — most applications require (2)
⚠️ Fitment Notes
- 2021–2024 Ford Bronco
- Designed for rear suspension ride height tuning
- Provides up to ~1.4″ of rear lift
