🧾 Overview

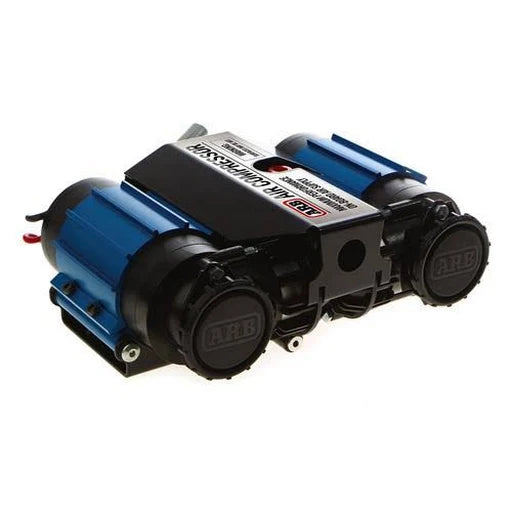

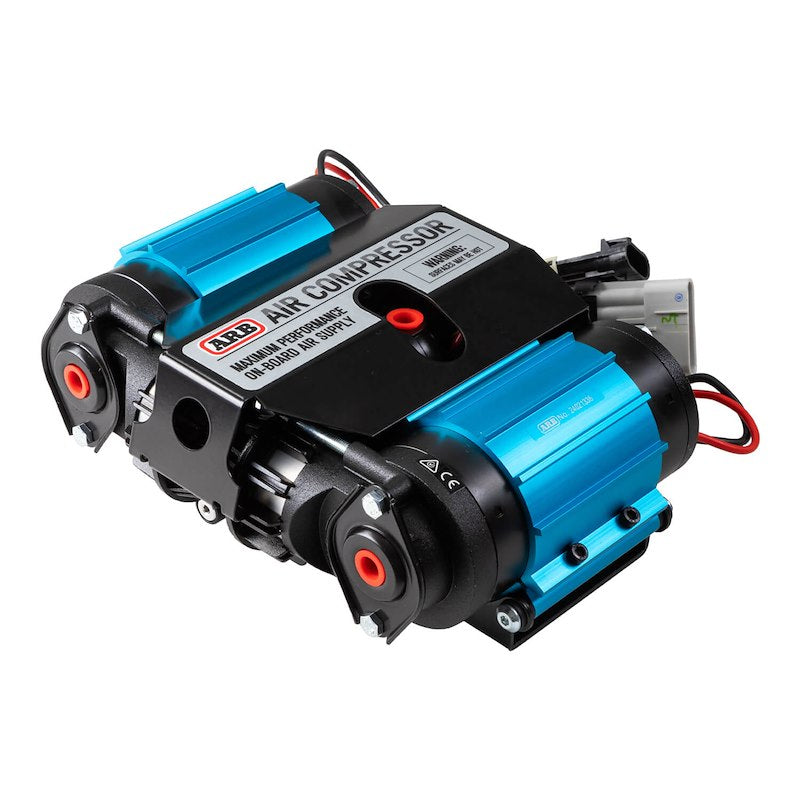

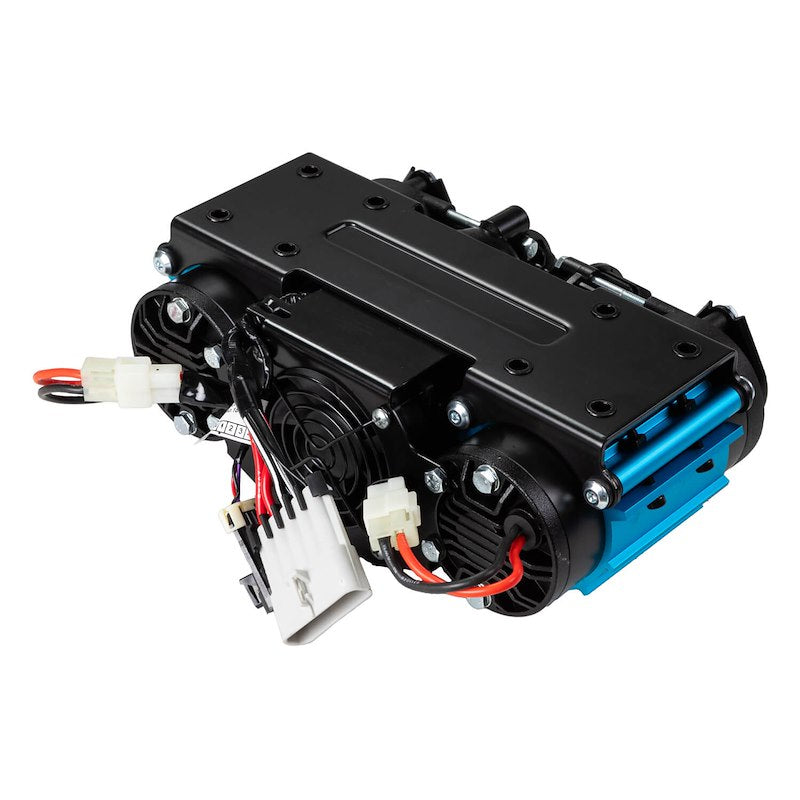

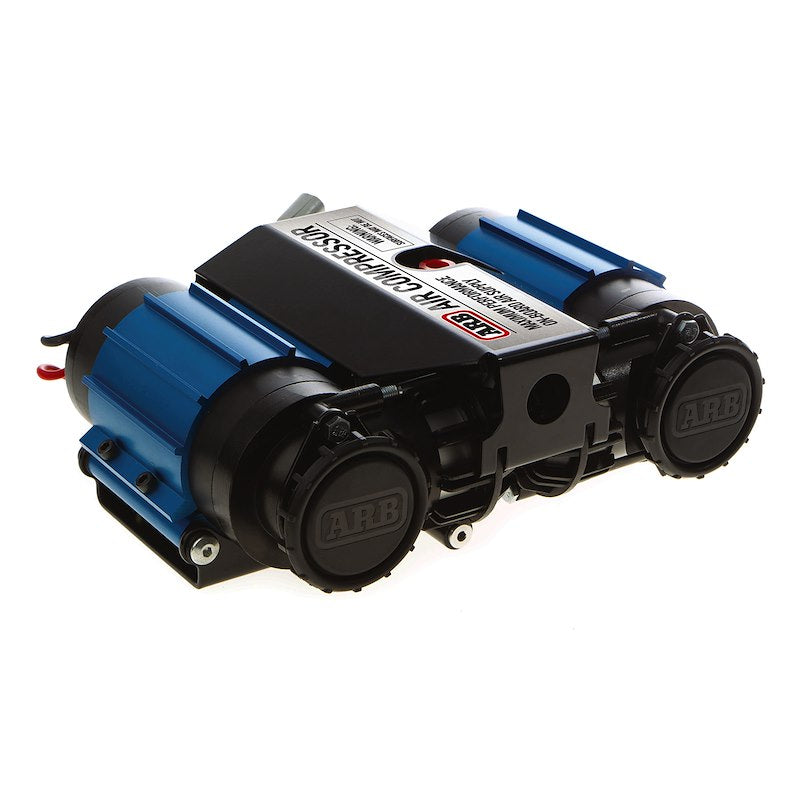

The ARB 12V Twin On-Board Air Compressor is a compact, high-output air system engineered to meet the demanding airflow requirements of off-road vehicles equipped with air lockers and air-powered accessories. Designed to operate reliably in harsh environments, this compressor delivers exceptional performance for tire inflation and ARB Air Locker activation, while remaining compact enough for permanent on-board mounting.
Featuring a 100% duty cycle and sealed construction for moisture and dust resistance, the ARB Twin Compressor is built for continuous operation in extreme conditions. Hard-anodized cylinder bores reduce friction and heat, while Teflon-impregnated carbon fiber piston seals ensure long service life and trouble-free operation.
An anodized mounting bracket dissipates heat efficiently, and integrated relays, pressure switch, and an IP55-rated brushless cooling fan actively manage heat across the electronics, motors, and cylinder heads. When paired with an optional 4-liter air tank, this compressor is capable of supporting many air tools in addition to rapid tire inflation.
✔ High-output twin motor design
✔ 100% duty cycle for continuous operation
✔ Sealed for moisture and dust resistance
✔ Designed for tires and ARB Air Locker activation
🛠 Installation

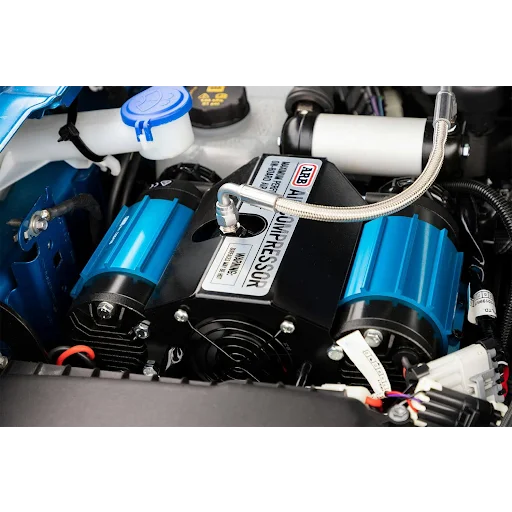

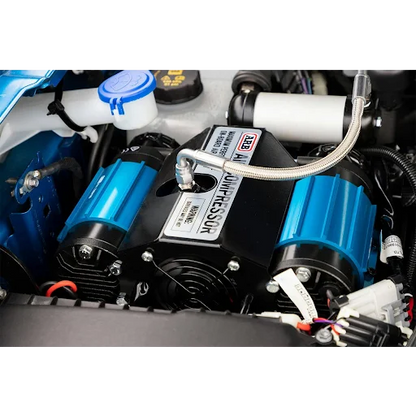

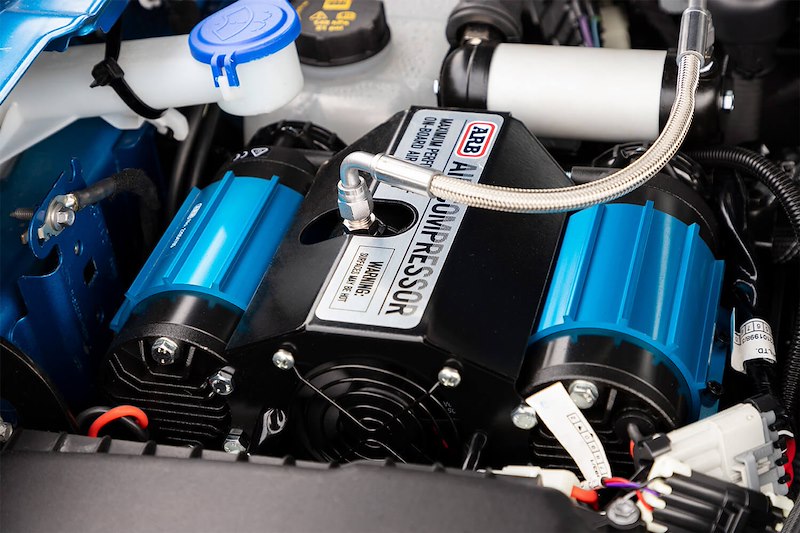

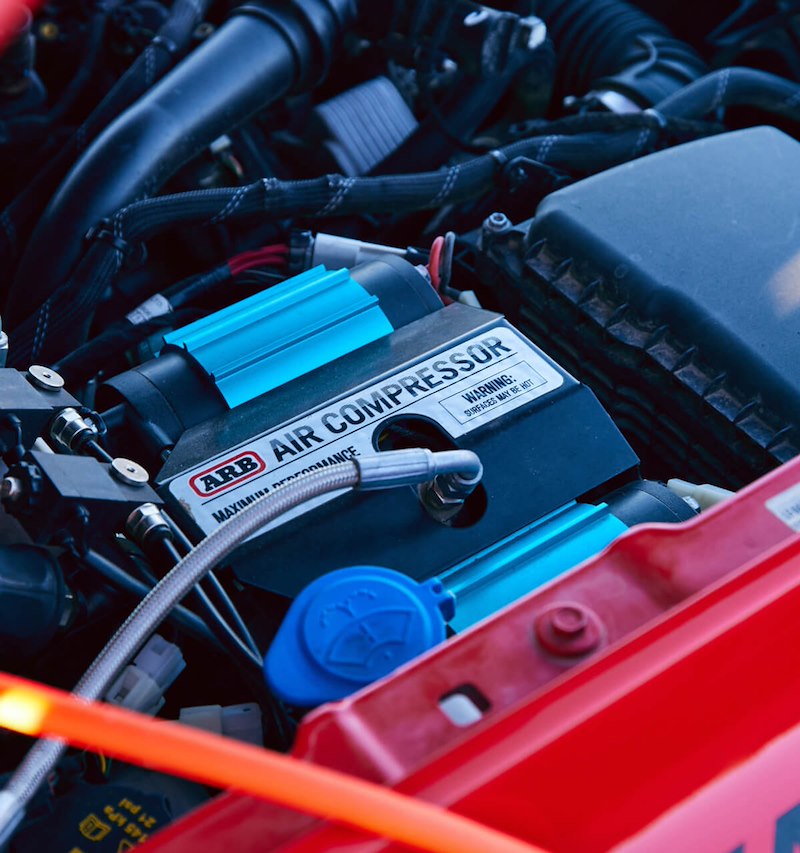

- This compressor is designed for permanent on-board installation and requires proper wiring and mounting. Vehicle-specific mounting brackets may be required depending on your application.
- Professional installation is recommended for optimal performance and reliability.
📌 Specs
- Key Features & Benefits
- Designed for tire inflation and ARB Air Locker activation (with optional accessories)
- Compact twin-motor design delivers high airflow
- 100% duty cycle for continuous use
- Sealed construction for moisture and dust resistance
- Hard-anodized cylinder bores reduce friction and heat
- Teflon-impregnated carbon fiber piston seals for long service life
- Anodized mounting bracket dissipates heat
- Integrated pressure switch and relays
- IP55-rated brushless fan cools motors, electronics, and cylinder heads
- Over-pressure safety valve equipped
- Suitable for many air tools when used with optional 4L air tank
- Twin high-output motors for rapid inflation
- Continuous-duty performance — no overheating
- Great for large off-road tires and air lockers
- Designed for permanent on-board air systems
- Engineered and tested by ARB
📐 Specifications
- Voltage: 12V
- Design: On-Board
- Maximum Pressure: 150 PSI
- Maximum Current Draw: 68.6 Amps
- Duty Cycle: 100% (60 min on / 0 min off)
- Air Flow @ 0 PSI: 6.16 CFM
- Air Flow @ 29 PSI: 4.68 CFM
- IP Rating: IP55
- Dimensions:
- Length: 10.8"
- Width: 7.5"
- Height: 4.0"
- Weight: 17.4 lbs
- Sold As: Each

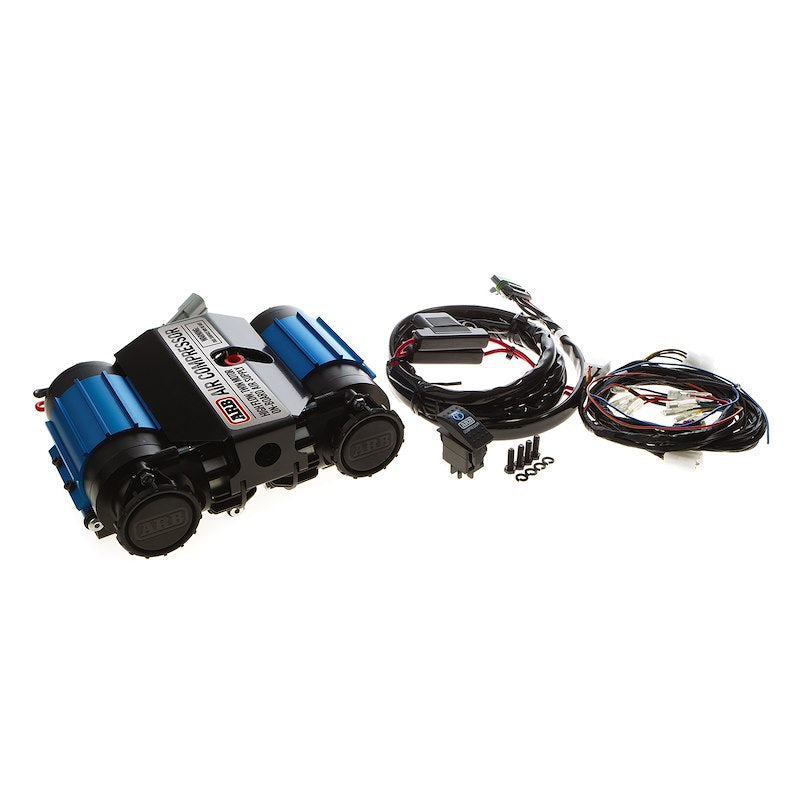

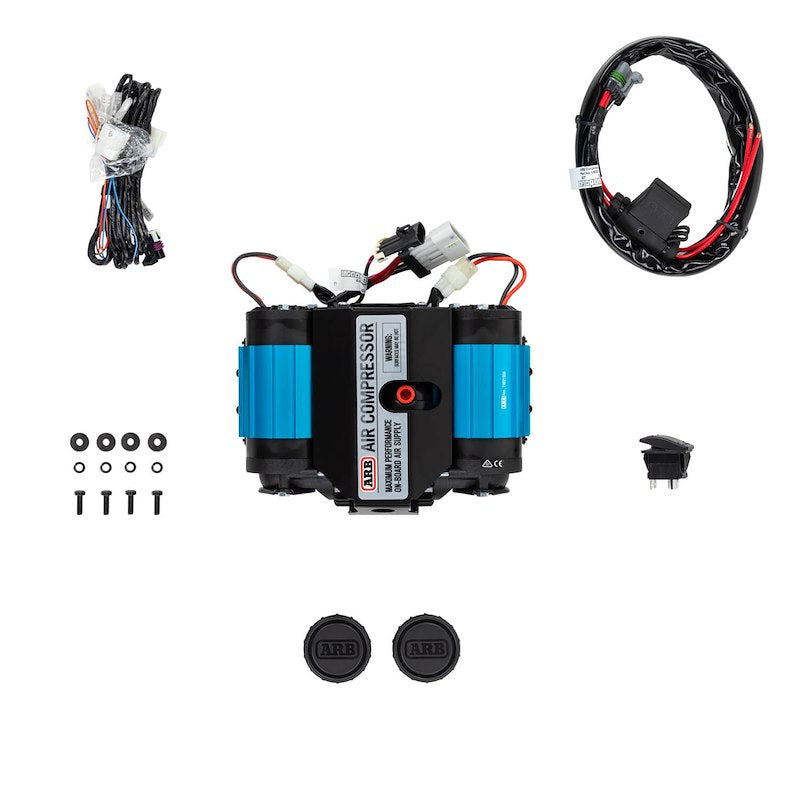

📦 What’s Included
- ARB Twin On-Board Air Compressor (12V)
- Integrated mounting bracket
- Built-in pressure switch and relays
- Installation hardware
🛡 Warranty
- 3-Year Manufacturer Warranty
- Warranty coverage provided by ARB
⚠️ Fitment Notes
- Universal Off-Road Accessory (Not Vehicle-Specific)
- Mounts to most trucks, SUVs, vans, and overland rigs with a 12 V power source
- Ideal for inflating tires, powering air tools, and activating ARB Air Lockers (manifold required for lockers)
- Confirm vehicle electrical capacity and space for mounting prior to installation
- Air Locker Manifold Kit #171503 required to accommodate attachment of Air Locker Solenoids.
