🧾 Overview
The ICON Stage 1 Suspension System for 1995.5–2004 Toyota Tacoma is designed to increase wheel travel, improve damping control, and enhance ride quality both on and off-road. This system pairs ICON’s 2.5 VS internal reservoir front coilovers with 2.0 Aluminum Series rear shocks for balanced front-to-rear performance.
Front coilovers provide 0–3” of adjustable lift to support larger wheel and tire combinations, while vehicle-specific valving ensures controlled handling and consistent performance. The result is improved capability without sacrificing everyday drivability.
✔ Complete Stage 1 front and rear suspension system
✔ Adjustable 0–3” front lift height
✔ 2.5 VS internal reservoir front coilovers
✔ 2.0 Aluminum Series rear shocks
✔ 100% bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Front ride height must be set prior to final torque.
- Alignment required after installation.
📌 Specs
📌 Key Features & Benefits
- ✔ 2.5 VS Internal Reservoir Coilovers – Increased oil capacity and damping control
- ✔ 2.0 Aluminum Series Rear Shocks – Balanced rear performance
- ✔ Vehicle-Specific Valving – Tuned specifically for Tacoma platform
- ✔ Height Adjustable Front – 0–3” lift range
- ✔ Increased Wheel Travel – Improved articulation over stock
- ✔ Fully Rebuildable & Revalveable Design
📐 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Front Shock Type: 2.5 VS Internal Reservoir Coilover
- Rear Shock Type: 2.0 Aluminum Series Monotube (Non-Reservoir)
- Front Lift Height: 0–3” Adjustable
- Rear Lift Compatibility: 0–1.5”
- Drive Type: 4WD / PreRunner
- Installation Type: Bolt-On
- Construction: 6061 CNC Machined Aluminum
- Shock Body Finish: CAD Plated (Corrosion Resistant)
- Front Shaft Size: 7/8” Hardened Chrome
- Rear Shaft Size: 5/8” Chrome Plated
- Rod Ends: FK Rod End Bearings
- Serviceability: Fully Rebuildable & Revalveable

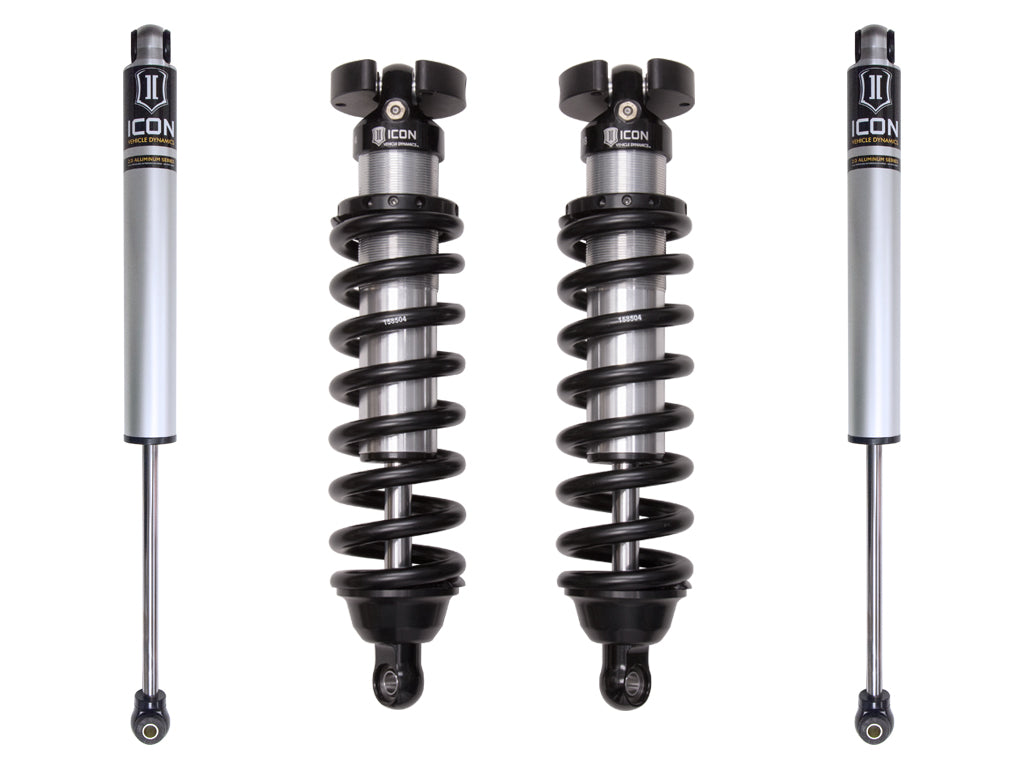

📦 What’s Included
- Front Components:
- (1) 58610 – Tacoma / 4Runner 2.5 VS Coilover Kit
- Rear Components:
- (2) 56502 – Rear 2.0 VS Shocks
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics
⚠️ Fitment Notes
- Toyota Tacoma (1995.5–2004)
- 4WD and PreRunner models
⚠️ Fitment Notes
- Not compatible with 2WD Tacoma models equipped with 5-lug wheel pattern.
- 33” x 11.50” tires recommended. Larger tires may require trimming or additional modifications.
- 700 lb/in Expedition coil option available for heavier equipped vehicles.
- Bump stop spacer kit available to increase preload beyond maximum recommended setting.
- Lift height settings based on stock-equipped vehicles.
