🧾 Overview
The ICON Stage 1 Suspension System with 3.0 Series shocks for the 2017–2020 Ford F-150 Raptor is a high-performance bolt-on upgrade designed to dramatically improve ride quality, wheel travel, and suspension control on and off the pavement. Built around ICON’s race-proven 3.0 Series shocks, this system delivers increased damping authority, superior heat management, and precise tuning capability without altering factory mounting points.
The system includes adjustable 3.0 Series front coilovers with CDC Valve technology and rear 3-tube bypass shocks, engineered specifically for the Gen 2 Raptor’s revised suspension geometry. Together, they provide controlled ride comfort at speed, improved bottom-out resistance, and consistent performance across desert, trail, and daily driving conditions.
✔ 1–3" adjustable front lift
✔ 3.0 Series front coilovers with CDC compression adjustment
✔ Rear 3-tube bypass shocks for increased wheel control
✔ Fully bolt-on, serviceable performance system
🛠 Installation
- Bolt-on installation using factory mounting points. No cutting or welding required. Fully serviceable components allow for future tuning, rebuilds, and revalving. Alignment required after installation.
📌 Specs
- Key Features & Benefits
- 3.0 Series front coilovers with 1–3" adjustable lift height
- CDC Valve with 10 compression damping settings for terrain and load tuning
- Multi-stage hydraulic Bump Zone for increased bottom-out resistance
- Large-diameter pistons deliver up to 50% more damping capability than OE
- Remote reservoirs with finned aluminum housings for improved cooling
- Rear 3-tube bypass shocks with separate compression and rebound zones
- Tool-free external adjusters for quick shock tuning
- Fully rebuildable and revalveable design for long-term service life
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Lift Height: 1–3 inches (front adjustable)
- Shock Series: ICON 3.0
- Front Shocks: Remote reservoir coilovers w/ CDC Valve
- Rear Shocks: 3.0 Series 3-tube bypass shocks
- Vehicle Platform: Ford F-150 Raptor (Gen 2)

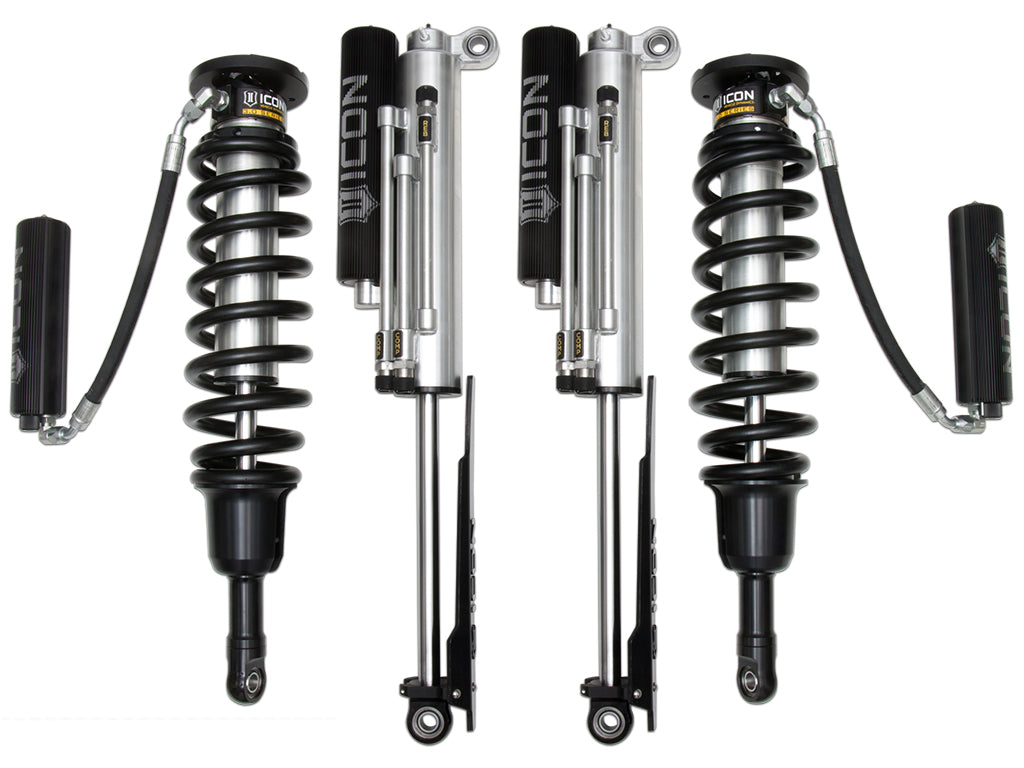

📦 What’s Included (What’s in the Box)

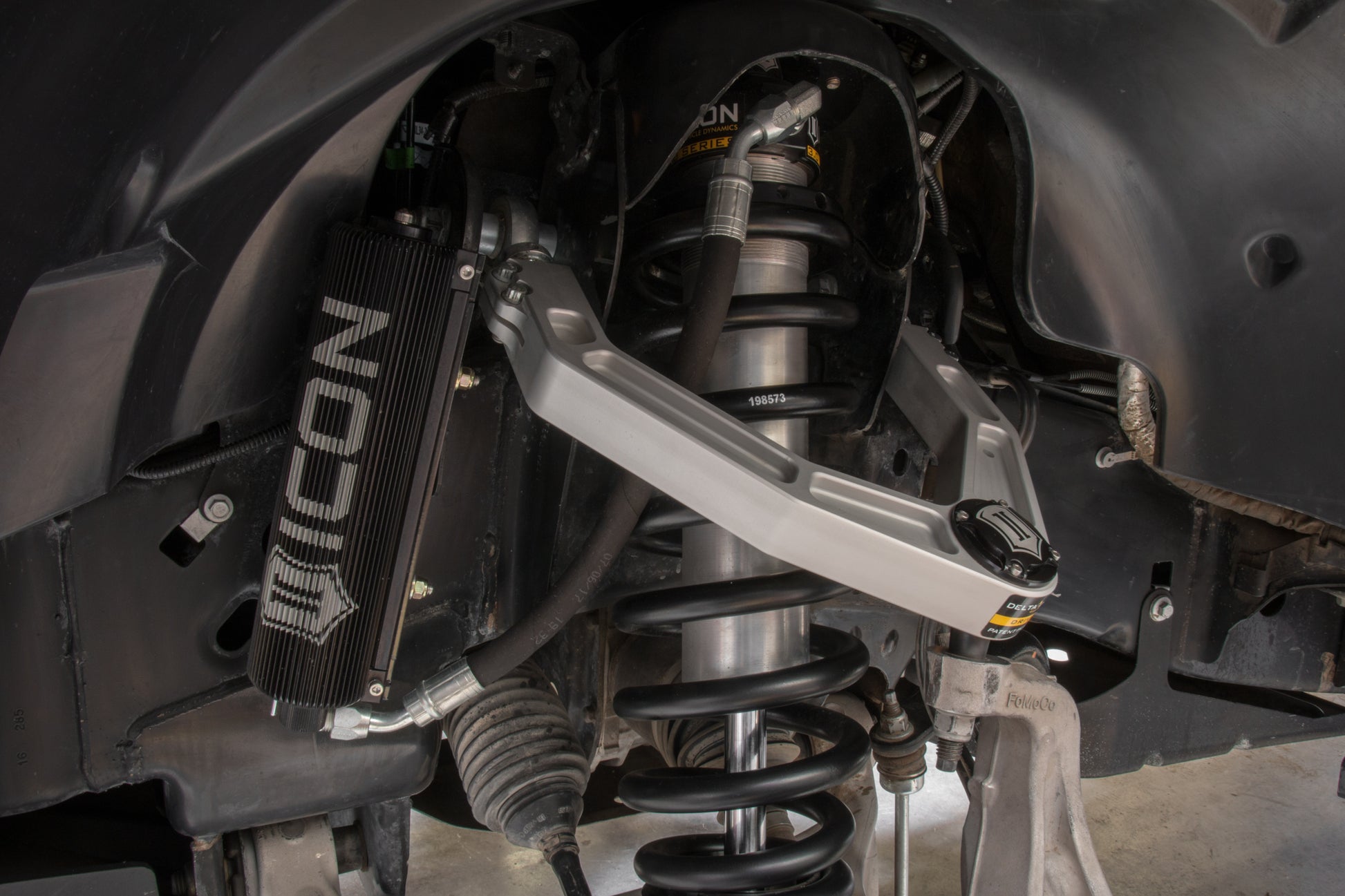

- 3.0 Series front remote reservoir coilovers w/ CDC Valve (PN 95002)

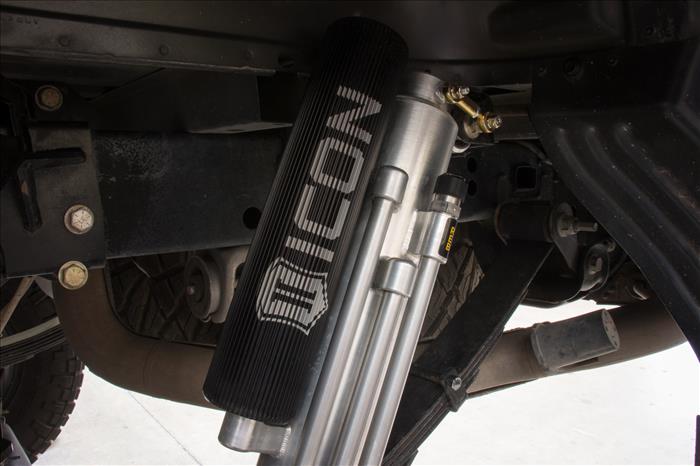

- 3.0 Series rear 3-tube bypass shocks (PN 95205)
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
- 🛠 Installation
- Bolt-on installation using factory mounting locations. No cutting or welding required. Fully serviceable components allow future tuning, rebuilds, and revalving. Alignment required after installation.
⚠️ Fitment Notes
- Ford F-150 Raptor
- 2017–2020 (Gen 2)
⚠️ Fitment Notes
- 2019–2020 Raptors equipped with factory Live Valve shocks require ICON Damper Interface Device (PN 95199) to retain drive mode functionality. Professional installation and alignment are recommended.
