🧾 Overview
The TeraFlex 2.5" Base Lift Kit with 9550 VSS Twin-Tube Shocks is engineered to enhance off-road capability for the Jeep Wrangler JK 2-Door while preserving factory-like on-road drivability. Designed with proper suspension geometry, roll center correction, and load tuning in mind, this system allows you to run larger tires and gain additional ground clearance without compromising stability or ride quality.
This kit includes TeraFlex 2.5" lift coil springs paired with 9550 VSS Twin-Tube shocks, which are specifically valved to work in harmony with TeraFlex coil springs. The result is improved compression and rebound control, predictable handling, and consistent performance both on the highway and on technical trails.
✔ 2.5" suspension lift for increased clearance
✔ Designed to retain factory drivability and stability control
✔ Optimized suspension geometry and load tuning
✔ Includes TeraFlex 9550 VSS Twin-Tube shocks
✔ Supports up to 35" tires with proper setup
🛠 Installation
- Bolt-on installation using factory mounting points. No cutting or welding required. Due to suspension geometry changes, a professional alignment is required after installation.
📌 Specs
- Key Features & Benefits
- 2.5" lift coil springs increase ground clearance and articulation
- Suspension geometry engineered to maintain factory stability control function
- 9550 VSS Twin-Tube shocks tuned specifically for TeraFlex lift springs
- Rear track bar axle bracket improves rear axle alignment
- Extended sway bar links and brake line relocation maintain proper suspension travel
- Bump stop extensions protect components at full compression
📘 Specifications
- Brand: TeraFlex
- Lift Height: 2.5 inches
- Shock Type: 9550 VSS Twin-Tube
- Maximum Tire Diameter: 35 inches
- Vehicle Configuration: 2-Door
- Sold As: Complete kit

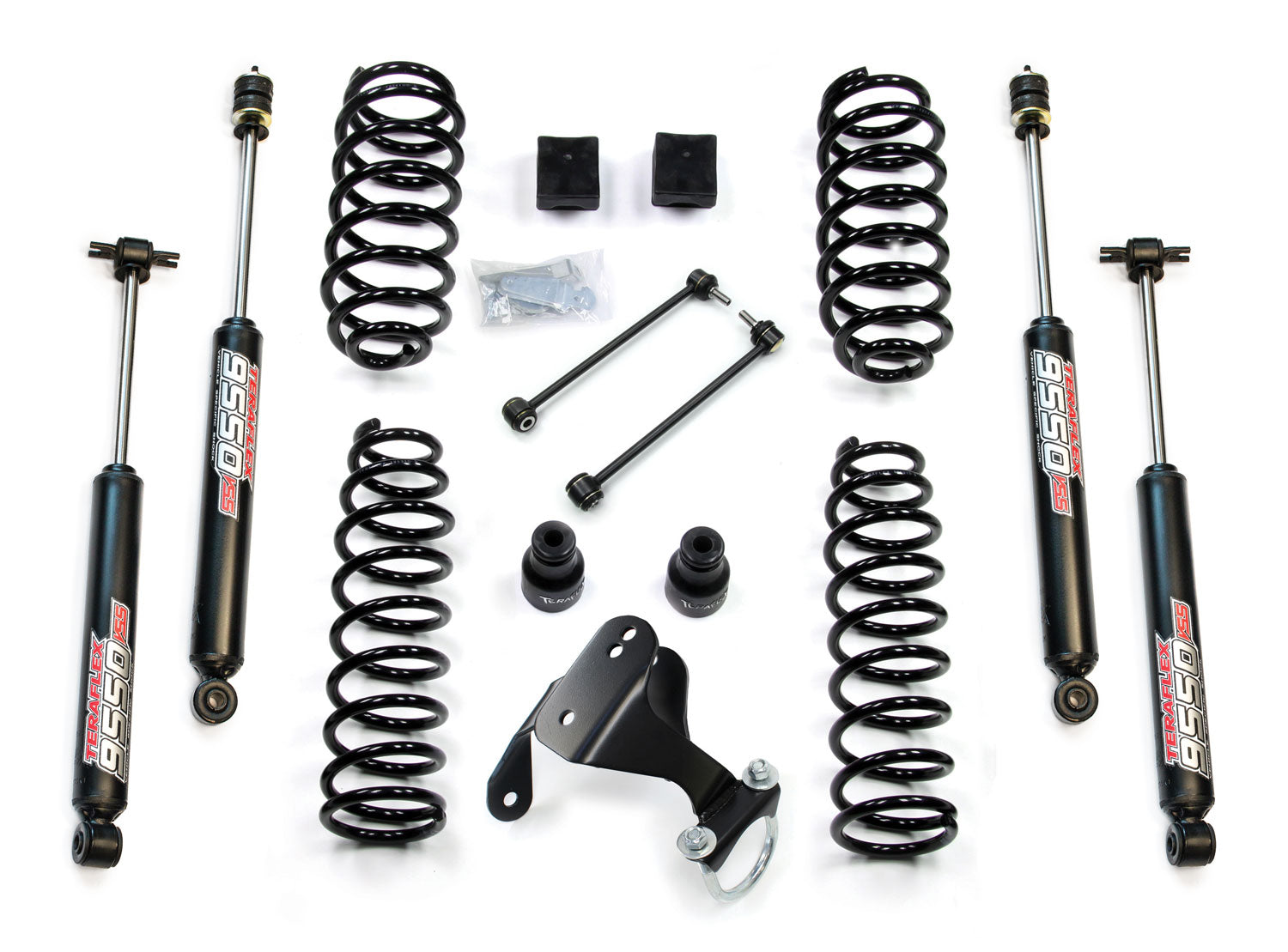

📦 What’s Included (What’s in the Box)
- 2.5" lift coil spring kit
- Front coil springs (JK2 Front – #1853052)
- Rear coil springs (JK2 Rear – #1854102)
- Rear track bar axle bracket kit (2.5" lift) (#1954776)
- Front upper bump stop extension kit – 2.75" (#1953800)
- Rear lower bump stop strike pad kit – 2.75" (#1954700)
- Rear sway bar link kit – 10.75" (2.5" lift) (#1744500)
- Rear lower coil spring retainers (#4954300)
- Rear brake line relocation kit (#4304400)
- 9550 VSS Twin-Tube shock kit (2.5" lift) (#1545100)
- All required mounting hardware
- Not Included:
- Falcon Performance shocks
- Front adjustable track bar
- Front sway bar links
- Wheels and tires
🛡 Warranty
- Manufacturer-backed warranty provided by TeraFlex.
⚠️ Fitment Notes
- Jeep Wrangler JK (2-Door)
⚠️ Fitment Notes
- Designed specifically for 2-Door JK models. Professional alignment is required after installation. Tire fitment may vary based on wheel offset and backspacing.
