🧾 Overview
The ICON 3.0 Stage 1 Suspension System for the 2007–2021 Toyota Tundra is a premium suspension upgrade designed to deliver increased wheel travel, improved ride control, and superior off-road performance while maintaining daily drivability. Built around ICON’s high-performance 3.0 remote reservoir coilovers with CDCV adjustment, this system provides tunable damping control and reliable lift for aggressive tire fitment and trail use.
Paired with billet upper control arms, multi-rate rear leaf springs, and matched rear shocks, this Stage 1 system offers a balanced suspension package for Tundra owners looking to improve capability without compromising stability or comfort.
✔ Adjustable lift up to 3 inches
✔ 3.0 coilovers with CDCV damping control
✔ Billet UCAs for corrected geometry and alignment
✔ Complete front and rear suspension solution
🛠 Installation
- Direct bolt-on installation using factory mounting points. No cutting or welding required. Fender trimming may be required for tire clearance. Professional alignment required after installation.
📌 Specs
- Key Features & Benefits
- 3.0 Series front coilovers with remote reservoirs and CDCV adjustment
- Adjustable lift range from 1.63" to 3.0"
- Billet aluminum upper control arms with Delta Joint for improved caster and articulation
- Multi-rate RXT rear leaf springs improve load handling and ride quality
- Matched rear 2.5 remote reservoir shocks for balanced suspension performance
- Fully serviceable shocks designed for long-term performance
- Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Lift Height: 1.63–3.0 inches (front adjustable)
- Vehicle Platform: Toyota Tundra
- Model Years: 2007–2021
- Front Shock Type: 3.0 Remote Reservoir Coilovers w/ CDCV
- Rear Shock Type: 2.5 Remote Reservoir Shocks
- Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" – 5.75" Backspace / +25mm Offset
- 18x9" – 6.00" Backspace / +25mm Offset
- 20x9" – 5.625" Backspace / +16mm Offset
- Recommended Tire Size:
- 35x12.50 (fender trimming required)

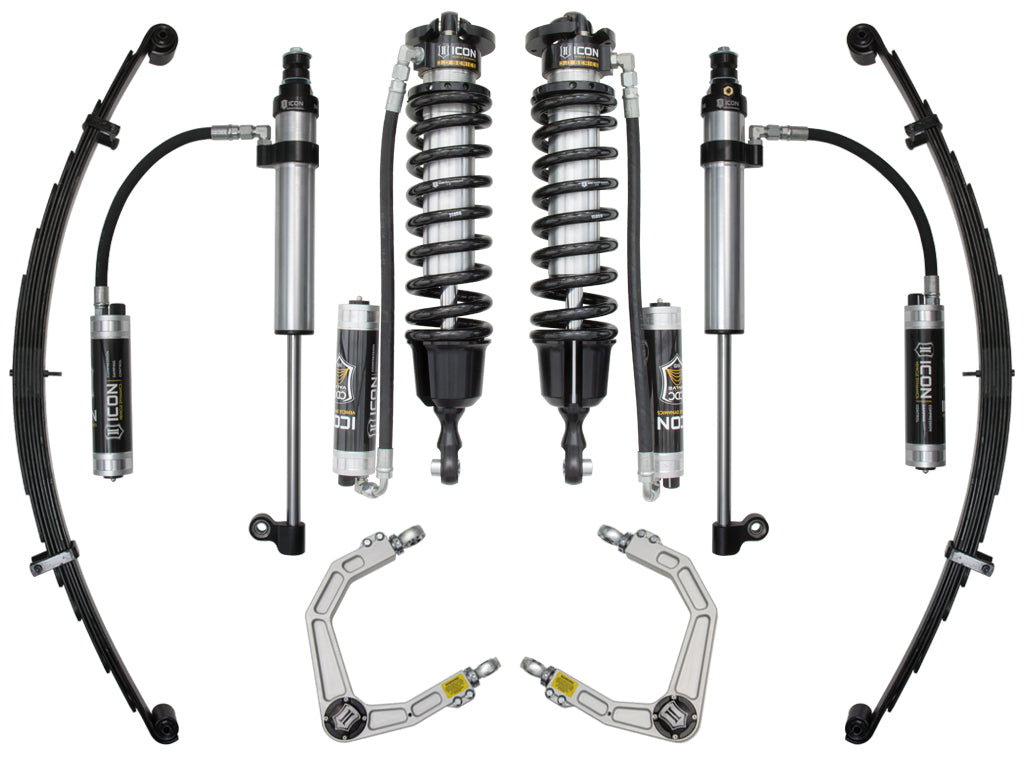

📦 What’s Included (What’s in the Box)
- Front Components
- 3.0 VS Remote Reservoir CDCV Coilover Kit
- Billet Upper Control Arm Kit with Delta Joint
- Rear Components
- RXT Multi-Rate Rear Leaf Spring Pack with Add-A-Leaf
- 2.5 VS Remote Reservoir CDCV Rear Shocks
- 8.0" Rear U-Bolt Kit
- Additional
- All required mounting hardware
🛡 Warranty
- ICON manufacturer-backed warranty. Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Toyota Tundra
- Model Years: 2007–2021
⚠️ Fitment Notes
- Stand-alone system — not compatible with other aftermarket suspension kits
- Not compatible with TRD rear sway bar kit
- Alignment required after installation
- Fender trimming required for recommended tire size
