🧾 Overview

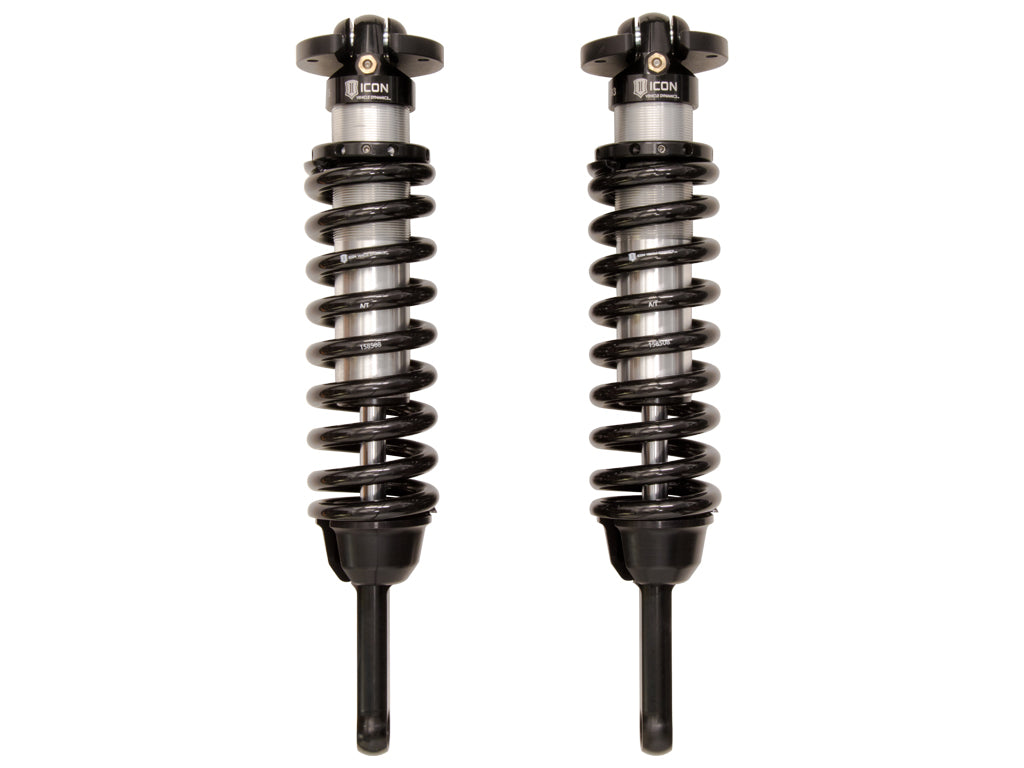

The ICON 2.5 VS Extended Travel Coilover Kit is a proven front suspension upgrade for 2007–2009 Toyota FJ Cruiser, 2003–2009 Toyota 4Runner, and Lexus GX470 models. Designed with vehicle-specific valving, it delivers improved ride quality, handling control, and increased off-road capability.
Featuring an extended travel design and a larger 2.5” shock body, this system increases front suspension travel and overall performance. A sway bar relocation bracket kit is included to properly clear the larger shock body during installation.
✔ Extended travel design for increased articulation
✔ 2.5” shock body for improved damping performance
✔ Vehicle-specific tuned valving
✔ Sway bar relocation brackets included
✔ Fully rebuildable and serviceable
🛠 Installation
- Direct bolt-on installation using factory mounting locations.
- Aftermarket front upper control arms required.
- Ride height must be set prior to final torque.
- Alignment required after installation.
📌 Specs
- Key Features & Benefits
- Extended Travel Length – Increased front wheel travel and articulation
- 2.5” Shock Body – Increased oil capacity and damping precision
- Vehicle-Specific Valving – Tuned for FJ / 4Runner / GX platform
- Increased Ride Quality – Improved on-road comfort and off-road control
- CAD-Plated Shock Body – Corrosion resistance
- High-Strength Lower Mounting Hardware
- Sway Bar Relocation Bracket Kit – Ensures proper clearance
- Fully Rebuildable & Revalveable – Long-term serviceability
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5 Extended Travel
- Shock Type: Internal Reservoir Coilover
- Position: Front
- Shock Body Diameter: 2.5”
- Design: Extended Travel
- Serviceable: Yes – Rebuildable & Revalveable
- Installation Type: Bolt-On (Aftermarket UCAs Required)
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON 2.5 VS Extended Travel Front Coilovers
- Mounting Components
- Sway bar relocation bracket kit
- Application-specific mounting hardware
- If you provide the exact ICON part number, I can verify spring rates and confirm all hardware components for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Toyota FJ Cruiser (2007–2009)
- Toyota 4Runner (2003–2009)
- Lexus GX470 (2003–2009)
⚠️ Fitment Notes
- Extended travel design requires aftermarket front upper control arms.
- Not compatible with factory X-REAS equipped vehicles unless system is removed.
- Lift height settings are based on stock-equipped vehicles.
- Alignment required after installation.
