🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2003–2009 Toyota 4Runner and 2007–2009 Toyota FJ Cruiser is engineered to deliver increased wheel travel, improved damping control, and superior ride quality both on-road and off-road. Building on the Stage 1 platform, the Stage 2 system upgrades to extended-travel 2.5 Series coilovers, unlocking additional suspension travel for enhanced performance over rough terrain.
Because extended-travel coilovers require corrected front-end geometry, this system includes ICON tubular upper control arms equipped with the patented Delta Joint. This heavy-duty, high-angle ball joint combines the durability and weather resistance of a traditional ball joint with the articulation advantages of a uniball—without the exposure issues commonly associated with uniballs on daily-driven vehicles.
The system is completed with ICON rear coil springs and 2.0 Aluminum Series internal reservoir rear shocks, tuned specifically for these platforms to balance front and rear performance. The result is a refined, capable suspension package ideal for drivers seeking improved control, articulation, and long-term reliability.
✔ Stage 2 suspension system with extended-travel coilovers
✔ 0–3.5" adjustable front lift range
✔ Tubular UCAs with patented Delta Joint
✔ Increased wheel travel and off-road capability
✔ Balanced on-road comfort and trail performance
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Designed for vehicles running extended-travel coilovers. Professional installation and alignment are strongly recommended for optimal performance and tire wear.
📌 Specs
- Key Features & Benefits
- Extended-travel 2.5 Series front coilovers increase usable wheel travel
- Internal reservoirs improve cooling and fade resistance
- Tubular upper control arms correct suspension geometry
- ICON Delta Joint allows high-angle articulation without bind
- Delta Joint features sealed, greaseable design for long service life
- Rear coil springs provide ~2" of lift for balanced stance
- 2.0 Aluminum Series rear shocks are vehicle-specific tuned
- Fully rebuildable and revalvable ICON shocks
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Front Lift Height: 0–3.5 inches (adjustable)
- Rear Lift Height: ~2 inches
- Shock Type (Front): 2.5 Series extended-travel coilovers w/ internal reservoirs
- Shock Type (Rear): 2.0 Aluminum Series internal reservoir
- Upper Control Arms: Tubular steel with ICON Delta Joint
- Vehicle Platform: Toyota 4Runner / FJ Cruiser
- Sold As: Complete suspension system

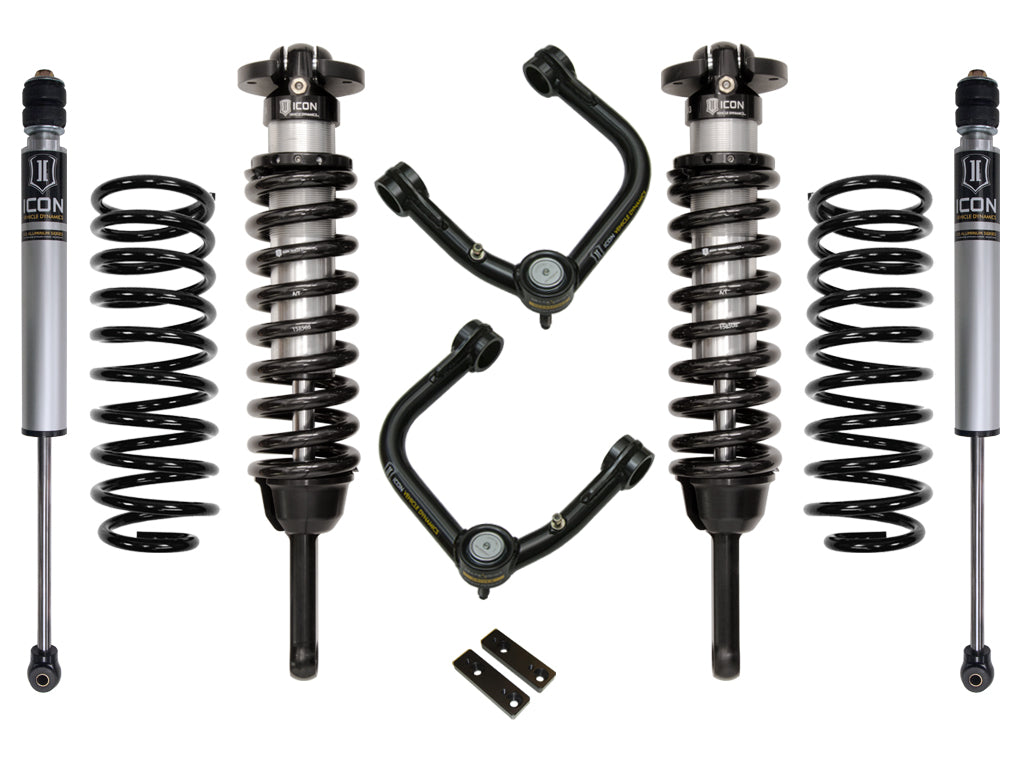

📦 What’s Included (What’s in the Box)
- Front Components
- Extended-travel 2.5 Series internal reservoir coilover kit (PN 58645)
- Tubular upper control arm kit with Delta Joints (PN 58451DJ)
- Rear Components
- Rear coil spring kit – ~2" lift (PN 52700)
- 2.0 Aluminum Series internal reservoir rear shocks – 1–3" lift range (PN 56505) x2
- Additional
- All required mounting hardware
🛡 Warranty
- ICON Delta Joint: Manufacturer-backed warranty
- ICON fabricated components & coil springs: Lifetime warranty against breakage or manufacturer defect
- Shocks: Fully serviceable and rebuildable
⚠️ Fitment Notes
- Toyota 4Runner (2003–2009)
- Toyota FJ Cruiser (2007–2009)
⚠️ Fitment Notes
- Extended-travel coilovers require ICON upper control arms (included). Professional installation and alignment are recommended. Tire fitment may vary based on wheel offset and suspension setup.
