🧾 Overview

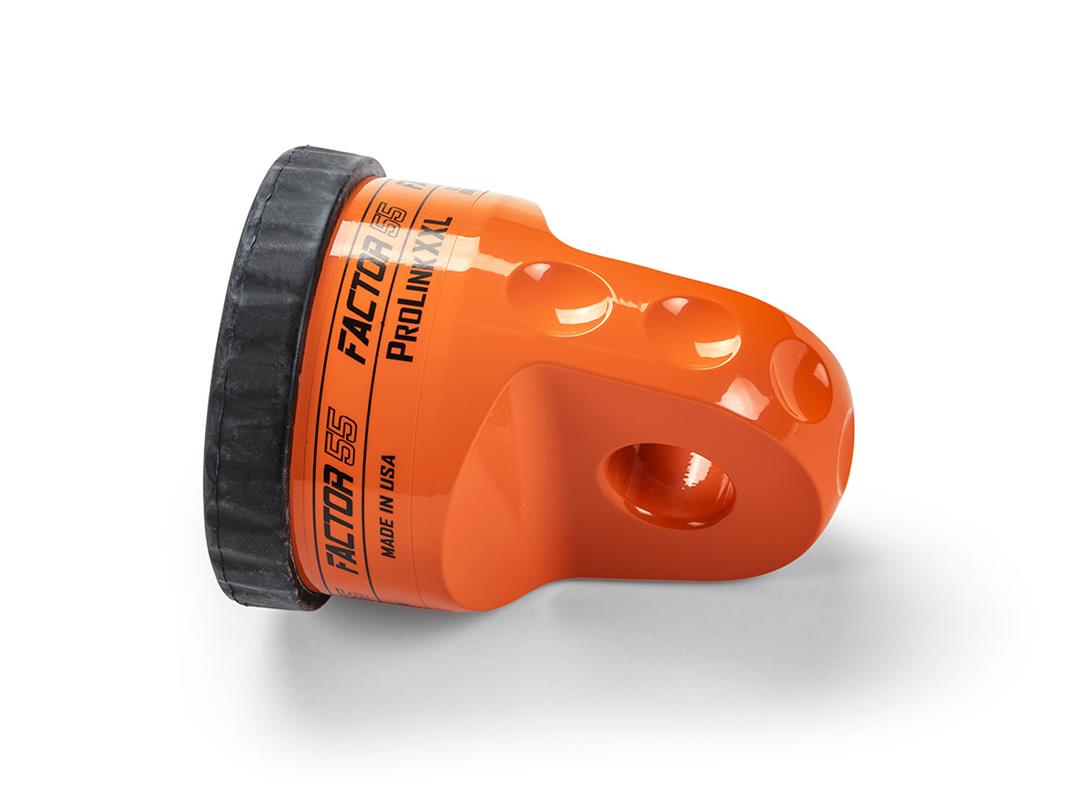

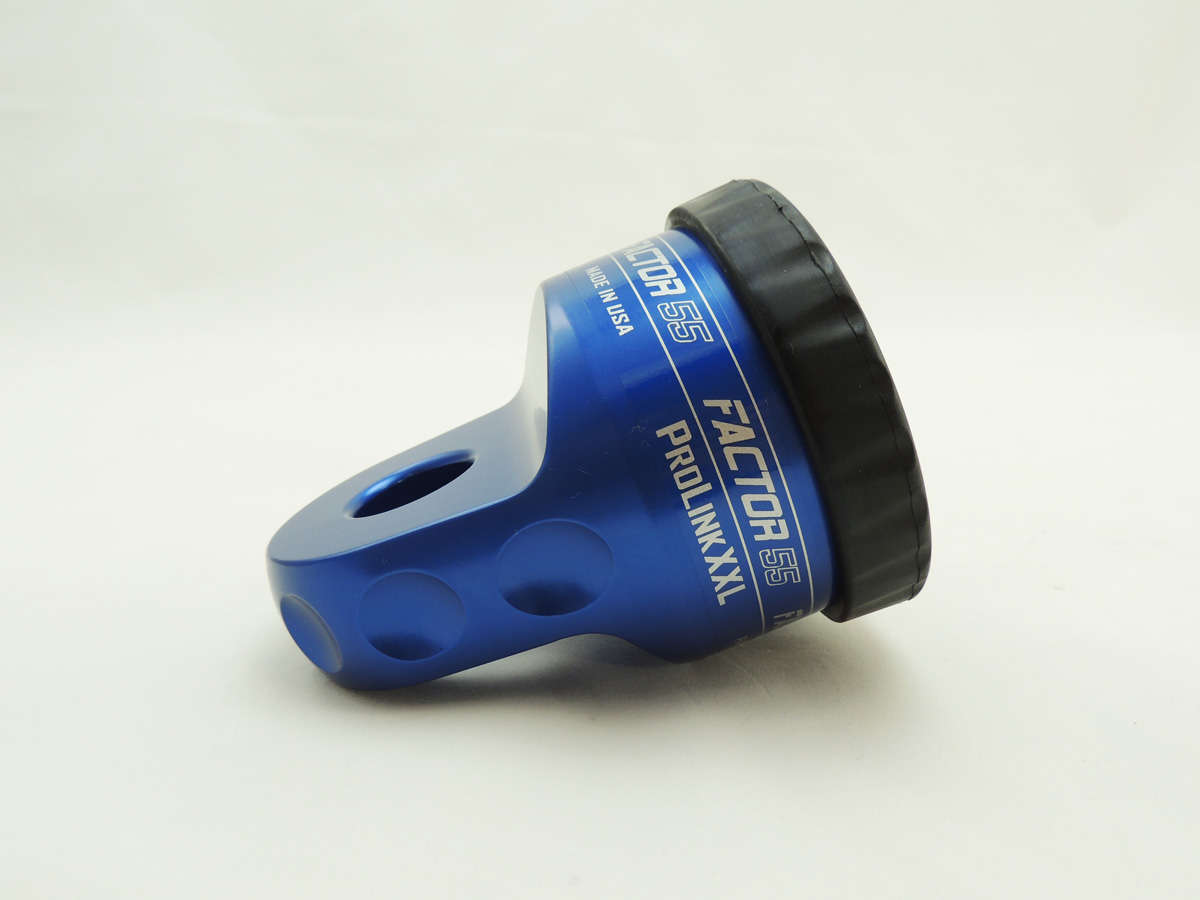

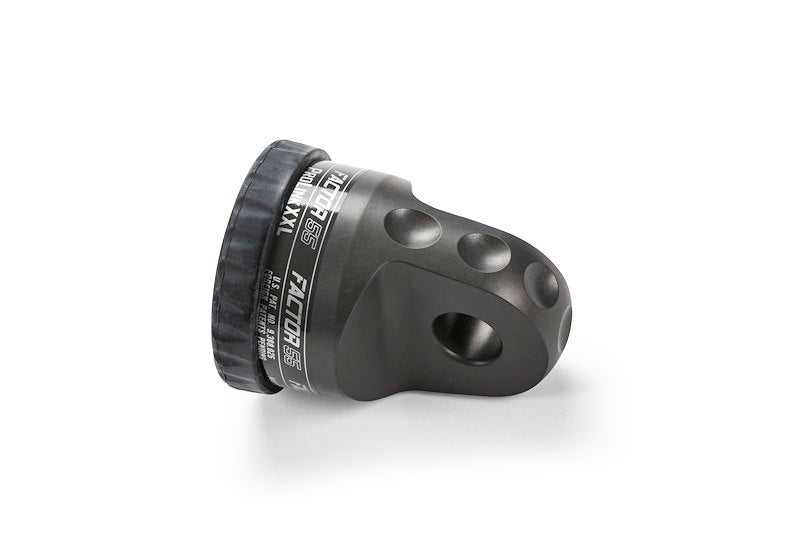

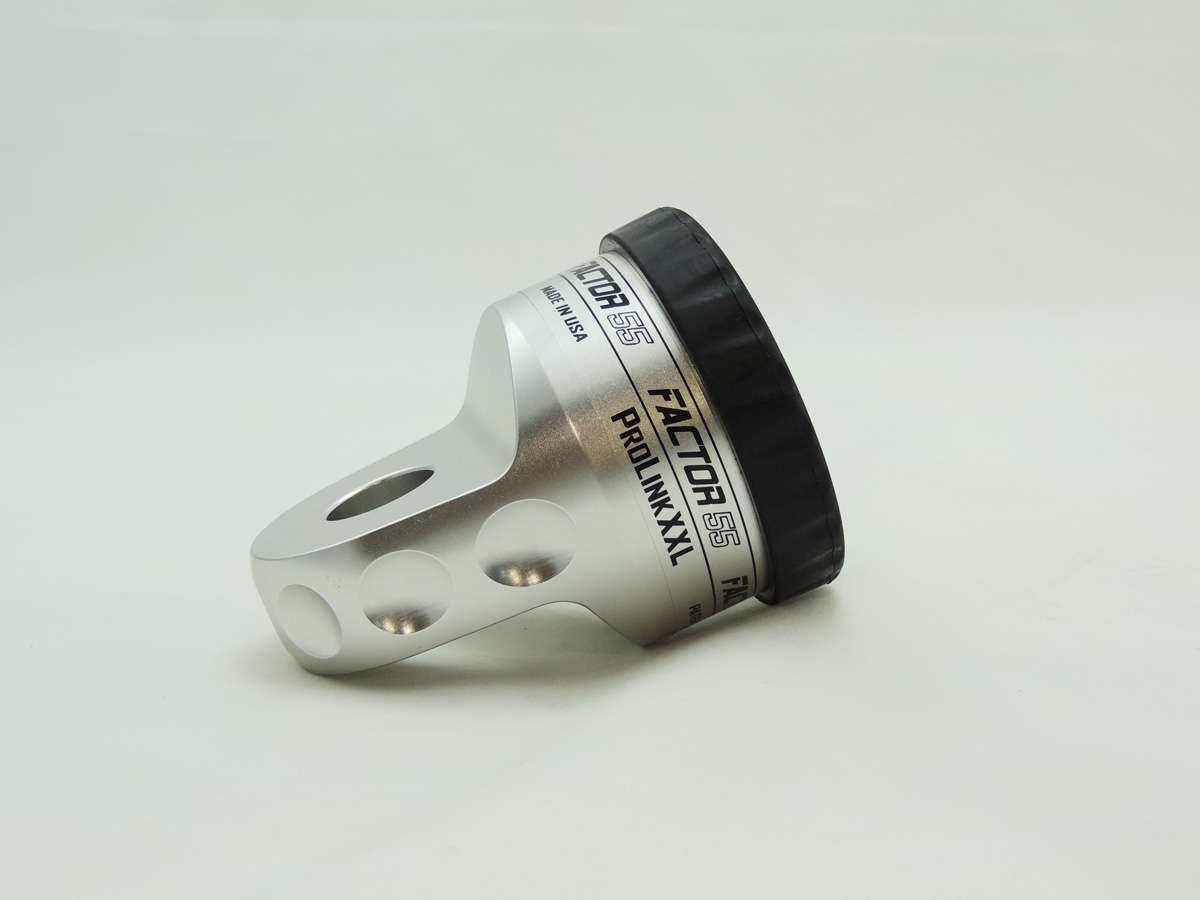

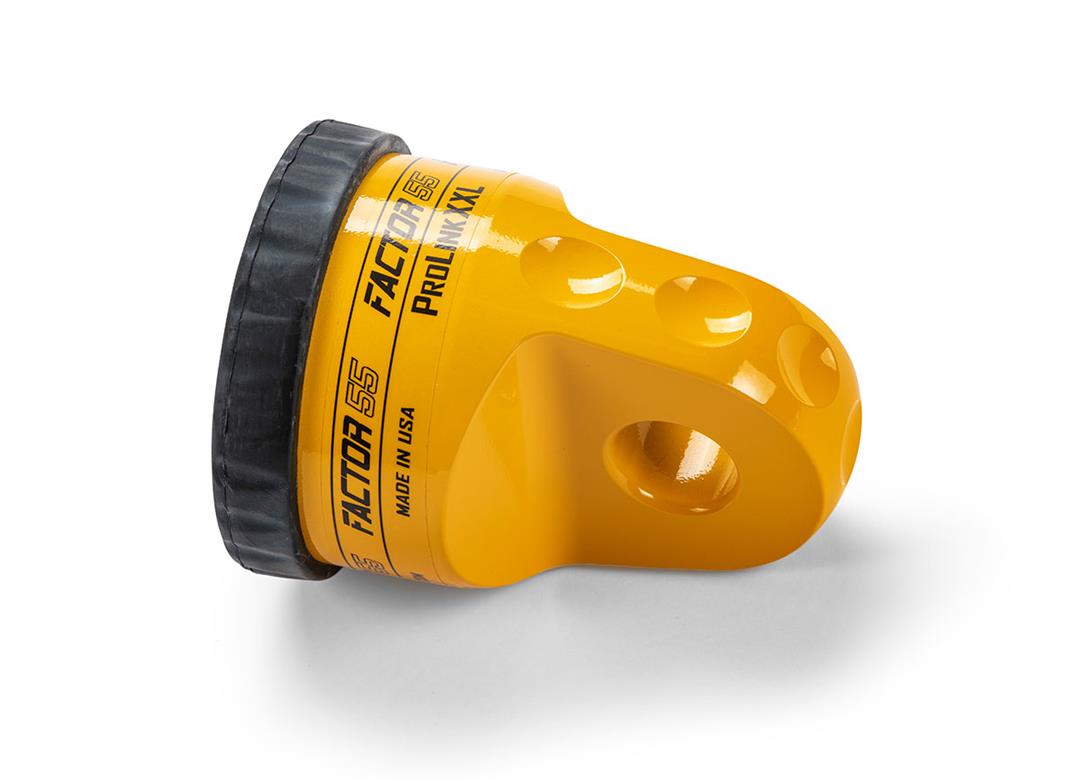

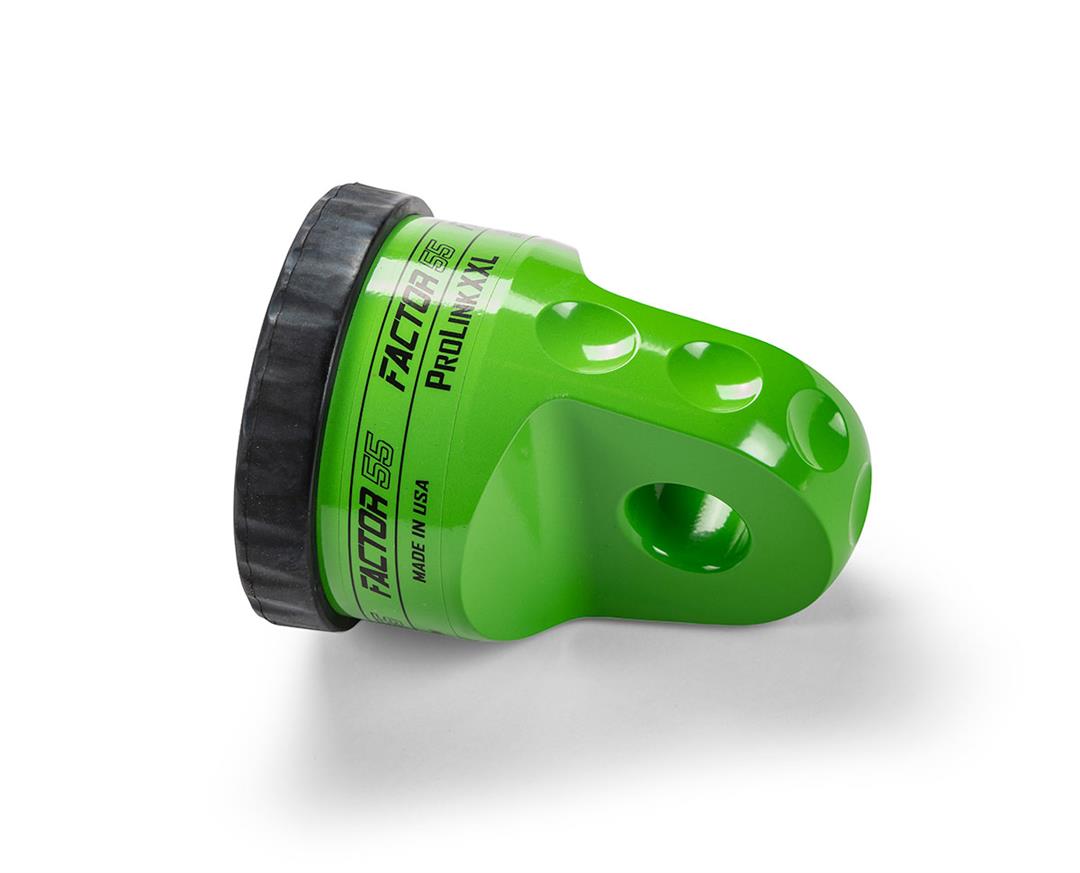

The Factor 55 ProLink XXL Shackle Mount Assembly is a heavy-duty winch hook replacement designed for large-capacity winches and extreme recovery applications where maximum strength and reliability are critical.
Built as an oversized version of the original ProLink, the XXL is engineered to handle higher load demands while maintaining the benefits of a closed-system recovery setup. It replaces the traditional winch hook with a secure shackle mount, eliminating the risk of strap slippage and improving overall recovery safety.
Precision machined from billet aluminum and secured with an aerospace-grade titanium double shear pin, the ProLink XXL delivers exceptional strength while remaining lightweight and easy to install—making it a trusted option for serious off-roaders and professional recovery setups.
✔ Heavy-duty shackle mount for high-capacity winches
✔ Replaces traditional winch hook with safer closed-system setup
✔ Designed for extreme recovery and large vehicle applications
✔ Billet aluminum construction with titanium double shear pin
✔ Compatible with synthetic rope or steel cable
🛠 Installation
- Direct replacement for factory winch hook.
- No rope splicing required—attaches to existing cable or rope eye.
- Estimated install time: ~10–15 minutes
📌 Specs
📌 Key Features & Benefits
- Closed System Winching® – Replaces hook with a secure shackle connection for safer recovery.
- XXL Heavy-Duty Design – Built for high-load winches and extreme recovery situations.
- Titanium Double Shear Pin – Provides superior strength and secure rope retention.
- Billet Aluminum Construction – Lightweight while maintaining high structural integrity.
- Fairlead Protection – Integrated rubber guard prevents damage and reduces noise.
📘 Specifications
- Brand: Factor 55
- Product Type: Winch Shackle Mount
- Compatibility: Synthetic Rope or Steel Cable (up to 3/8")
- Material: CNC Machined Billet Aluminum
- Pin Type: 6Al-4V Titanium Double Shear Pin
- Max Load Rating: Approx. 16,000 lb
- Shackle Compatibility:
- Fits common 3/4" shackles (7/8" pin)
- Mount Type: Shackle Mount (Hook Replacement)
- Installation Type: Bolt-On
- Sold As: Single
📦 What’s Included (What’s in the Box)
- Recovery Components
- (1) ProLink XXL Shackle Mount
- (1) Titanium Double Shear Pin
- (1) Snap Ring
🛡 Warranty
- Factor 55 Limited Warranty
⚠️ Fitment Notes
- Universal (Full-Size Trucks, Jeeps, Heavy-Duty Recovery Setups)
⚠️ Fitment Notes
- ❗ Designed for large-capacity winches (typically 12K+ applications)
- ❗ Compatible with synthetic rope or steel cable up to 3/8" diameter
- ❗ Requires winch line with loop/eyelet termination
- ❗ Designed for use with 3/4" shackles (7/8" pin)
