🧾 Overview

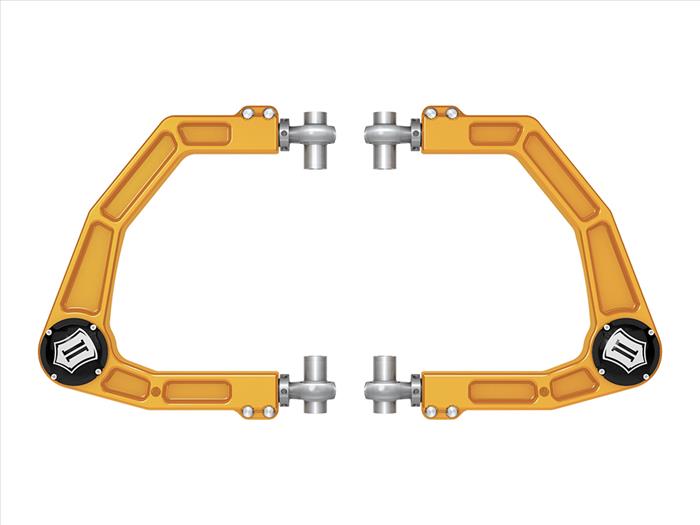

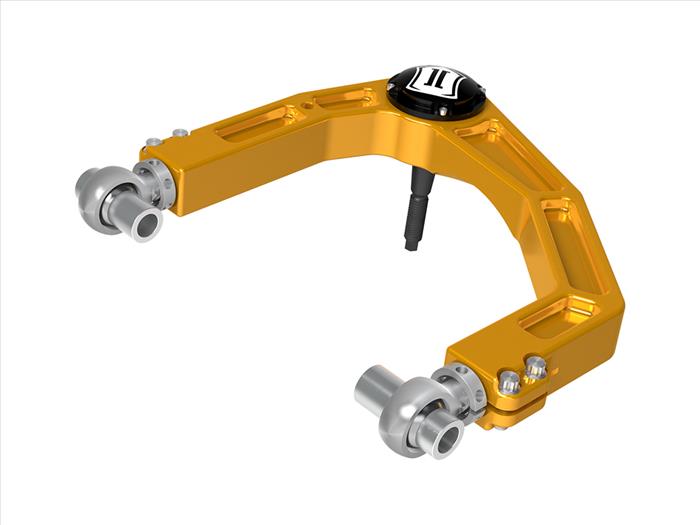

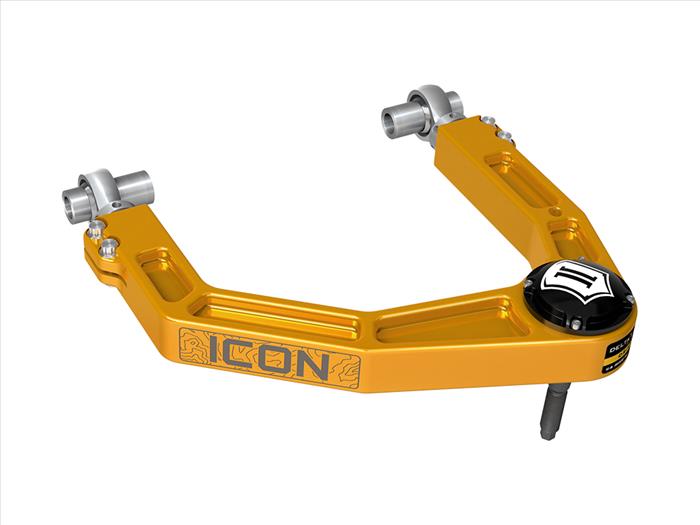

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, and the 2024-2025 Lexus GX550 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. An all-new gold anodized finish matches ICON shock absorbers for a splash of color in the wheel well and provide a custom look to any build. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for your Toyota Tacoma, Toyota Land Cruiser, Toyota 4Runner, or Lexus GX550.
📌 Specs
- CNC machined 6061 billet aluminum construction
- Gold anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tacomas with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
⚠️ Fitment Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys 17" x 8.5" with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys 18" x 9" with 6.6" Backspace / 40mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: Compatible with 2024 Tacoma, Land Cruiser 250 Series, and GX550 equipped with 0-3” of front lift over stock
- TECH NOTE: Also available with classic satin silver anodized finish. See part number 58552DJ.
- Lexus GX550 (2024–2025)
- – Front Upper
- – 40mm offset wheels recommended
- – Up to 33x11.50 tires
- – 0–3" suspension lift
- Toyota 4Runner (2025)
- – SR5 / TRD Off-Road / TRD Sport / Limited / Platinum
- – Front Upper
- – 40mm offset wheels recommended
- – Up to 33x11.50 tires
- – 0–3" suspension lift
- Toyota Tacoma (2024–2025)
- – SR / SR5 / TRD Off-Road / TRD Sport / Limited / PreRunner
- – Front Upper
- – 25mm offset wheels recommended
- – Up to 33x11.50 tires
- – 0–3" suspension lift
