🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for 2023–2024 GMC Canyon and Chevrolet Colorado Trail Boss is engineered to improve ride quality, wheel travel, and overall vehicle control while retaining full towing capacity. This system is designed specifically for ultra-wide stance models and delivers balanced on- and off-road performance through vehicle-specific tuned shocks and geometry-correcting components.
This Stage 2 system includes height-adjustable 2.5" front coilover shocks, billet aluminum upper control arms with ICON Delta Joint PRO, and 2.0 Aluminum Series rear shocks. Designed as a complete bolt-on upgrade, it allows fitment of larger tires while maintaining proper alignment and suspension movement.
✔ Vehicle-specific tuned front and rear shocks
✔ Adjustable front lift from 1.75–2.5"
✔ Billet UCAs improve strength and alignment range
✔ Increased wheel travel and ride control
✔ 100% bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting, drilling, or welding required. Designed for OE steering knuckles only. Professional installation and alignment are strongly recommended.
📌 Specs
- Vehicle-specific tuned front and rear shocks for superior damping and control
- Adjustable front coilovers provide 1.75–2.5" of lift over stock
- Billet aluminum upper control arms increase strength and alignment adjustability
- Delta Joint PRO offers rebuildable, serviceable design with increased articulation
- Increased wheel travel improves off-road capability and ride compliance
- 2.0 Aluminum Series rear shocks balance front and rear suspension performance
- 100% bolt-on system with no cutting, drilling, or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Lift Height (Front): 1.75–2.5 inches adjustable
- Rear Lift Compatibility: 0–1 inch over stock
- Front Shocks: 2.5" VS Internal Reservoir Coilovers
- Rear Shocks: 2.0 Aluminum Series VS Internal Reservoir
- Upper Control Arms: Billet Aluminum with Delta Joint PRO
- Installation Type: Bolt-on
- Tire & Wheel Fitment (Reference Only):
- Factory Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5"
- 5.46" Backspace / 18mm Offset
- Recommended Tire Size:
- 35" x 12.50"
- (Larger tires may require trimming and additional modifications)

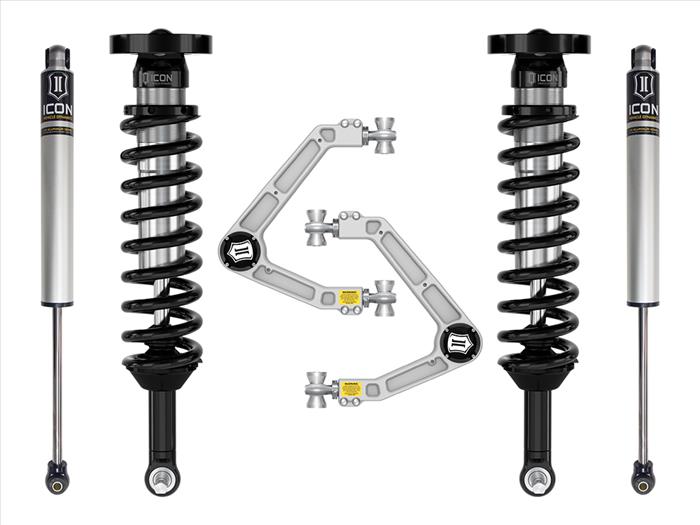

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Internal Reservoir Front Coilover Kit
- – Part Number: 71615
- – Quantity: 1 kit
- Billet Upper Control Arm Kit with Delta Joint PRO
- – Part Number: 78760DJ
- – Quantity: 1 kit
- Rear Components
- 2.0 VS Internal Reservoir Rear Shocks (0–2" lift compatible)
- – Part Number: 76550
- – Quantity: 2 shocks
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable.
⚠️ Fitment Notes
- GMC Canyon (Ultra-Wide Stance)
- 2023–2024 Canyon AT4
- 2023–2024 Canyon Denali
- 2023–2024 Canyon Elevation
- Chevrolet Colorado (Ultra-Wide Stance)
- 2023–2024 Colorado Trail Boss
⚠️ Fitment Notes
- Fits ultra-wide stance vehicles only. Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2 models. Will not fit GMC Canyon AT4X. Rear shocks are compatible with 0–1" of rear lift over stock. Springs are rated for gasoline engines only. Only compatible with OE steering knuckles—do not install with aftermarket steering knuckles. Lift heights are based on stock-equipped vehicles; added weight will affect final lift height. Professional installation and alignment are recommended.
