🧾 Overview
The ICON Vehicle Dynamics Stage 2 Suspension System with Tubular Upper Control Arms is designed to improve wheel travel, damping performance, and overall vehicle control for 2023–2024 GMC Canyon and Chevrolet Colorado Trail Boss models. This system is engineered specifically for ultra-wide stance trucks and delivers balanced on-road comfort with increased off-road capability.

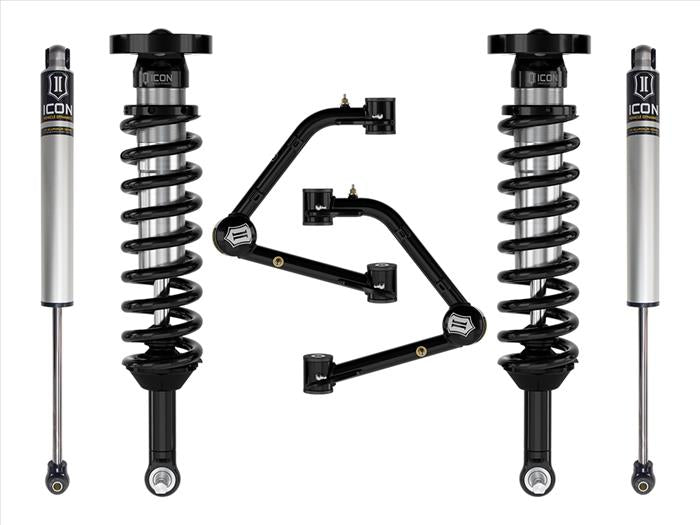

This Stage 2 package includes adjustable 2.5" front coilover shocks, tubular upper control arms with Delta Joint PRO, and ICON 2.0 Aluminum Series rear shocks. It is a complete bolt-on suspension upgrade that allows larger tires while maintaining proper alignment, suspension geometry, and factory towing capacity.
✔ Vehicle-specific tuned front and rear shocks
✔ Adjustable front lift from 1.75–2.5"
✔ Tubular UCAs increase strength and alignment range
✔ Increased wheel travel and suspension control
✔ 100% bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting, drilling, or welding required. Designed for OE steering knuckles only. Professional installation and post-install alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned front and rear shocks for improved damping and control
- Adjustable 2.5" front coilovers provide 1.75–2.5" of lift
- Tubular upper control arms improve strength, durability, and alignment range
- Delta Joint PRO offers rebuildable, serviceable design with increased articulation
- Increased wheel travel improves ride quality and off-road performance
- 2.0 Aluminum Series rear shocks balance front and rear suspension behavior
- 100% bolt-on system with no cutting, drilling, or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 2 Suspension System
- Lift Height (Front): 1.75–2.5 inches adjustable
- Rear Lift Compatibility: 0–1 inch over stock
- Front Shocks: 2.5" VS Internal Reservoir Coilovers
- Rear Shocks: 2.0 Aluminum Series VS Internal Reservoir
- Upper Control Arms: Tubular with Delta Joint PRO
- Installation Type: Bolt-on
- Tire & Wheel Fitment (Reference Only):
- Factory Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5"
- 5.46" Backspace / 18mm Offset
- Recommended Tire Size:
- 35" x 12.50"
- (Larger tires may require trimming and additional modifications)
📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Internal Reservoir Front Coilover Kit
- – Part Number: 71615
- – Quantity: 1 kit
- Tubular Upper Control Arm Kit with Delta Joint PRO
- – Part Number: 78660DJ
- – Quantity: 1 kit
- Rear Components
- 2.0 VS Internal Reservoir Rear Shocks (0–2" lift compatible)
- – Part Number: 76550
- – Quantity: 2 shocks
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable.
⚠️ Fitment Notes
- GMC Canyon (Ultra-Wide Stance)
- 2023–2024 Canyon AT4
- 2023–2024 Canyon Denali
- 2023–2024 Canyon Elevation
- Chevrolet Colorado (Ultra-Wide Stance)
- 2023–2024 Colorado Trail Boss
⚠️ Fitment Notes
- Fits ultra-wide stance vehicles only. Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2 models. Will not fit GMC Canyon AT4X. Springs are rated for gasoline engines only. Rear shocks are compatible with 0–1" of rear lift over stock. Only compatible with OE steering knuckles—do not install with aftermarket steering knuckles. Lift heights are based on stock-equipped vehicles; added weight will affect final lift height. Professional installation and alignment are recommended.
