🧾 Overview

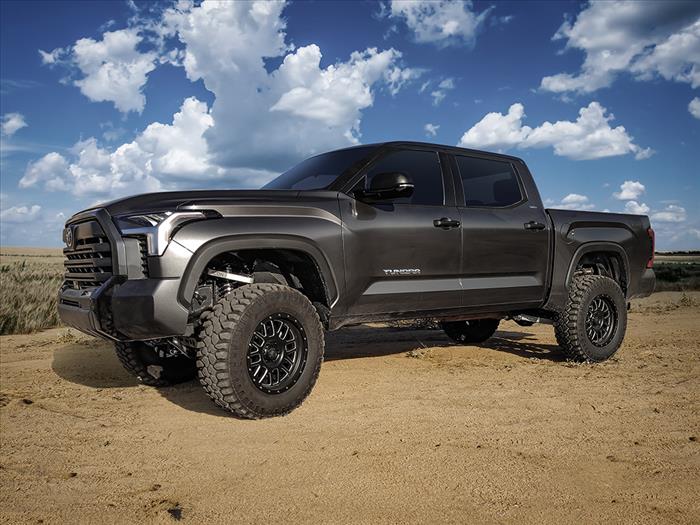

The ICON 6" Stage 1 Suspension System for the 2022–2024 Toyota Tundra is a robust lift solution designed to deliver aggressive stance, increased ground clearance, and full articulation with 37" tires—while maintaining factory track width and drivability. Built around heavy-duty coilover and rear coil spacers paired with precision-engineered drop components, this system provides a true 6" front lift with only a 4" crossmember drop to optimize geometry and reduce stress on OE components.
Featuring high-clearance crossmembers, a one-piece ductile iron steering knuckle with integrated drop, improved rear suspension components, and tuned rear shocks, the Stage 1 system offers a dependable, bolt-on upgrade for Tundra owners seeking capability and durability without the complexity of adjustable coilovers.
✔ Optimized for 37" tires with full articulation
✔ Maintains factory track width
✔ True 6" lift with only 4" crossmember drop
✔ Heavy-duty, serviceable components
✔ Bolt-on installation
🛠 Installation
- Bolt-on installation using supplied crossmembers and brackets. No cutting or welding required. Alignment and Toyota Safety Sense recalibration may be required after installation.
📌 Specs
- Key Features & Benefits
- Optimized design supports 37" tires with full articulation
- Maintains factory track width for predictable handling
- Front coilover spacer kit constructed from heavy-duty steel
- Provides 6" of front lift with only a 4" crossmember drop
- Single-piece high-strength ductile iron steering knuckles with built-in 4" drop
- High-clearance front crossmembers and skid plate CNC laser-cut and brake-formed from 1/4" steel
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High-angle outer tie rods with durable, greaseable metal-on-metal ends
- 2.0 Aluminum Series rear shocks improve rear suspension performance
- Rear coil spring spacer kit provides lift while retaining factory rear coils
- Improved rear sway bar links, mounts, and rear track bar bracket reduce rear suspension bind
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 1 Suspension System
- Lift Height: 6.0 inches
- Front Lift Method: Coilover spacers with crossmember drop
- Rear Lift Method: Coil spring spacers
- Rear Shocks: 2.0 Aluminum Series internal reservoir
- Wheel Requirement: Minimum 20" diameter
- Recommended Tire Size: 37" x 12.50"
- Installation Type: Bolt-on

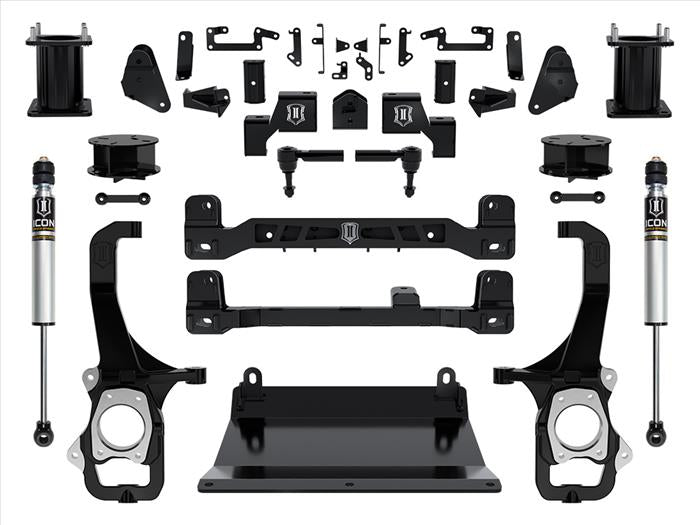

📦 What’s Included (What’s in the Box)
- Front Components
- Front box kit 1 & 2 (crossmembers and brackets)
- 6" front coilover spacer kit
- Single-piece ductile iron steering knuckles (4" drop)
- High-clearance front skid plate
- Sway bar drop brackets
- High-angle outer tie rods
- Rear Components
- Rear box kit
- Rear coil spring spacer kit
- 2.0 Aluminum Series internal reservoir rear shocks
- Rear sway bar links and mounts
- Rear track bar bracket
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed limited lifetime warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable.
⚠️ Fitment Notes
- Toyota Tundra (2022–2024)
⚠️ Fitment Notes
- Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension, Adaptive Variable Suspension (AVS), TRD Pro, or SR5 models with TRD Sport package. Minimum 20" wheel diameter required. Toyota Safety Sense (ADAS) recalibration may be required after installation. Professional installation and alignment are recommended.
