🧾 Overview

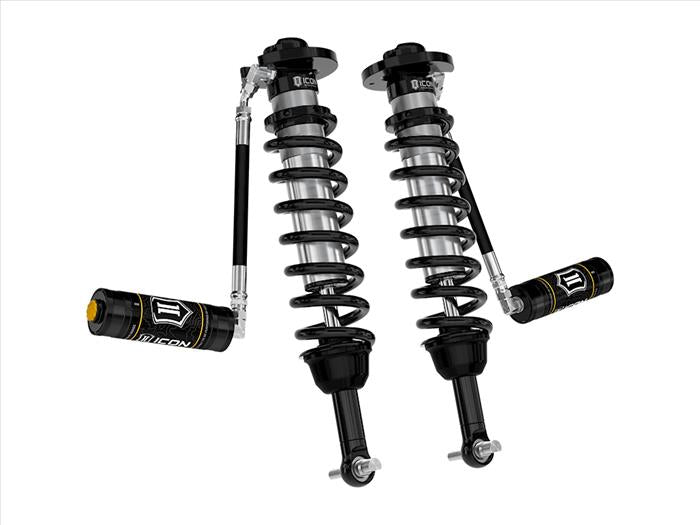

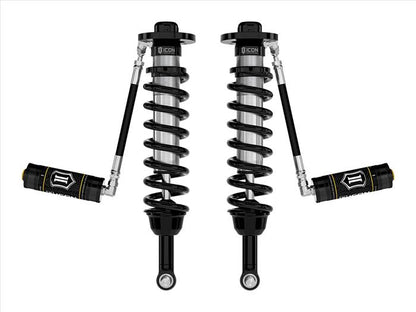

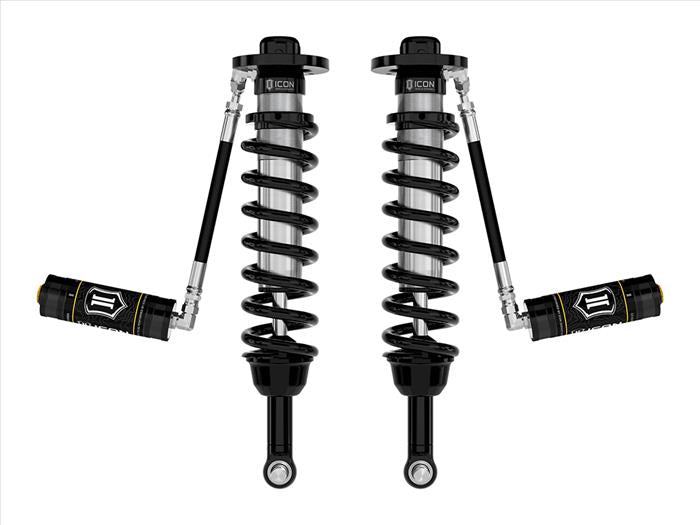

This front coilover kit from ICON Vehicle Dynamics is engineered to elevate the suspension performance of select Ford F-150 models by delivering enhanced wheel travel, damping control, and lifted ride height over stock. Built around a robust 2.5″ shock body with remote reservoir design, the system improves heat dissipation and ride consistency across both on-road and off-road conditions.
Featuring adjustable ride height and custom-tuned valving for F-150 applications, these coilovers help support larger tire fitment and improved approach angles while maintaining balanced handling. Durable internal construction, matched coil springs, and a bolt-on design make this suspension upgrade suitable for aggressive daily drivers, trail enthusiasts, and lifted builds alike.
✔ Front coilovers with remote reservoir design for better cooling and control
✔ Adjustable suspension lift for stance and clearance
✔ Large-body shock design enhances damping performance
✔ Includes coil springs for balanced front suspension travel
✔ Direct bolt-on installation — no cutting or welding required
🛠 Installation
- Designed for direct replacement of front shocks using factory or compatible mounting points. Adjustable spring seats provide ride height tuning prior to final torque. Professional installation and post-install alignment are strongly recommended for optimal performance and handling.
📌 Specs
- Key Features & Benefits
- Remote Reservoir Design: Improves cooling and performance under sustained use.
- Adjustable Suspension: Allows ride height tuning to match build goals and tire sizes.
- Valved for F-150 Dynamics: Tuned to optimize comfort and handling for truck applications.
- Aluminum Shock Bodies: Corrosion-resistant and durable construction.
- Matched Coil Springs: Balanced spring rates for improved lift and travel.
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5 Series Front Coilover Kit
- System Type: Front Suspension Coilovers with Remote Reservoirs
- Front Lift Range: ~2.5″–3″ for Tremor; up to ~4.5″ with compatible components
- Shock Body: 2.5″ monotube with remote reservoir
- Adjustability: Ride height via spring seat position
- Installation: Direct bolt-on with supplied hardware
- Warranty: Manufacturer warranty (varies by seller)
📦 What’s Included (What’s in the Box)
- (2) Front 2.5 Series Remote Reservoir Coilovers
- (2) Matching Coil Springs
- Bushings, sleeves, and hardware
- Installation instructions
🛡 Warranty
- ICON Vehicle Dynamics suspension products include manufacturer-backed warranty coverage
⚠️ Fitment Notes
- Ford F-150 Front Suspension
- 2021–2025 Ford F-150 Tremor (4WD)
- Compatible with F-150 4WD models running ICON front knuckles (lift/ travel dependent)
⚠️ Fitment Notes
- Designed for 4WD chassis without CCD (Continuously Controlled Damping) systems.
- Models with adaptive or electronically controlled shocks may require compatible options.
- Alignment and possible geometry correction (e.g., upper control arms) are recommended after installation.
