🧾 Overview

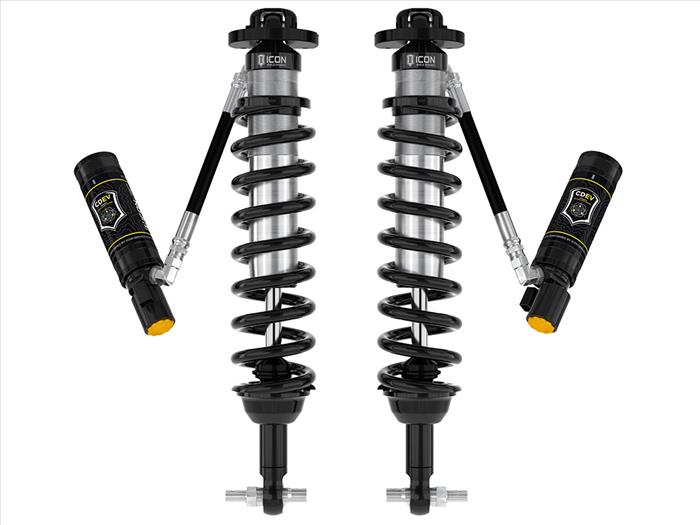

The ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Front Coilover Kit with CDEV is a premium electronically controlled suspension upgrade for the 2021–2023 Ford Bronco. Designed specifically for the Bronco platform, these adjustable coilovers deliver increased wheel travel, improved damping control, and active on-the-fly electronic compression tuning.
Lift height is adjustable from 1.5” up to 4” on non-Sasquatch Broncos and 2–3” over stock on Sasquatch-equipped models, allowing clearance for larger, more aggressive wheel and tire combinations.
The 2.5” shock body combined with a remote reservoir increases oil volume and heat dissipation to resist fade during extended off-road use. ICON’s exclusive Compression Damping Electronic Valves (CDEV) allow real-time electronic compression adjustments via the ICON Intelligent Control (IIC) system. Once configured, IIC uses onboard vehicle data to automatically adjust damping at each shock for optimized ride control across changing terrain.
This system is designed to be paired with ICON rear CDEV coilovers and the IIC control module for full vehicle integration.
✔ Adjustable front lift height
✔ Remote reservoir for superior heat management
✔ CDEV electronic compression control
✔ Increased wheel travel up to 11.5”
✔ Fully rebuildable and re-tunable
🛠 Installation
- 100% bolt-on installation using factory mounting locations.
- Ride height must be set prior to final torque.
- Alignment required after installation.
- Suspension should be cycled to verify clearance at full droop and compression.
📌 Specs
- Key Features & Benefits
- Vehicle-Specific Valving – Tuned specifically for the Bronco platform
- Remote Reservoir Design – Increased oil volume and heat dissipation
- CDEV Technology – Electronic compression damping adjustment
- ICON Intelligent Control (IIC) – Active terrain-based damping control
- Adjustable Ride Height – 1.5–4” front lift capability
- 2.5” Shock Body – Increased piston area for improved damping precision
- ICON Engineered Coil Springs – Platform-matched spring rates
- 6061 CNC Machined Aluminum Components – Strength and corrosion resistance
- CAD Plated Shock Bodies – Long-term durability
- 7/8” Induction Hardened Shaft – Strength under aggressive use
- FK Rod End Bearings – Reduced deflection and extended service life
- Fully Rebuildable & Re-Tunable – Long-term serviceability
- 100% Bolt-On Installation – No cutting, drilling, or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- Series: V.S. 2.5
- Shock Type: Remote Reservoir Coilover with CDEV
- Position: Front
- Lift Height (Non-Sasquatch): 1.5–4” Adjustable
- Lift Height (Sasquatch): 2–3” Over Stock
- Lift Height (Everglades): 1.5–2.5” Over Stock
- Maximum Wheel Travel: Up to 11.5”
- Shock Body Diameter: 2.5”
- Shaft Diameter: 7/8”
- Reservoir Type: Remote Reservoir
- Electronic Control: Compression Damping Electronic Valve (CDEV)
- Serviceable: Yes – Rebuildable & Re-Tunable
- Installation Type: Bolt-On
- Sold As: Pair
📦 What’s Included (What’s in the Box)
- Front Components
- (2) ICON V.S. 2.5 Remote Reservoir Front Coilovers with CDEV
- Pre-installed ICON engineered coil springs
- Mounting Components
- Remote reservoir mounting brackets
- High strength alloy CNC machined lower bar pins
- Application-specific mounting hardware
- ⚠️ IIC control module (PN 43501) and rear CDEV coilovers are NOT included and are required for operation.
- If you provide the exact ICON part number, I will verify whether spanner wrench, reservoir clamps, and electrical leads are included under that SKU for 100% box accuracy.
🛡 Warranty
- Manufacturer-backed limited warranty provided by ICON Vehicle Dynamics.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- All trims except Bronco Raptor
- Front position only
⚠️ Fitment Notes
- Not compatible with Bronco Raptor.
- Non-Sasquatch Models:
- 1.5–4” of front lift adjustability
- Sasquatch Models:
- 2–3” of lift over stock
- Bronco Everglades:
- Lift range 1.5–2.5” over stock
- Factory upper control arms will not align properly past 2.5” of lift. Aftermarket upper control arms are recommended above 2.5”.
- 37” Tires:
- Require front up-travel limiters (PN 611075)
- Coilover bump stop spacers required
- Crash bar removal may be required but is not recommended
- 35” Tires (Non-Sasquatch):
- High clearance crash bars (PN 42000) recommended
- Requires:
- ICON Intelligent Control (IIC) Kit – PN 43501
- ICON Rear 2.5 Series CDEV Coilovers – PN 48710E or 48711E
- iOS-operated device to run ICON Intelligent Control App
- Due to tight suspension clearances, certain aftermarket steering components may not be compatible.
