🧾 Overview
The ICON Stage 8 Suspension System is ICON’s most advanced suspension solution for 2021–2023 Ford Bronco models without the Sasquatch Package, combining electronically controlled damping with full billet suspension components for maximum performance and adjustability. Designed for aggressive off-road use and Broncos carrying additional rear weight, this system delivers exceptional ride quality, control, and articulation on any terrain.
At the core of the system are ICON 2.5 VS remote reservoir coilovers equipped with CDEV (Compression Damping Electronic Valve) technology and ICON Intelligent Control (IIC). Using onboard sensors, the system continuously monitors chassis movement and terrain input, making near-instant compression damping adjustments at each shock. Once configured through the IIC mobile app, the system operates automatically without driver input.
This Heavy Rate configuration features progressive dual-rate rear coil springs, billet adjustable rear links, and an adjustable rear track bar—making it ideal for Broncos running spare tire carriers, armor, overland gear, or frequent rear cargo loads.
✔ ICON’s top-tier electronically controlled Bronco suspension
✔ Active damping with CDEV & ICON Intelligent Control
✔ Heavy Rate rear springs for added load capacity
✔ Full billet rear link and track bar system
✔ Bolt-on installation
🛠 Installation
- Direct bolt-on installation using factory mounting points. No cutting or welding required. Alignment is required after installation. iOS device required for setup and operation of ICON Intelligent Control.
📌 Specs
- Key Features & Benefits
- ICON 2.5 VS remote reservoir coilovers with CDEV provide active, real-time damping control
- ICON Intelligent Control (IIC) automatically adjusts compression based on terrain and driving conditions
- Adjustable ride height delivers 3–4" front lift and 2–3" rear lift over stock
- Heavy Rate progressive dual-rate rear coil springs support additional rear weight
- Billet aluminum upper control arms with Delta Joint PRO allow caster/camber adjustment

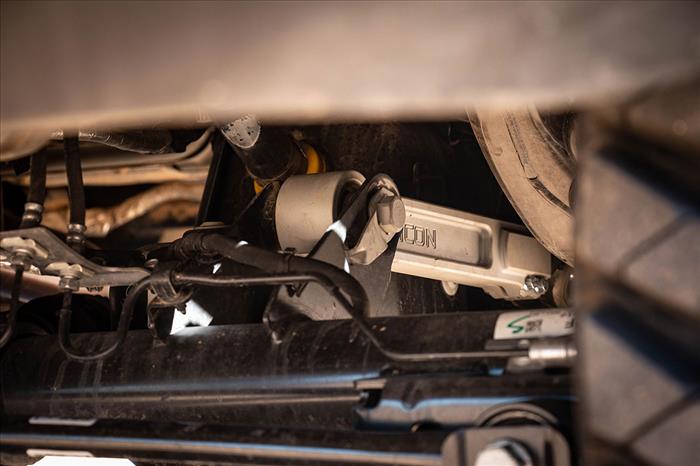

- Billet rear upper and lower links improve articulation, pinion angle, and fuel tank clearance
- Adjustable rear track bar allows precise axle centering at any lift height
- Designed for up to 11.5" front and 14" rear wheel travel
- 100% bolt-on system with no cutting or welding required
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 8 Active Suspension System
- Lift Height (Front): 3–4 inches
- Lift Height (Rear): 2–3 inches
- Vehicle Platform: Ford Bronco
- Model Years: 2021–2023
- Suspension Package: Non-Sasquatch
- Shock Type: 2.5 VS Remote Reservoir w/ CDEV
- Rear Spring Type: Heavy Rate Progressive Dual-Rate
- Control System: ICON Intelligent Control (IIC)
- Installation Type: Bolt-on
📐 Wheel & Tire Fitment
- Recommended Aftermarket Wheels:
- 17x8.5" – 4.75" Backspace / 0mm Offset
- 18x9" – 5.00" Backspace / 0mm Offset
- 20x9" – 5.00" Backspace / 0mm Offset
- Recommended Tire Size:
- 35x12.50 (high-clearance crash bars recommended)
- 37x12.50 (requires coilover bump stop spacers and trimming)

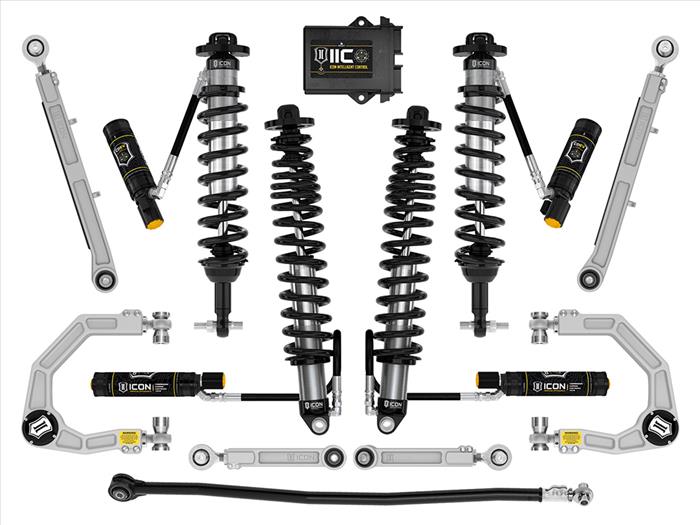

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Remote Reservoir CDEV Front Coilovers
- Billet Aluminum Upper Control Arms w/ Delta Joint PRO
- Rear Components
- 2.5 VS Remote Reservoir CDEV Rear Coilovers (Heavy Rate, shaft-up)
- Heavy Rate progressive dual-rate rear coil springs
- Billet adjustable rear upper links
- Billet adjustable rear lower links
- Adjustable rear track bar
- Electronics
- ICON Intelligent Control (IIC) installation kit
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics. Shocks are fully serviceable, rebuildable, and re-valvable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Non-Sasquatch Equipped – 4-Door Models
⚠️ Fitment Notes
- Designed exclusively for non-Sasquatch Broncos. Requires an iOS device to operate the ICON Intelligent Control (IIC) app. Factory crash bars must be removed to clear 35" and larger tires (ICON high-clearance crash bars available separately). Not compatible with Bronco Raptor. Professional installation and alignment are recommended.
