🧾 Overview
The ICON Stage 8 Suspension System for the 2021–2023 Ford Bronco equipped with the Sasquatch Package is ICON’s most advanced mechanically-controlled suspension package, engineered to deliver maximum performance, articulation, and ride control across any terrain. This system combines ICON’s electronically controlled CDEV remote reservoir coilovers with a full tubular link and track bar solution for unmatched suspension freedom and geometry correction.
At the heart of the system is ICON Intelligent Control (IIC), which actively monitors vehicle movement and terrain inputs to make near-instant compression damping adjustments through the Compression Damping Electronic Valve (CDEV) at each shock. Once configured via the IIC mobile app, the system operates automatically—allowing the driver to focus on the trail while the suspension adapts in real time.
Stage 8 also includes tubular upper control arms, complete tubular rear upper and lower links, and an adjustable rear track bar to eliminate bind, improve articulation, correct pinion angle, and optimize rear axle alignment on lifted Sasquatch Broncos.
✔ ICON CDEV electronically controlled coilovers with IIC
✔ Complete tubular link and track bar system
✔ Maximum articulation and geometry correction
✔ Designed specifically for Sasquatch-equipped Broncos
🛠 Installation
- 100% bolt-on installation using factory mounting locations. No cutting, drilling, or welding required. Professional installation and alignment are strongly recommended for optimal performance and system calibration.
📌 Specs
- Key Features & Benefits
- ICON CDEV remote reservoir front and rear coilover shocks with active electronic damping
- ICON Intelligent Control (IIC) system automatically adjusts compression in real time
- Adjustable front lift range: 2–3 inches
- Adjustable rear lift range: 1.25–2.25 inches
- Tubular upper control arms with corrected geometry and Delta Joint PRO
- Complete tubular rear upper and lower link system for improved articulation
- Adjustable rear track bar for precise axle centering
- Triple-rate rear coil springs maximize travel and ride quality
- Fully bolt-on system using factory mounting points
- Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 8 Suspension System
- Vehicle Platform: Ford Bronco (Sasquatch)
- Model Years: 2021–2023
- Front Lift Range: 2–3 inches
- Rear Lift Range: 1.25–2.25 inches
- Front Shocks: 2.5 VS Remote Reservoir CDEV Coilovers
- Rear Shocks: 2.5 VS Remote Reservoir CDEV Coilovers
- Control Arms: Tubular Upper Control Arms
- Rear Links: Tubular Upper & Lower Links
- Track Bar: Adjustable Rear Track Bar
- Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" – 4.75" Backspace / 0mm Offset
- 18x9" – 5.00" Backspace / 0mm Offset
- 20x9" – 5.00" Backspace / 0mm Offset
- Recommended Tire Size:
- 35x12.50
- 37x12.50 (requires bump stop spacers and minor trimming)

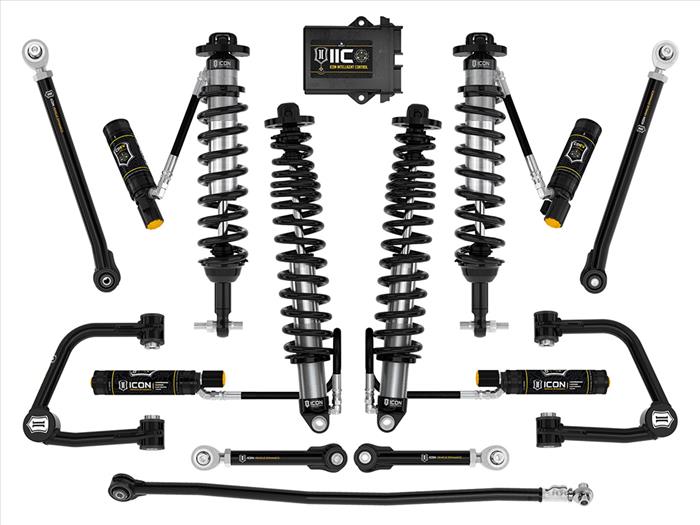

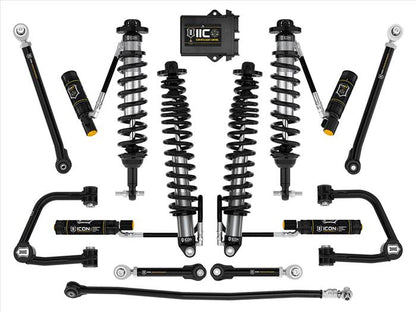

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 VS Remote Reservoir CDEV Front Coilover Kit
- Tubular Upper Control Arms with Delta Joint PRO
- Rear Components
- 2.5 VS Remote Reservoir CDEV Rear Coilover Kit
- Tubular Rear Upper Link Kit
- Tubular Rear Lower Link Kit
- Adjustable Rear Track Bar
- Triple-Rate Rear Coil Springs
- Electronics & Hardware
- ICON Intelligent Control (IIC) Install Kit
- Rear Hose Routing Kit
- All required mounting hardware
🛡 Warranty
- ICON manufacturer-backed warranty. Shocks and electronic components are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (Sasquatch Package)
- Model Years: 2021–2023
⚠️ Fitment Notes
- Designed for Sasquatch-equipped Broncos only
- Not compatible with Bronco Raptor
- iOS device required to operate ICON Intelligent Control (IIC) app
- Professional installation recommended
