🧾 Overview
The ICON Stage 3 Suspension System for the 2021–2023 Ford Bronco (Non-Sasquatch) is built to deliver maximum wheel travel, precise damping, and confident control for aggressive trail use while maintaining daily drivability. Featuring adjustable ICON 2.5 Series internal reservoir coilovers, tubular upper control arms with Delta Joint PRO, and heavy-rate rear coilovers, this system provides 3–4" of front lift and 2–3" of rear lift on 4-door Broncos without the Sasquatch Package.
Designed for larger tires and added vehicle weight, Stage 3 offers balanced geometry, increased articulation, and durable components for Broncos that see hard use and loaded adventures.
✔ Stage 3 performance suspension for Non-Sasquatch Broncos
✔ Adjustable 2.5 Series coilovers (3–4" front / 2–3" rear)
✔ Tubular UCAs with Delta Joint PRO
✔ Heavy-rate rear springs for added load capacity
✔ Increased wheel travel and vehicle control
🛠 Installation
- Direct bolt-on installation using factory mounting locations. No cutting or welding required. Tire-related modifications may be required depending on size. Professional installation and post-install alignment are strongly recommended.
📌 Specs
- Key Features & Benefits
- Vehicle-specific tuned 2.5 Series internal reservoir coilovers
- Up to 11.5" front and 14" rear suspension travel with 35" tires
- Tubular UCAs provide alignment correction and added strength
- Delta Joint PRO allows up to 90° of articulation without bind
- Heavy-rate rear coilovers support added gear and accessories
- Corrosion-resistant CAD-plated shock bodies with 7/8" shafts
- 100% bolt-on system—no drilling, cutting, or welding
📘 Specifications
- Brand: ICON Vehicle Dynamics
- System Type: Stage 3 Suspension System
- Front Lift Height: 3–4 inches (adjustable)
- Rear Lift Height: 2–3 inches (adjustable)
- Shock Type: 2.5 Series internal reservoir coilovers (front & rear)
- Upper Control Arms: Tubular with Delta Joint PRO
- Vehicle Platform: Ford Bronco (Non-Sasquatch)
- Sold As: Complete suspension system
📐 Wheel & Tire Fitment
- OEM Wheels & Tires: Yes
- Recommended Aftermarket Wheels:
- 17x8.5" w/ 5.75" backspacing / 25mm offset
- 18x9" w/ 6.00" backspacing / 25mm offset
- Recommended Tires:
- 35" x 12.50" (high-clearance crash bars recommended)
- 37" tires require up-travel limiters and additional modifications

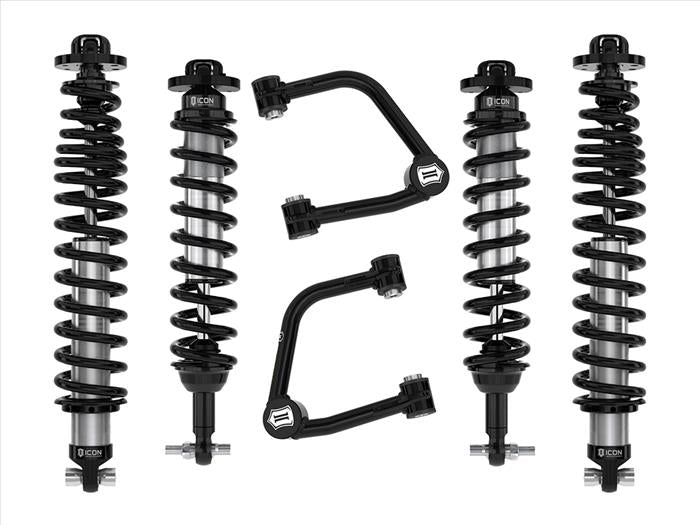

📦 What’s Included (What’s in the Box)
- Front Components
- 2.5 Series internal reservoir front coilover kit (PN 48600)
- Tubular upper control arm kit with Delta Joint PRO (PN 48400DJ)
- Rear Components
- 2.5 Series internal reservoir rear coilover kit with heavy-rate springs (PN 48613)
- Additional
- All required mounting hardware
🛡 Warranty
- Manufacturer-backed warranty provided by ICON Vehicle Dynamics.
- Shocks are fully serviceable and rebuildable.
⚠️ Fitment Notes
- Ford Bronco (2021–2023)
- Non-Sasquatch models
- 4-Door (2-door models will sit taller)
⚠️ Fitment Notes
- Not compatible with Bronco Raptor. Factory crash bars must be removed to clear 35" tires; ICON high-clearance crash bars are recommended. 37" tires require up-travel limiters and additional trimming/modifications. Professional installation and alignment are recommended.
