🧾 Overview

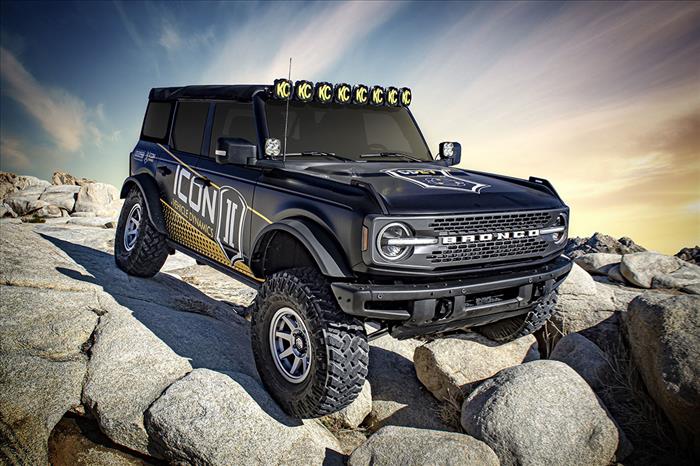

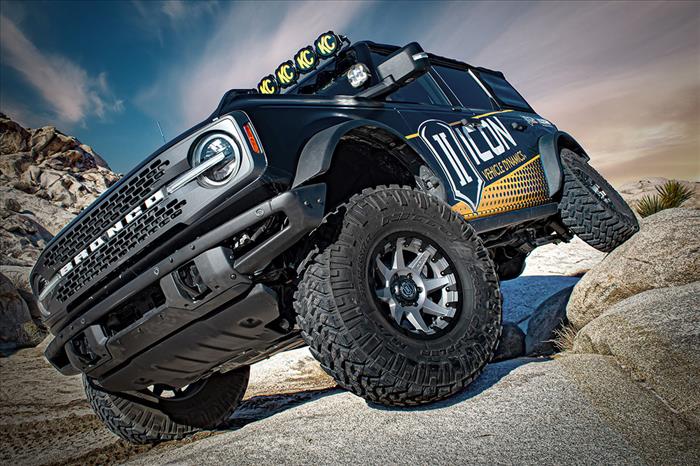

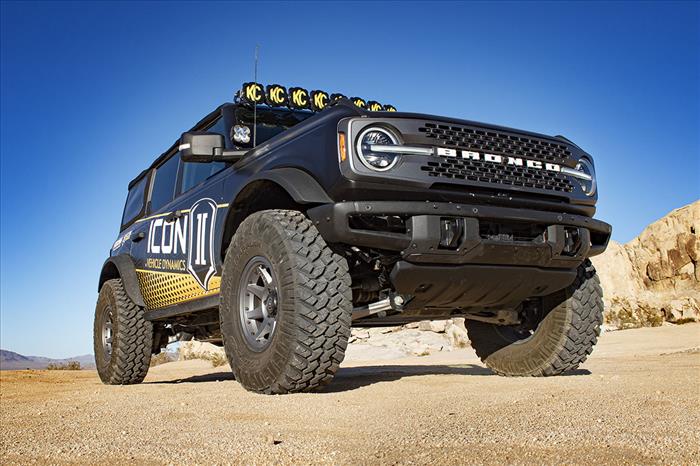

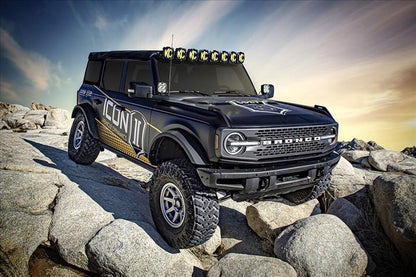

The ICON Vehicle Dynamics Stage 3 Suspension System (Tubular) for 2021–2025 Ford Bronco Sasquatch-equipped models delivers substantial gains in wheel travel, ride quality, and off-road control while retaining excellent on-road manners. This system features vehicle-specific tuned 2.5 VS internal reservoir coilovers front and rear, paired with tubular Upper Control Arms using ICON’s patented Delta Joint PRO for exceptional articulation and caster correction.
Adjustable coilovers provide 2–3” of front lift and 1.25–2.25” of rear lift over stock 4-door Sasquatch Broncos, enabling up to 11.5” of front travel and 14” of rear travel with 35x12.50 tires. The rear shocks are shaft-up and use unique triple-rate rear coils to maximize travel and comfort. With optional up-travel limiters (sold separately), the system can safely run 37” tires.
✔ Major performance upgrade over stock
✔ Adjustable lift with significant travel gains
✔ Tubular UCAs with Delta Joint PRO articulation
✔ 100% bolt-on—no cutting or welding
🛠 Installation
- 100% bolt-on installation
- No drilling, cutting, or welding required
- Tubular UCAs provide caster correction
- Professional installation and alignment recommended
📌 Specs
- What’s Included (Stage 3 – Tubular)
- Adjustable coilovers yield 2–3” front / 1.25–2.25” rear lift (4-door Sasquatch)
- Up to 11.5” front / 14” rear wheel travel with 35” tires
- Vehicle-specific tuned internal reservoir shocks for superior damping
- Delta Joint PRO UCAs allow up to 90° of total articulation
- CNC-machined 6061 aircraft-grade aluminum components
- Fully serviceable shocks for long-term ownership
📌 Technical Highlights
- Coilovers: 2.5 VS Internal Reservoir (front & rear)
- Shaft Diameter: 7/8”
- Materials: 6061 aircraft-grade aluminum; CAD-plated shock bodies
- Rear Springs: ICON triple-rate coil design (shaft-up orientation)
- Lower Bar Pins: High-strength alloy, CNC machined
📌 Wheel & Tire Guidance
- OEM wheels/tires: Yes
- Recommended wheels:
- ICON Alloys 17x8.5” (4.75” BS / 0mm)
- ICON Alloys 18x9” (5.00” BS / 0mm)
- ICON Alloys 20x9” (5.00” BS / 0mm)
- Recommended tires: 35x12.50
- 37” tires: Require up-travel limiters (Front #611075, Rear #611074) and minor trimming

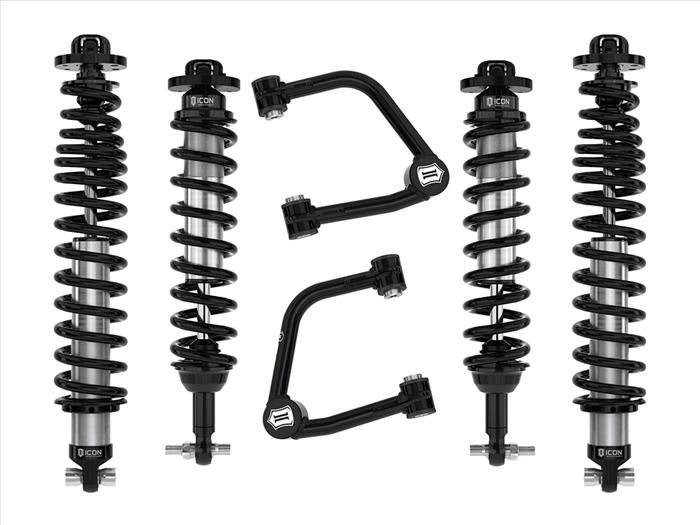

- What’s Included (Stage 3 – Tubular)
- Front 2.5 VS Internal Reservoir Coilover Kit (48600)
- Rear 2.5 VS Internal Reservoir Coilover Kit (48610)
- Tubular Upper Control Arm Kit w/ Delta Joint PRO (48400DJ)
- ICON engineered coil springs (triple-rate rear)
- Application-specific mounting hardware
⚠️ Fitment Notes
- Ford Bronco Sasquatch Package 2021–present
- Important Notes:
- Lift heights and notes based on Sasquatch-equipped vehicles
- 2-door models sit taller than 4-door models
- Everglades: Front lift range 1.5–2.5”
- Not compatible with Bronco Raptor
- Triple-rate rear coils optimized for near-stock rear weight; heavier builds may require K40013TX
- Fitment validated with ICON & OE steering; some aftermarket steering components may not clear front coilovers
