🧾 Overview

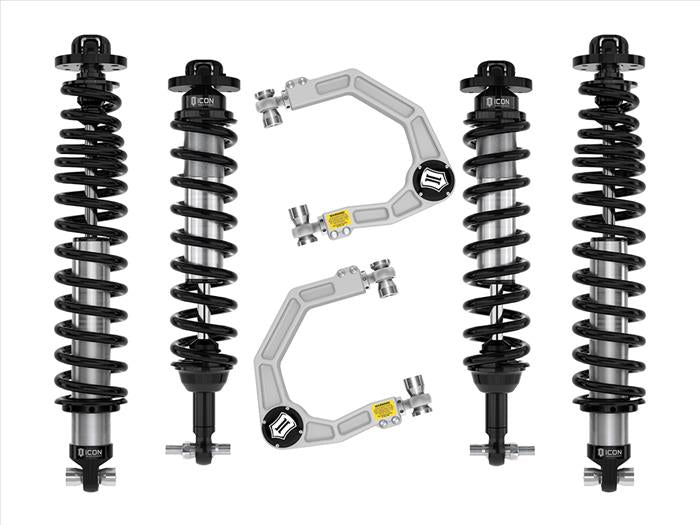

The ICON Vehicle Dynamics Stage 3 Suspension System for 2021–2025 Ford Bronco Sasquatch-equipped models is a premium, bolt-on upgrade engineered to deliver maximum suspension travel, superior ride quality, and precise vehicle control on- and off-road. This system features vehicle-specific tuned internal reservoir coilovers front and rear, paired with billet aluminum Upper Control Arms equipped with ICON’s patented Delta Joint PRO for exceptional articulation and on-vehicle alignment adjustment.
Adjustable coilovers provide 2–3” of front lift and 1.25–2.25” of rear lift over stock 4-door Sasquatch Broncos, enabling up to 11.5” of front travel and 14” of rear travel with 35” tires. The rear utilizes triple-rate coil springs oriented shaft-up to maximize travel and comfort. With optional up-travel limiters (sold separately), this system can safely support 37” tires. Built from 6061 aircraft-grade aluminum and corrosion-resistant finishes, Stage 3 is designed for durability, performance, and serviceability.
✔ Significant ride quality and control improvement over stock
✔ Adjustable lift with massive travel gains
✔ Billet UCAs with Delta Joint PRO articulation
✔ 100% bolt-on—no cutting or welding
🛠 Installation
- 100% bolt-on installation
- No drilling, cutting, or welding required
- On-vehicle caster/camber adjustment via billet UCAs
- Professional installation and alignment recommended
📌 Specs
- Adjustable coilovers yield 2–3” front / 1.25–2.25” rear lift (4-door Sasquatch)
- Up to 11.5” front / 14” rear wheel travel with 35” tires
- Vehicle-specific tuned internal reservoir shocks for balanced damping
- Delta Joint PRO UCAs allow up to 90° of total articulation
- CNC-machined 6061 aluminum components with corrosion-resistant finishes
- Fully serviceable shocks for long-term ownership
📌 Technical Highlights
- Coilovers: 2.5 VS Internal Reservoir (front & rear)
- Shaft Diameter: 7/8”
- Materials: 6061 aircraft-grade aluminum, CAD-plated shock bodies
- Rear Springs: ICON triple-rate coil design (shaft-up orientation)
- Lower Bar Pins: High-strength alloy, CNC machined
📌 Wheel & Tire Guidance
- OEM wheels/tires: Not compatible
- Recommended wheels:
- ICON Alloys 17x8.5” (4.75” BS / 0mm)
- ICON Alloys 18x9” (5.00” BS / 0mm)
- ICON Alloys 20x9” (5.00” BS / 0mm)
- Recommended tires: 35x12.50
- 37” tires: Require up-travel limiters (Front #611075, Rear #611074) and minor trimming
- What’s Included (Stage 3 Package)
- Front 2.5 VS Internal Reservoir Coilover Kit (48600)
- Rear 2.5 VS Internal Reservoir Coilover Kit (48610)
- Billet Aluminum Upper Control Arm Kit w/ Delta Joint PRO (48500DJ)
- ICON engineered coil springs (triple-rate rear)
- Application-specific mounting hardware
⚠️ Fitment Notes
- Ford Bronco 2021–present Sasquatch Package
- Important Notes:
- Lift heights based on Sasquatch-equipped vehicles
- 2-door models sit taller than 4-door models
- Everglades: Front lift range 1.5–2.5”
- Not compatible with Bronco Raptor
- Triple-rate rear coils optimized for near-stock rear weight; heavier builds may require K40013X
- Fitment validated with ICON & OE steering; some aftermarket steering components may not clear coilovers
