🧾 Overview

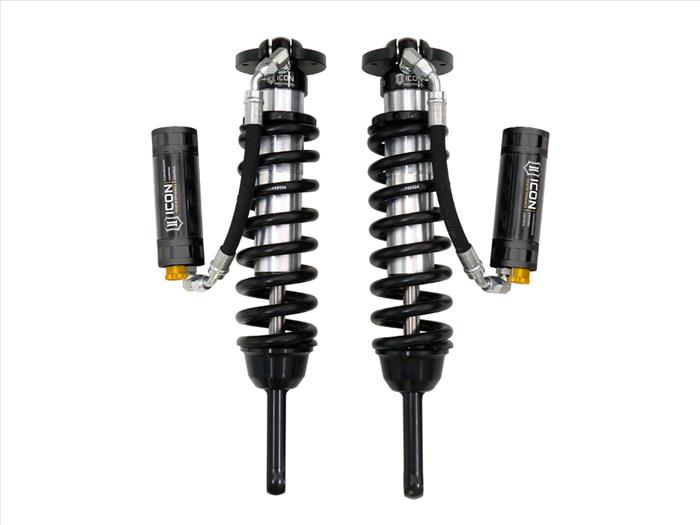

The ICON Vehicle Dynamics V.S. 2.5 Extended Travel Remote Reservoir Front Coilover Kit with CDCV is designed for 2005–2023 Toyota Tacoma owners who want maximum front suspension travel and tunability. Built with extended-length coilovers, this system increases wheel travel beyond standard configurations while maintaining ICON’s vehicle-specific valving for controlled on-road manners and superior off-road performance.
A 2.5″ shock body, remote reservoirs, and Compression Damping Control Valves (CDCV) provide increased oil volume, improved heat dissipation, and precise compression tuning across varying terrain. Due to the extended travel length, aftermarket front upper control arms are required to maintain proper geometry and safe operation.
✔ Extended travel for increased wheel articulation
✔ Adjustable front lift with vehicle-specific tuning
✔ Remote reservoirs for cooling and fade resistance
✔ CDCV allows precise compression adjustment
🛠 Installation
- Direct bolt-on replacement for factory front struts
- Aftermarket front upper control arms required
- Includes sway bar relocation brackets
- Includes reservoir mounting brackets for optimal tire clearance
- No welding required
- Professional installation and alignment recommended
📌 Specs
- Position: Front
- Series: ICON V.S. 2.5 — Extended Travel
- Shock Type: Height-adjustable coilover with remote reservoir
- Shock Body Diameter: 2.5″
- Lift Adjustment Range:
- 2005–2015 Tacoma: 0–3.5″
- 2016–2023 Tacoma: 0–2.75″
- Upper Mount: Billet aluminum
- Bearings: 5/8″ PTFE-lined spherical bearings
- Threaded Body: CAD-plated
- Springs: ICON engineered coil springs
- Reservoirs: External, hose-mounted
- Damping Adjustment:
- CDCV with 10 settings of external compression adjustment
- Serviceability: Fully rebuildable
📐 Wheel & Tire Notes
- OEM wheels & tires: Compatible
- Recommended aftermarket wheels:
- 17×8.5 (4.75″ backspace / 0mm offset)
- 18×9 (5.00″ backspace / 0mm offset)
- 20×9 (5.00″ backspace / 0mm offset)
- Recommended tire size: 33×11.50
- Fender trimming required for recommended tire size
⚠️ Fitment Notes
- 2005–2023 Toyota Tacoma
- Aftermarket front upper control arms required
- Does not fit 2005–2015 2WD 5-lug Tacoma models
- 2017–2023 TRD Pro models limited to 0–1.25″ front lift
- Lift ranges listed are for stock-equipped vehicles
- Optional 700 lb/in expedition coils available for heavily equipped vehicles
